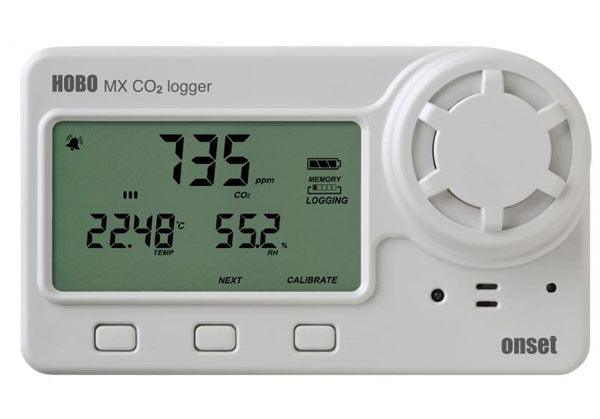

Temp/RH/CO2 Bluetooth Data Logger

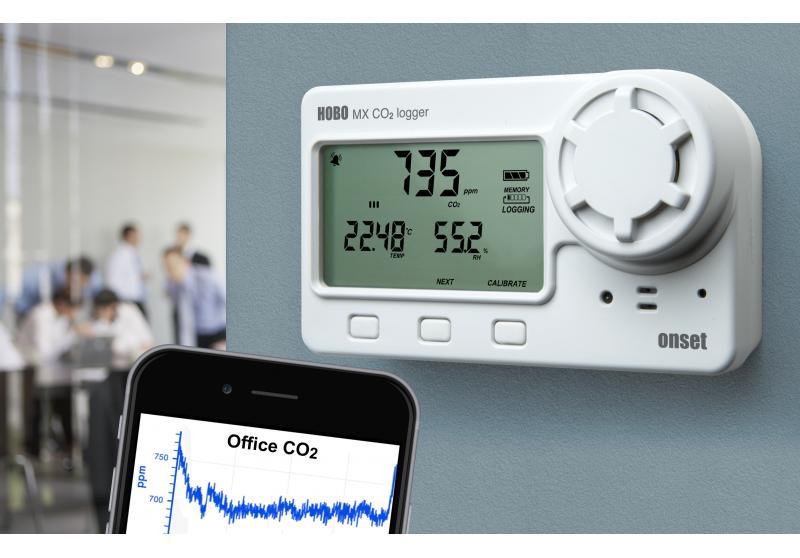

Onset’s HOBO MX1102 CO2 logger makes it more convenient than ever to measure and record CO2 in buildings and other non-condensing environments. It measures CO2 from 0 – 5,000 parts per million (ppm) – and our free HOBOconnect app allows you to access data right from your mobile phone or tablet within a 100-feet range.

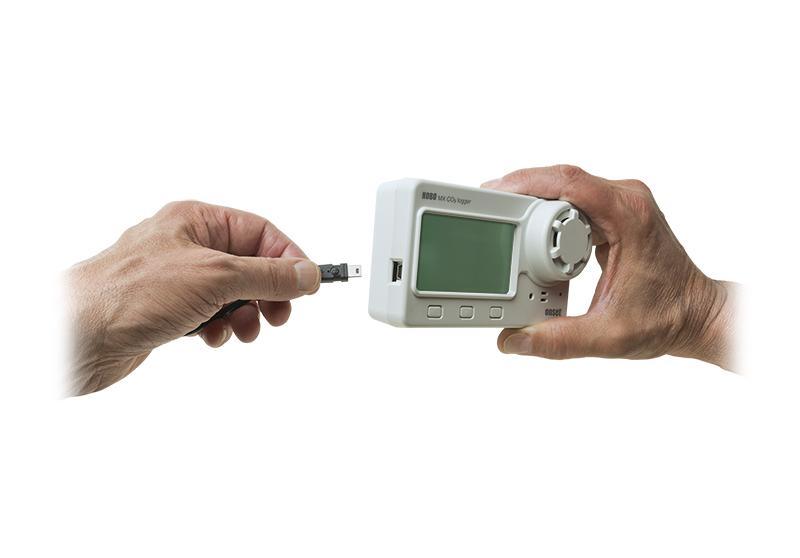

The MX1102 also features a USB port so it can be used with a computer running HOBOware graphing and analysis software.
Documentation
Data SheetUser Manual
Highlighted Features
- Wireless communication via Bluetooth Low Energy (BLE) Technology
- Six-month battery life at a 5-minute CO2 logging rate
- Easy to deploy and offload using the free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Self-calibrating NDIR CO2 sensor technology ensures optimal accuracy and lower maintenance costs
- Patented connectivity technology
Specifications
| Specification | Value |
|---|---|
| Temperature Sensor | |
| Range | 0° to 50°C (32° to 122°F) |
| Accuracy | ±0.21°C from 0° to 50°C (see manual for plot) / ±0.38°F from 32° to 122°F (see manual for plot) |
| Resolution | 0.024°C at 25°C (see manual for plot) / 0.04°F at 77°F (see manual for plot) |
| Drift | <0.1°C per year / 0.18°F per year |
| RH Sensor | |
| Range | 1% to 90% RH (non-condensing) |
| Accuracy | ±2% from 20% to 80% typical (max ±4.5% incl. hysteresis at 25°C/77°F); Below 20% and above 80% ±6% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| CO2 Sensor | |
| Range | 0 to 5,000 ppm |
| Accuracy | ±50 ppm ±5% of reading at 25°C (77°F), less than 90% RH (non-condensing) and 1,013 mbar |
| Warm-up Time | 15 seconds |
| Calibration | Auto or manual to 400 ppm |
| Non-linearity | <1% of FS |
| Pressure Dependence | 0.13% of reading per mm Hg (corrected via user input for elevation/altitude) |
| Operating Pressure Range | 950 to 1,050 mbar (use Altitude Compensation for outside of this range) |
| Compensated Pressure Range | -305 to 5,486 m (-1,000 to 18,000 ft) |
| Sensing Method | Non-dispersive infrared (NDIR) absorption |
| Response Time (Temperature) | 12 minutes to 90% in airflow of 1 m/s / 12 minutes to 90% in airflow of 2.2 mph |
| Response Time (RH) | 1 minute to 90% in airflow of 1 m/s / 1 minute to 90% in airflow of 2.2 mph |
| Response Time (CO2) | 1 minute to 90% in airflow of 1 m/s / 1 minute to 90% in airflow of 2.2 mph |
| Logger | |
| Radio Power | 1 mW / 0 dBm |
| Transmission Range | Approximately 30.5 m line-of-sight / Approximately 100 ft line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logger Operating Range | 0° to 50°C, 0 to 95% RH (non-condensing) / 32° to 122°F, 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | Memory full, push button, date & time, or set logging period |
| Time Accuracy | ±1 minute per month at 25°C/77°F |
| Power Source | 4 AA 1.5 Volt batteries (user replaceable) or USB power source (5 V DC, 2 Watts) |
| Battery Life | 6 months (conditions apply) |
| Memory | 128 KB (84,650 measurements, max) |
| Download Type | USB 2.0 interface or via Bluetooth Smart |
| Full Memory Download Time | 20 seconds via USB; approx. 60 seconds via Bluetooth Smart (depends on device distance from logger) |
| LCD | Visible from 0° to 50°C (32° to 122°F); may react slowly or go blank outside this range |
| Size | 7.62 x 12.95 x 4.78 cm / 3.0 x 5.1 x 1.88 inches |
| Weight | 267.4 g / 9.43 oz |
| Environmental Rating | IP50 |
Applications
In what environment does this data logger operate?
This data logger operates in an indoor environment.
What measurements does this data logger support?
The MX1102A data logger supports the following measurements: Carbon Dioxide, Relative Humidity, and Temperature
