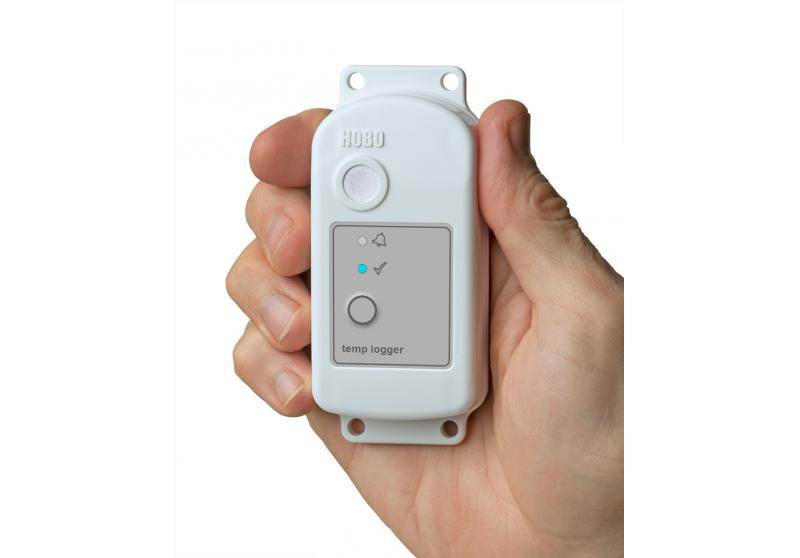

The HOBO MX2305 is a weatherproof data logger with an internal temperature sensor. Leveraging Bluetooth Low Energy, the logger enables easy, fast set up and data download directly from your mobile device and provides high-accuracy measurements in harsh outdoor environments.
Documentation
Data SheetUser Manual
Highlighted Features
- Convenient wireless setup and download via Bluetooth (100-foot range)
- Retrieve data in hard-to-reach locations
- Visual alarms alert you to out-of-range conditions
- Compact, weatherproof housing with built-in mounting
- View current data in real-time with Onset’s free HOBOconnect app
- Share downloaded data easily from your mobile device
- Accuracy: +/- 0.2C°
Specifications
| Feature | Specification |
|---|---|
| Temperature Sensor | |
| Range | -40 to 70°C (-40 to 158°F) |
| Accuracy | ±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F) |
| ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F) | |
| Resolution | 0.04°C (0.072°F) |
| Drift | <0.01°C (0.018°F) per year |
| Response Time (typical, to 90% of change) | |
| Without Solar Radiation Shield | 17 minutes in air moving 1 m/sec |
| With RS1/M-RSA Solar Radiation Shield | 24 minutes in air moving 1 m/sec |
| Logger | |
| Operating Range | -40° to 70°C (-40° to 158°F) |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Memory | 128 KB (84,650 measurements, maximum) |
| Battery Type | 2/3 AA 3.6 Volt lithium, user replaceable |
| Battery Life | 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. |
| Physical | |
| Dimensions | Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.) |
| Weight | Logger: 75.5 g (2.66 oz) |
| Materials | Acetal, silicone gasket, stainless steel screws |
| Environmental Rating | NEMA 6 and IP67 |
Applications
In what environment does this data logger operate?
This data logger operates in an outdoor environment.
What measurements does this data logger support?
The MX2305 data logger supports the following measurement: Temperature
