No Shedding DC UPS
5v-9v (Battery Included) - SA Only
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

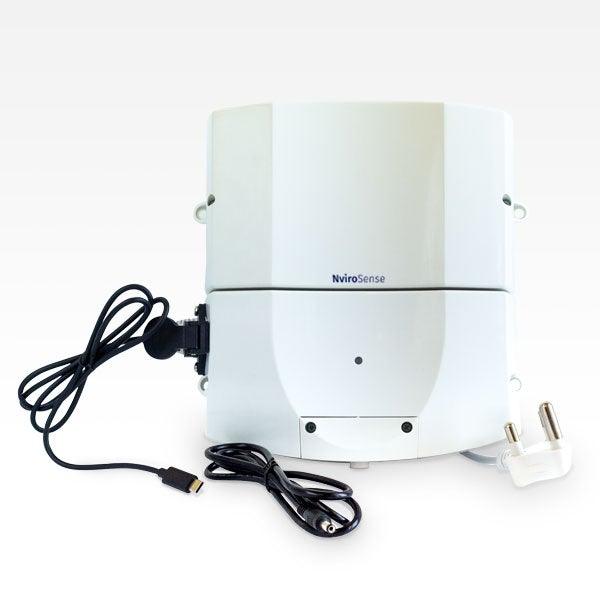

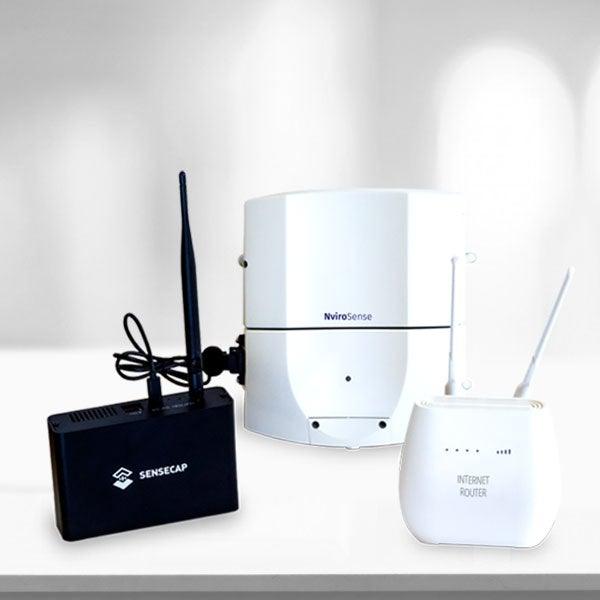

NviroSense's NS-UPS-100 or the NO Shedding DC UPS is an efficient, compact, and reliable uninterruptible power supply, available with a VRLA GEL technology battery with its proprietary grid alloy and paste formulation, provides superior performance in both high cycling and floating applications. Designed specifically to keep your gateway connected at all times. A small but rugged form factor contains superior performance and flexibility.
Available in the following options:
- 5v-9v (Battery Included) - South Africa Only (Part No. NS-UPS100-95)
- 5v-12v (Battery Included) - South Africa Only (Part No. NS-UPS100-125)
- 9v - 12v (Battery Included) - South Africa Only (Part No. NS-UPS100-129)
- 5v-9v - 12v (Battery not included) - Europe, UAE (Part No. NS-UPS100-95-INT)
- 5v-12v (Battery not included) - Europe, UAE (Part No. NS-UPS100-125-INT)
- 9v - 12v (Battery not included) - Europe, UAE (Part No. NS-UPS100-129-INT)
Highlighted Features
-
Low power consumption, high reliability.
-
100% full load burn-in test.
-
An audible tone for mains fails that can be enabled or disabled through a link.
-
AC Failure.
-
Battery protection circuit built-in.
-
Battery charger with intelligent switch-mode charging processed by a processor
Maintenance & Caution
- Ensure all batteries operating in a series-based connection are not discharged excessively.;
- Batteries must be charged with the correct voltage;
- Recharge capacity will be 1.1 - 1.15 times the discharge capacity;
- Effect of temperature on cycle charge voltage: -5mV/degrees per cell;
- It is imperative the battery is always in an upright position and never on its side.
Factors Affecting Battery Life
- Depth of discharge
- Temperature
- Recharge rate
- Refer to Technical Specifications*
KEY SPECIFICATIONS
PHYSICAL ATTRIBUTES |
|
|
Enclosure |
High-grade industrial plastic |
|
Cold Start |
lSA/llSVac, 30A/230Vac |
|
Protection |
Overload Protection: Over Voltage Protection: |
|
Power Consumption |
Low |
|
Battery |
5V, 12V, with 9V on request |
|
Voltage |
Output: 5V (available), 9V (on request), 12V |
|
Input: 220v |
|
|
Charger |
Intelligent switch-mode charging processed by the processor |
|
Run Time Without Electricity |
4+ hours *dependent on load |
|
Max Load |
4 Amp |
|
Charging Current |
1 Amp |
|
LED |
Red/Green |
|
Audible Tones |
Power Up: Continuous beep for 3 seconds |
|
Power Failure: Beeps every 30 seconds |
|
|
Battery Cut-off: 30 seconds WARNING beep before the unit cuts off the battery voltage |
|
|
Environmental |
Discharge: -15-50°C Charge: -15-40°C Storage: -15-40°C |
|
Regulatory |
Complies with EN55022, EN61000-3-2, 3, EN55024, SANS IEC60950 |
|
Warranty |
One-year |
BATTERY ATTRIBUTES |
|
|
Battery Dimensions |
L 151mm x W 65mm x H 99mm |
|
Approximate Weight |
2.4 kg (5.29 lbs) |
|
Nominal Voltage |
12 (6 Cells per unit) |
|
Designed Floating Life (20°C) |
10 Years |
|
Nominal Capacity (20°C) |
8 Ah @ 20HR-rate (to 1.75Vpc) |
|
Terminal Type |
Fasten Tab F1 |
|
Internal Resistance |
Approximately 0.02mΩ (fully charged @ 20°C) |
|
Max. Charge Current |
2.4A |
|
Max. Discharge Current (5S) |
105A |
|
Short Circuit Current |
600A |
|
Self Discharge |
Approximately 3% per month @ 20°C |
|
Ambient Temperature |
Discharge: -15-50°C Charge: -15-40°C Storage: -15-40°C |
|
Float Charge Voltage (20 - 25°C) |
13.6-13.8V (-3mV/ cell/ °C) |
|
Equalize & Cycle Use Charge Voltage (20 -25°C) |
14.4-14.8V (-5mV/ cell/ °C) |
|
Container Material |
ABS (UL94-V0 optional) |
UPS OPERATION |
|
|
Caution |
Read the instructions carefully before installing the UPS. Use this equipment only in an indoor application. Mounting, Maintenance, and repair must be carried out by a skilled and authorized person and always ensure the mains are off when wiring this unit. |
|

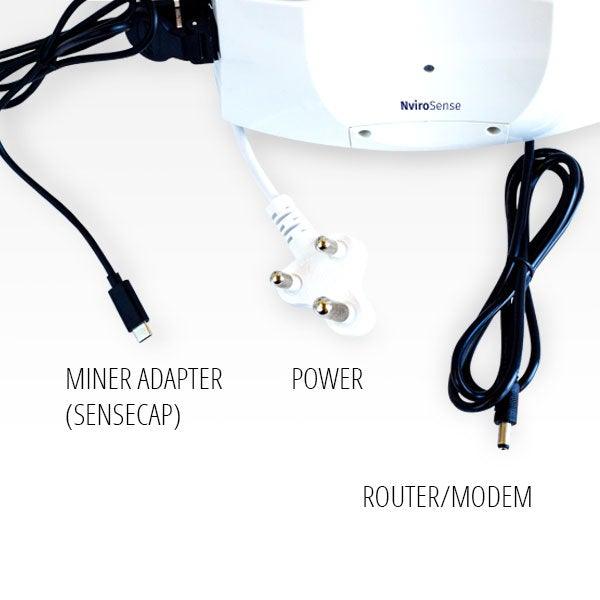

Connecting |
Disconnect the mains before wiring up the equipment to the unit. Before connecting the battery, plug the unit into the mains, the unit will generate a small amount of heat so ensure the unit is installed in an area with sufficient ventilation. This unit should not be installed outdoors as it is not weather resistant. |
|
Audible Tone |
Power Up: Continuous beep for 3 seconds |
|
Power Failure: Beeps every 30 seconds |
|
|
Battery Cut Off: 30 seconds WARNING beep before the unit cuts off the battery voltage. |
|
|
LED Indication |
Red, Green, Buzzer, No Buzzer |
|
Battery Charging |
GREEN LED FLASH |
|
Battery Fully Charged |
GREEN LED |
|
No Mains - Battery Voltage OK |
RED LED FLASHING - BUZZER ON |
|
No Mains - Battery Voltage Below 10.5V |
RED LED FLASHING - BUZZER ON |
