NviroSense
NSS610 LoRaWAN Outdoor Flow Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
NSS610 LoRaWAN Outdoor Flow Sensor
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

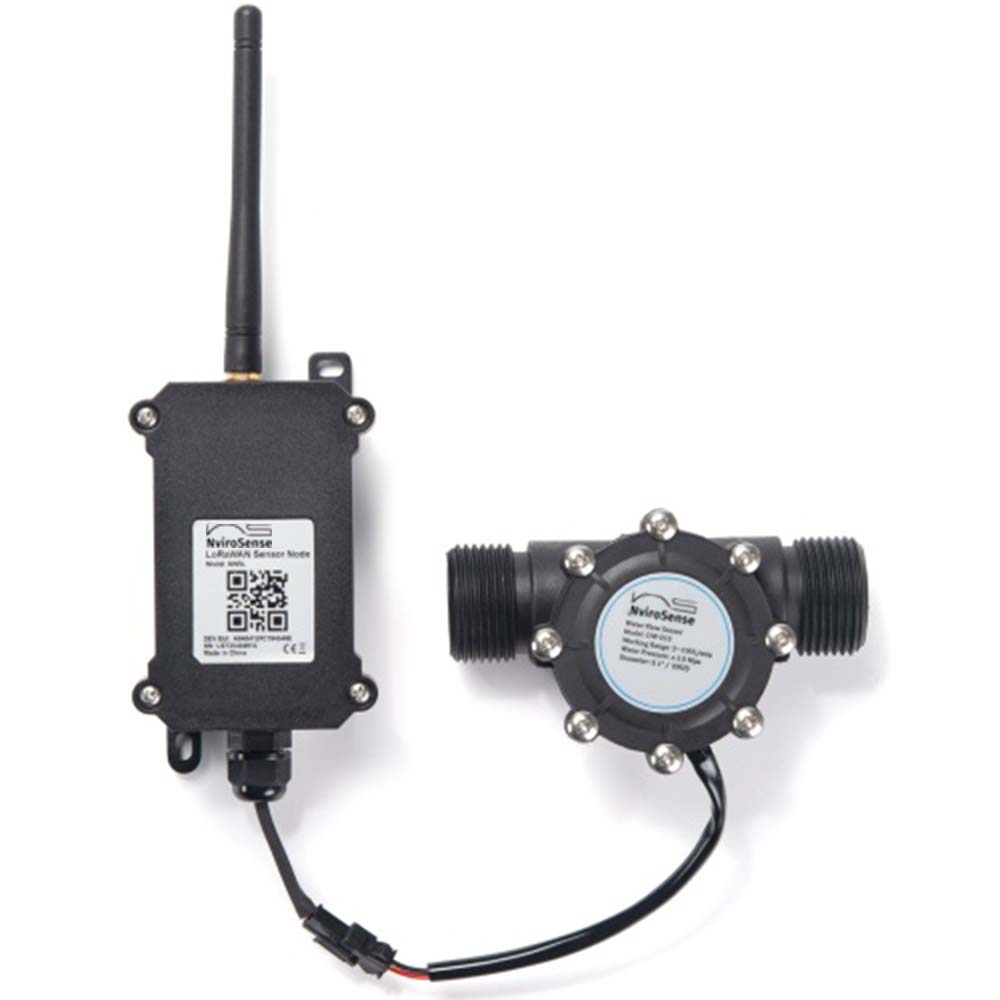

The NviroSense NSS610 is a LoRaWAN Flow Sensor. It detects water flow volume and uplinks to the IoT server via the LoRaWAN network. Users can use this to monitor the water usage for buildings.
The NSS610 is powered by an 8500mAh Li-SOCI2 battery, and it is designed for long-term use up to 10 years. (Actually, the battery life depends on the use environment, and update period.)
The NSS610 will send water flow volume every 20 minutes. It can also detect the water flow status and send an alarm to avoid waste for water usage, such as a broken toilet case.
The NSS610 is designed for both indoor and outdoor use. It has a weatherproof enclosure and an industrial-level battery to work in low to high temperatures.
Each NSS610 is pre-loaded with a set of unique keys for LoRaWAN registration. Register these keys to the LoRaWAN server, and it will auto-connect after powering on.
Highlighted Features
- LoRaWAN v1.0.3 Class A protocol
- Upload water flow volume
- Monitor water waste
- 8500mAh industrial battery(non-rechargeable)
- AT Commands to change parameters
- Uplink on periodically and open/close event
- Datalog feature
- Remotely configure parameters via LoRa Downlink
- Firmware upgradable via program port
- Wall Mountable
- Outdoor Use
Specifications
| Specification | Description |
|---|---|
| Network Protocol | LoRaWAN v1.0.3 Class A |
| Battery Type | 8500mAh Li-SOCl2 Industrial Battery (non-rechargeable) |
| Battery Life | Up to 10 years (depends on use environment and update period) |
| Data Uplink Period | Every 20 minutes |
| Alarm Features | Detects water flow status and sends alarms |
| Use Case | Indoor and Outdoor |
| Weatherproof | Yes |
| Temperature Range | Low to High (not specified) |
| Unique Keys | Pre-loaded for LoRaWAN registration |
| Command Interface | AT Commands |
| Event-based Uplink | Open/Close events |
| Data Logging | Datalog feature |
| Remote Configuration | Via LoRa Downlink |
| Firmware Upgrade | Via program port |
| Mounting | Wall Mountable |
| Applications | Water Control, Toilet Flow Sensor, Monitor Wastewater |
Applications
- Flow Sensor application
- Water Control
- Toilet Flow Sensor
- Monitor Wastewater
