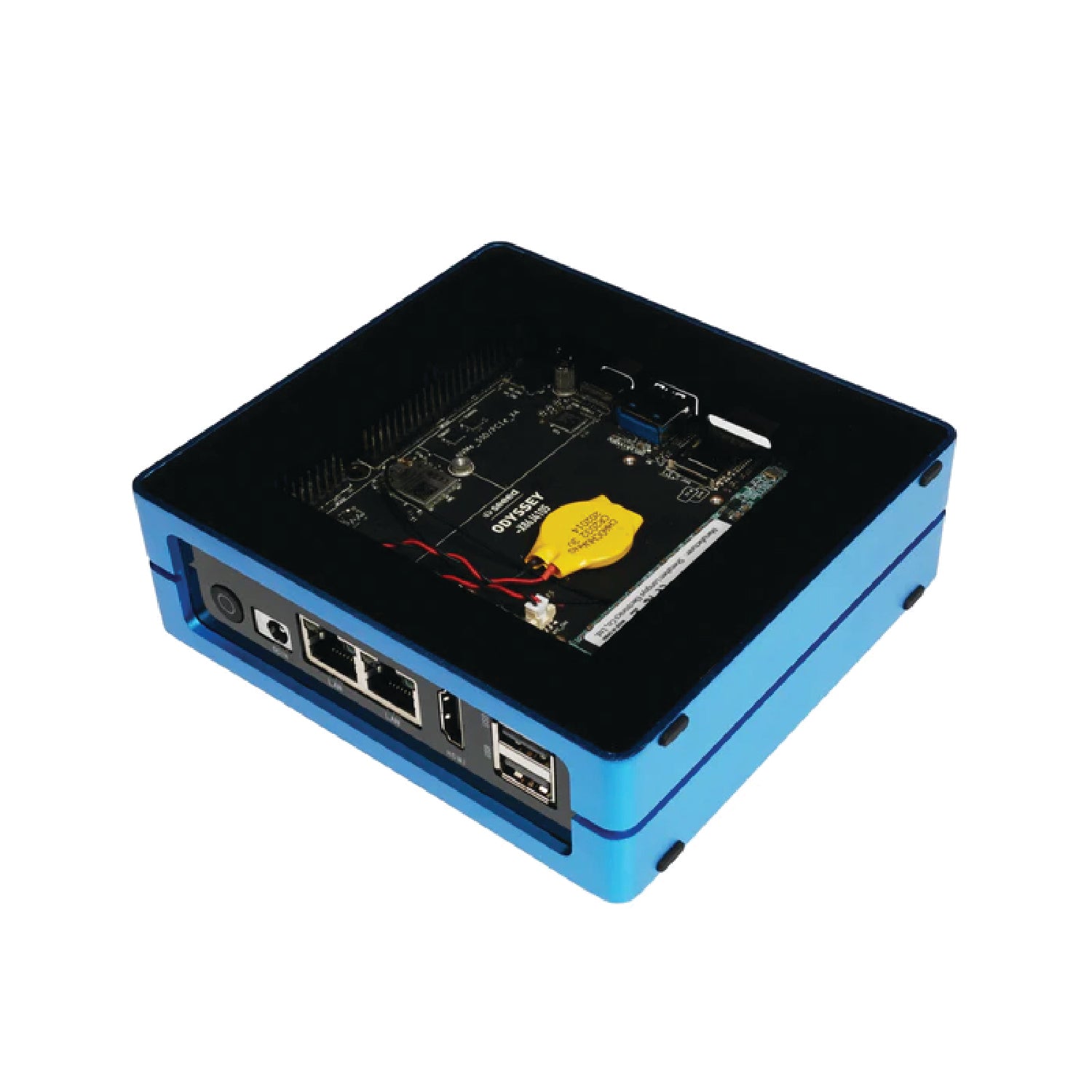

The NviroSense Main Frame 1 is a powerful mini PC with super low power consumption and is suitable for industrial and commercial applications. The compact design makes it easy to keep your application clean, neat, and unobtrusive. The NviroSense Main Frame 1 is more than just a computer; with the Arduino Co-processor onboard, it can be used to connect with sensors, a gyroscope, and much more.
View Cloud Based Network Server
Documentation
Data sheet
Highlighted Features
- Intel® Celeron® J4105, Quad-Core 1.5-2.5GHZ
- Dual-Band Frequency 2.4GHz/5GHz Wi-Fi
- Intel® UHD Graphics 600
- Dual Gigabit Ethernet
- Integrated Arduino Coprocessor ATSAMD21 ARM® Cortex®-M0+
- Raspberry Pi 40-Pin Compatible
- 2 x M.2 PCIe (B Key and M Key)
- Support Windows 10 & Linux OS
- Compatible with Grove Ecosystem
- No onboard eMMC but equipped with 128g SSD
- Packed with re_computer case
- Pre-installed Windows 10 (Unactivated)
Applications
- A powerful Desktop Mini PC that can run Windows and Linux OS.
- OpenWrt projects and pfSense with Dual Gigabit Ethernet.
- Hard Drives, SSD, GPU, 4G, and even 5G cellular network connectivity with two of M.2 PCIe (B Key and M Key)
- NAS (Network-Attached Storage)
- High-performance Virtual Router
- 4G LTE Gateway
- Program Arduino with onboard ATSAMD21 Core, an ARM Cortex-M0+ MCU
Specifications
| Category | Specification |
|---|---|
| Components | NS Main Frame 1 128GB |
| Processor | Intel® Celeron® J4105 (Frequency: 1.5 - 2.5GHz) |
| Coprocessor | Microchip® ATSAMD21G18 32-Bit ARM® Cortex® M0+ |
| Graphics | Intel® UHD Graphics 600 (Frequency: 250 – 750MHz) |
| Memory | LPDDR4 8GB |
| Storage | External 128GB SSD |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160 |
| Networking | Intel® I211AT PCIe Gigabit LAN, Supports Wake-On-LAN, Supports PXE |
| Audio | Microphone + headphone Combo Connector |
| USB | USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1 |
| Video Interfaces | HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a: Up to 4096x2160 @ 60Hz 24bpp |
| Expansion Slots | M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III |
| TPM | Built-in TPM (2.0) |
| Power | DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC |
| Dimensions | 130x120x50mm |
| Certifications | FCC, CE, TELEC |
