NSB110 Circuit Breaker & Power Meter

Sale priceR 0.00
SKU: NSB110

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Select Phase:Single Phase
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

NSB110 Circuit Breaker & Power Meter

Single Phase

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

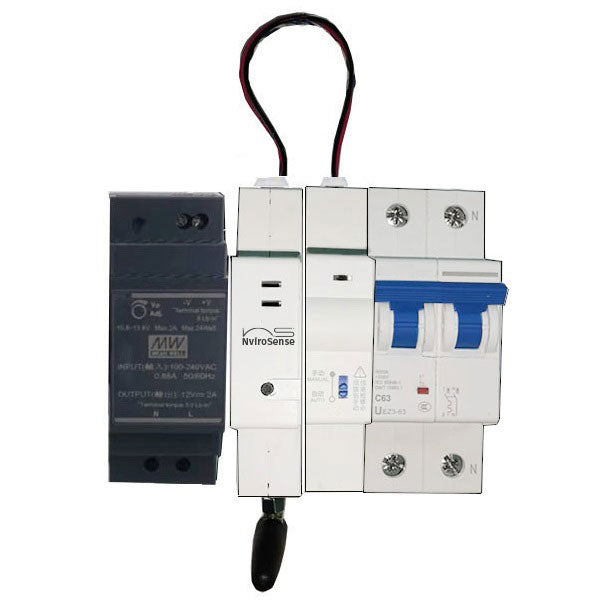

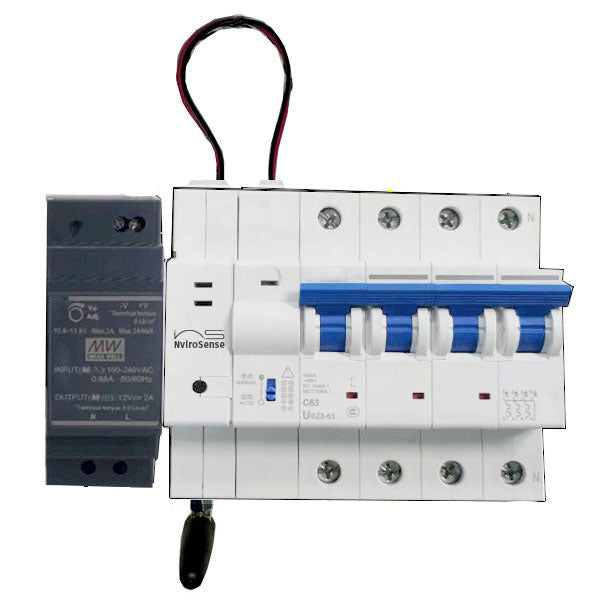

Elevate your electrical safety and management with this Nvirosense Series, known as the NSB110 for single-phase models and the NSB310 for three-phase models. These state-of-the-art smart Miniature Circuit Breakers (MCBs) enable real-time monitoring and control of electrical circuits. Utilizing the LoRaWAN Class C open protocol.

Advanced features like real-time circuit breaker status monitoring, leak detection, and automatic alarms for electrical abnormalities put the Nvirosense Series at the cutting edge of electrical safety.

Documentation

Data sheet



Highlighted Features

  • LoRaWAN Class C: For real-time monitoring and seamless integration.
  • Dual Voltage: AC 230V (NSB110) & AC 400V (NSB310).
  • 63A Rated Current: Across all models.
  • 6kA Breaking Capacity: For high short-circuit protection.
  • RS485 & Modbus-RTU: Robust communication interfaces.
  • Advanced Alarms: Overload, Overvoltage, etc. Optional leak detection.
  • Multi-Protection: Short circuit, Overcurrent, Overvoltage, and more.
  • DC 12V Supply: <100mA operation current.
  • High Durability: 10,000 mechanical and 6,000 electrical life cycles.

Specifications

Feature/Model NSB110 (RP02RH1PN063) NSB110 with Leak Detection (RP02RH1PNLB063) NSB310 (RP02RH3PN063) NSB310 with Leak Detection (RP02RH3PNLB063)
Communication Protocol LoRaWAN Class C LoRaWAN Class C LoRaWAN Class C LoRaWAN Class C
Rated Voltage AC 230V AC 230V AC 400V AC 400V
Rated Current 63A 63A 63A 63A
Breaking Capacity 6kA 6kA 6kA 6kA
Mechanical Life 10,000 times 10,000 times 10,000 times 10,000 times
Electrical Life 6,000 times 6,000 times 6,000 times 6,000 times
Communication Interface RS485, Modbus-RTU RS485, Modbus-RTU RS485, Modbus-RTU RS485, Modbus-RTU
Alarm Functions Overload, Overvoltage, Undervoltage, Temperature, Overpower Leakage, Overload, Overvoltage, Undervoltage, Temperature, Overpower Overload, Overvoltage, Undervoltage, Temperature, Overpower Leakage, Overload, Overvoltage, Undervoltage, Temperature, Overpower
Protective Functions Short circuit, Overcurrent, Overvoltage, Undervoltage, Over temperature, Overpower Leakage, Short circuit, Overcurrent, Overvoltage, Undervoltage, Over temperature, Overpower Short circuit, Overcurrent, Overvoltage, Undervoltage, Over temperature, Overpower Leakage, Short circuit, Overcurrent, Overvoltage, Undervoltage, Over temperature, Overpower
Leak Detection No Yes No Yes
Power Supply DC 12V DC 12V DC 12V DC 12V
Operation Current <100mA <100mA <100mA <100mA
Frequency Range 863MHz-928MHz, 470MHz-510MHz 863MHz-928MHz, 470MHz-510MHz 863MHz-928MHz, 470MHz-510MHz 863MHz-928MHz, 470MHz-510MHz
TX Power US915 20dbm, EU868 16dbm, etc. US915 20dbm, EU868 16dbm, etc. US915 20dbm, EU868 16dbm, etc. US915 20dbm, EU868 16dbm, etc.



Applications

The Nvirosense Series circuit breakers are exceptionally versatile and can be employed in a variety of settings. Whether it's educational institutions like schools, commercial spaces like shopping malls and supermarkets, or any other environment requiring robust electrical monitoring and safety measures, these smart circuit breakers are designed to seamlessly integrate and provide real-time data and protection.

Their broad applicability makes them a go-to choice for diverse electrical management needs.
