NviroSense

NSEG15 - NS Energy Gauge - 15 Channel

Sale priceR 0.00
SKU: NSEG15

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

NSEG15 - NS Energy Gauge - 15 Channel

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

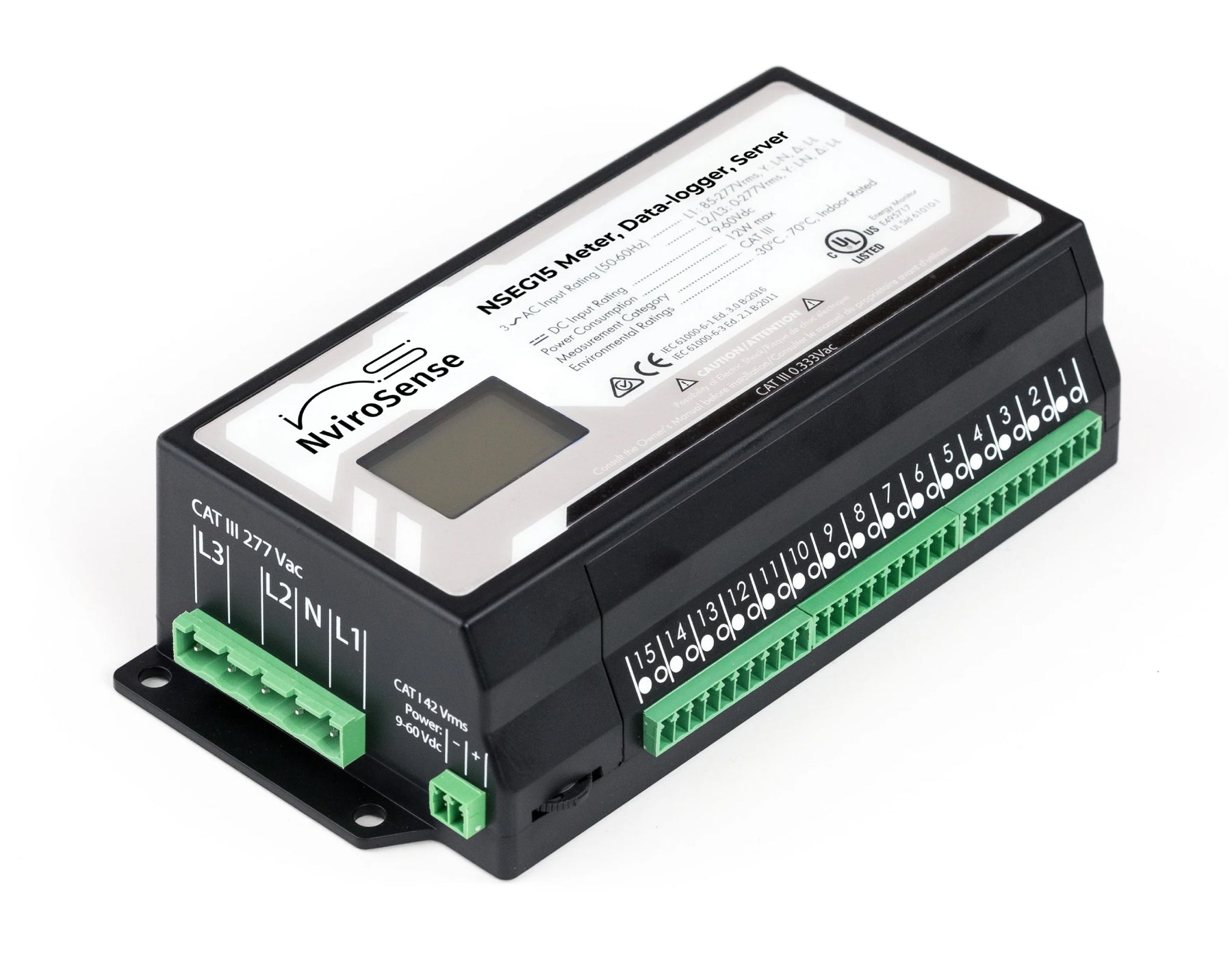

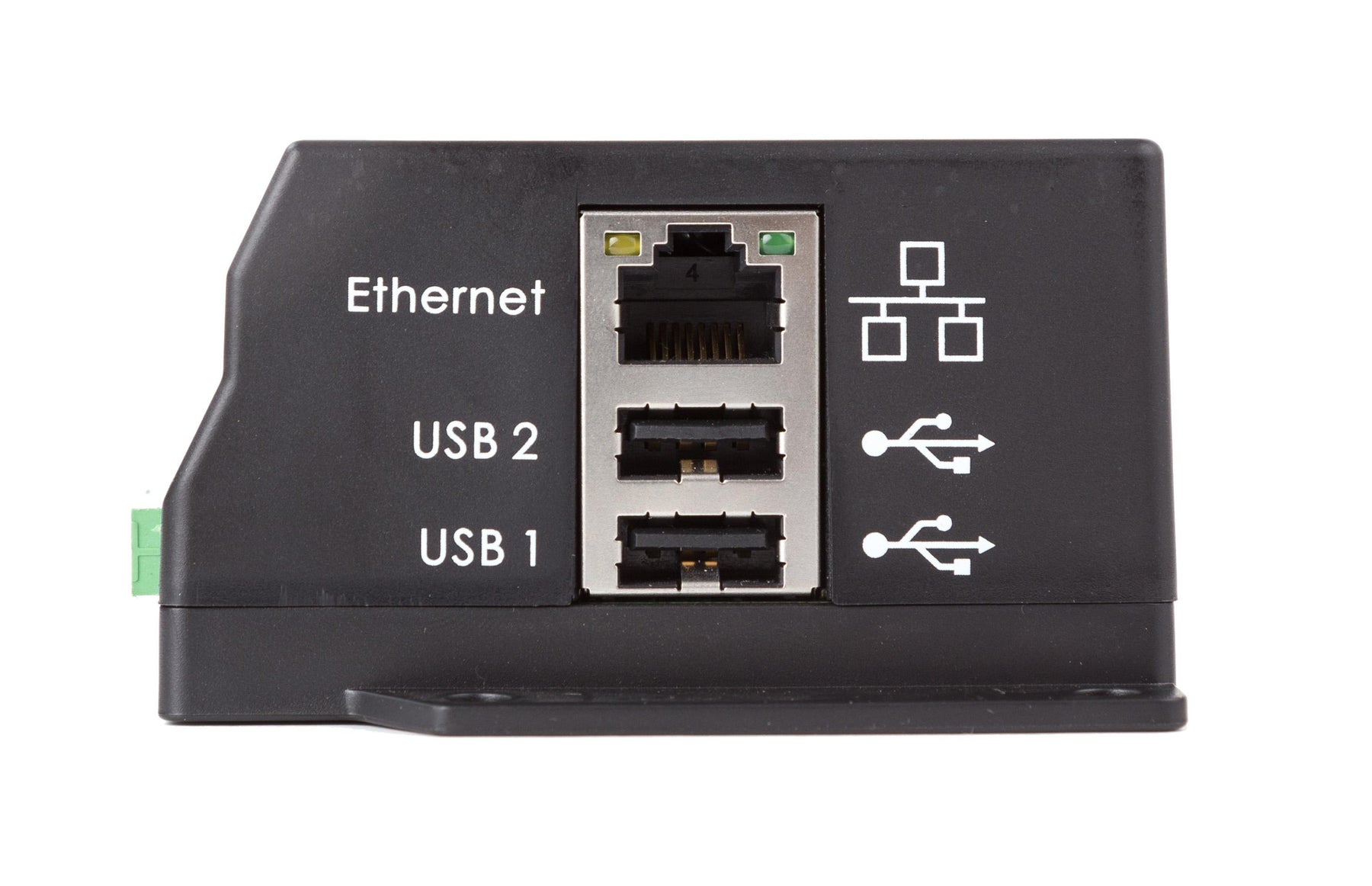

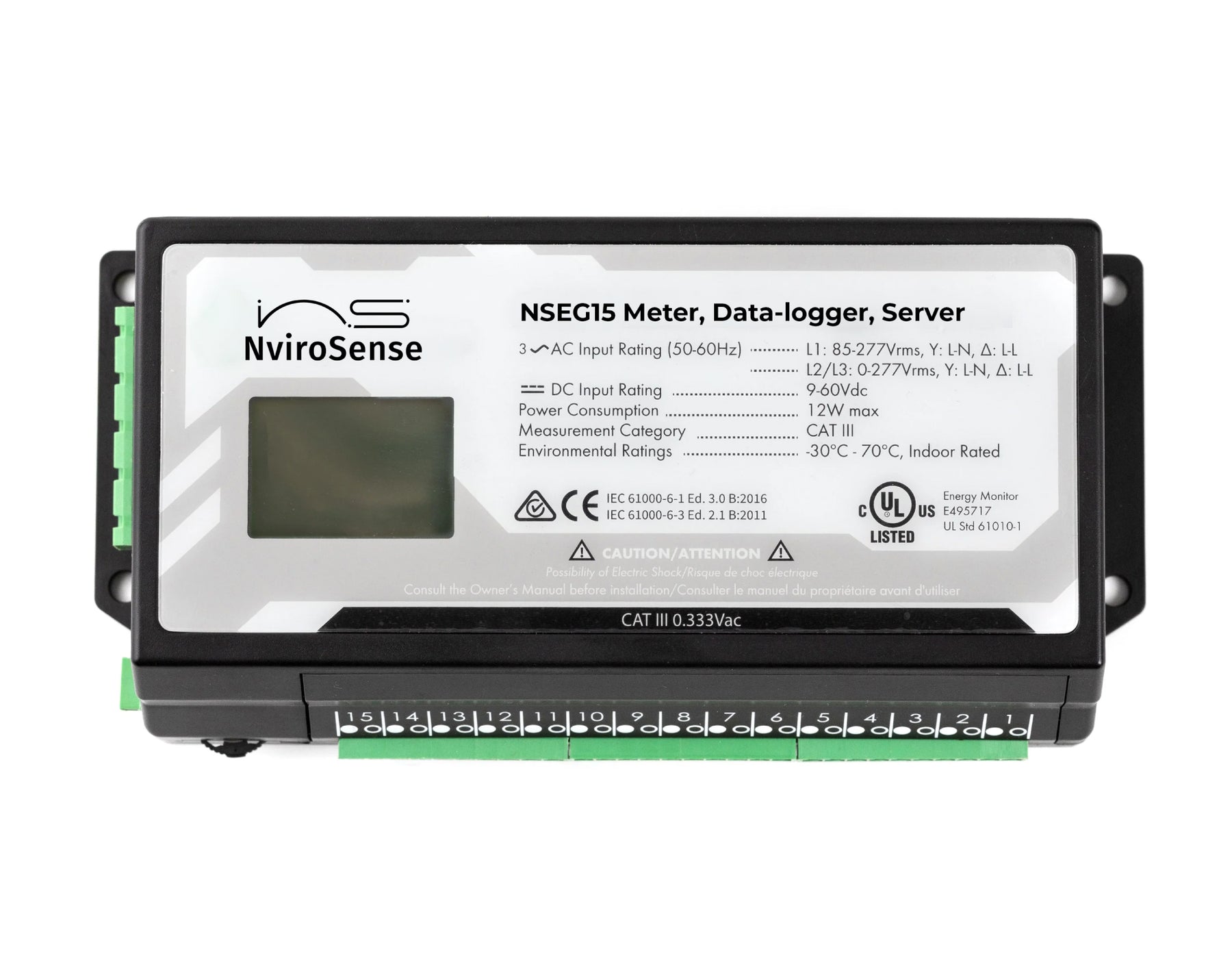

The NviroSense Core is a 15-channel energy meter with 0.5% revenue grade accuracy compliance and the ability to measure residential or commercial circuit panels, up to 3-phase 277/480VAC and 6900A. The meter has an Ethernet port and 2 USB ports for additional options, like WiFi and serial.

Users can access meter data using the free user interface or with other systems using a published XML API, Modbus, or BACnet IP. The embedded web server allows the user to connect to the interface over the internet or on a local area network.

Each NSEG15 unit has a data logger that stores up to 64 data points for the lifetime of the hardware, and the user can access data as granular as 1-second averages for the most recent hour of recording. Taken together, the NviroSense Core is an accurate and flexible solution for monitoring multiple circuits in any residential or commercial energy monitoring application.

Highlighted Features

  • Measuring Capability: Measures electric AC or DC power on up to 30 circuits
  • USB Inputs: 2 USB inputs for additional connectivity
  • Display: LCD Screen for clear visibility
  • DC Voltage Port: Available for specific power requirements

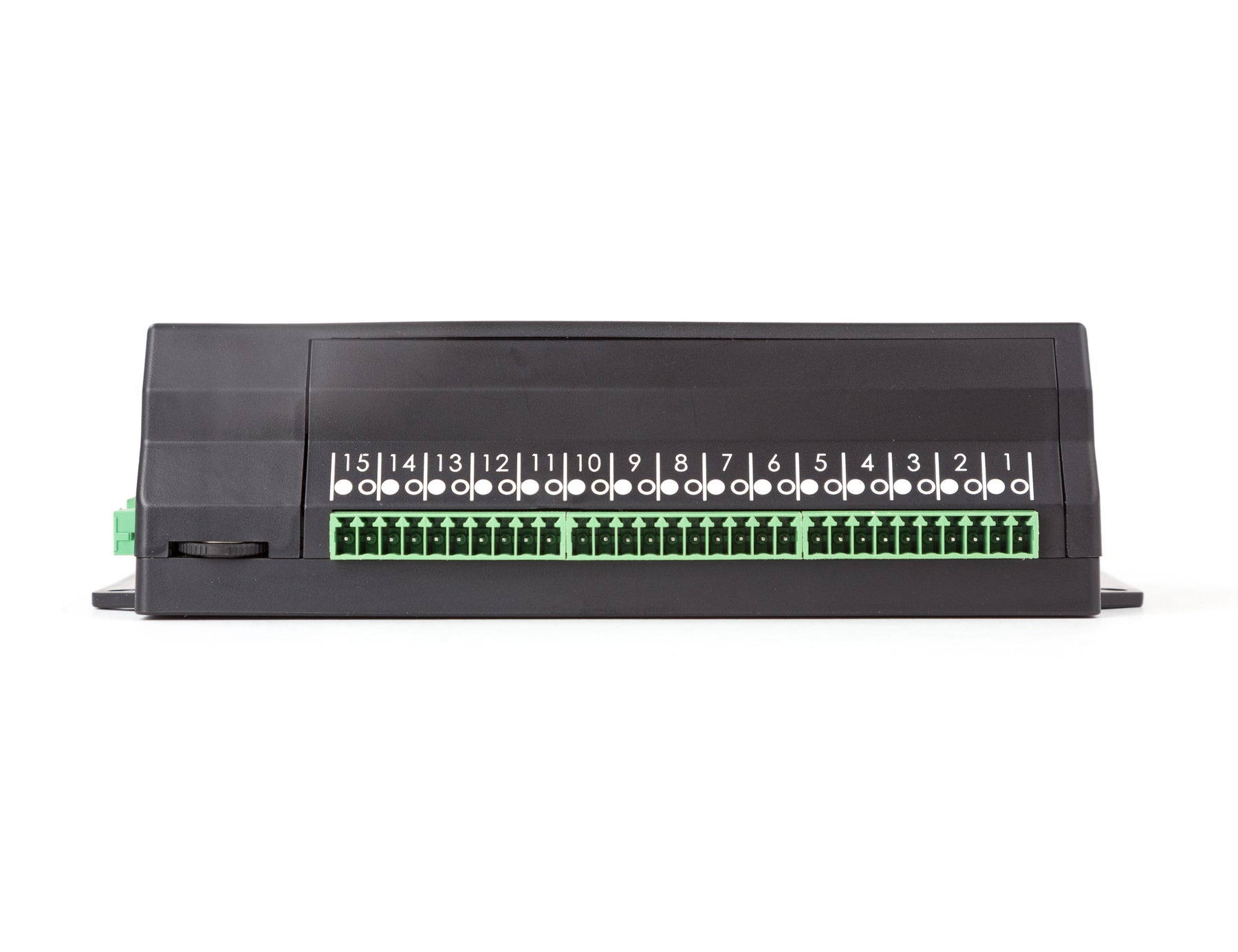

  • Sensor Inputs: 15 sensor inputs for versatile monitoring
  • Connectivity: Built-in Ethernet, with WiFi and Cellular communication available using additional hardware
  • Recording Features: Building-demand/consumption recording and renewable energy production (e.g., PV solar, wind)
  • Appliance Monitoring: Individual appliances, such as geothermal pumps, HVAC, refrigerator
  • CT Support: Supports a wide range of current transformers (CTs) to accommodate virtually any size load
  • Web Server: Built-in web server, fully web-configurable
  • Memory: Built-in solid-state memory with product lifetime data storage
  • Internet Capability: Internet-enabled but can also operate autonomously without an Internet connection
  • Firmware: Free lifetime firmware upgrades
  • Contracts and Batteries: No service contracts or batteries required
  • Compatibility: Windows, Mac, Linux, & smart-phone compatible, suitable for residential, commercial, municipal, and industrial use
  • Communication Protocols: BACnet IP and MS/TP compatible
  • Compliance: FCC and UL-61010 compliant, lead-free and RoHS-compliant

Specifications

Category Specification
Measurement

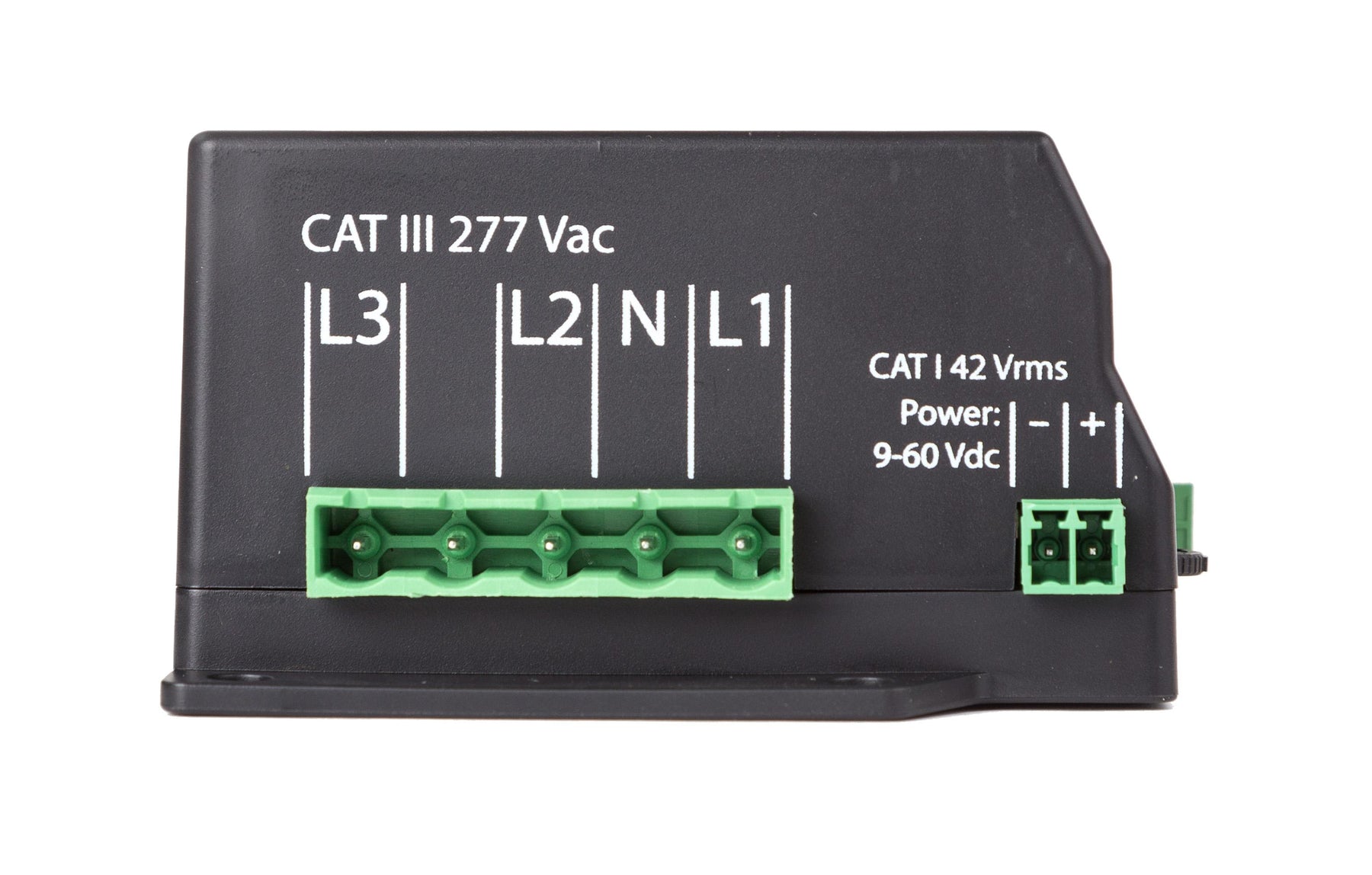

AC Voltage L1: 85-277 Vrms
L2: 0-277 Vrms
L3: 0-277 Vrms
DC Voltage 42 Vrms
Power: 9-60 Vdc
Measurement: +/-60 Vdc
Current 15 channels
5-6900A max per channel
Isolated inputs
Frequency 50 or 60 Hz
Logging Values V, A, W, Wh, Hz, VA, VAr, THD, deg
Power Draw 12W max, 2W typical
Environmental
Operating Temperature -30 to 70 deg C (-22 to 158 F)
Max Altitude 4000m (13,123ft)
Max Humidity 80% up to 31 deg C
Measurement Category Overvoltage Category III
Location Open-type indoor device
Pollution Degree 2
Data Logger Capacity
Register Count 64 (data storage points)
Granularity (duration/avg) 1 hour/1 second
1 year/1 minute
10 yrs/15 minute
Device Lifetime/1 Day
Safety and Regulatory
Safety IEC/UL 61010-1 Ed. 3.0 B:2010
CE IEC 61000-6-1 Ed. 3.0 B:2016
IEC 61000-6-3 Ed. 2.1 B:2011
FCC FCC Title 47 CFR Part 15-Subpart B Class B
ICES-003 Information Technology Equipment Class B
Communication
Ethernet IEEE 802.3 - LAN
User Interface
Compatible Browsers Recent versions of:
Google Chrome
Firefox
Safari
Internet Explorer
Enclosure
Material FRABS
Dimensions 17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in)
Weight 300g (0.66lbs)
Warranty
Standard 2 years
Extended 5 years


Documentation

Datasheet
