NviroSense

NSEG30 - NS Energy Gauge - 30 Channel

Sale priceR 0.00
SKU: NSEG30

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

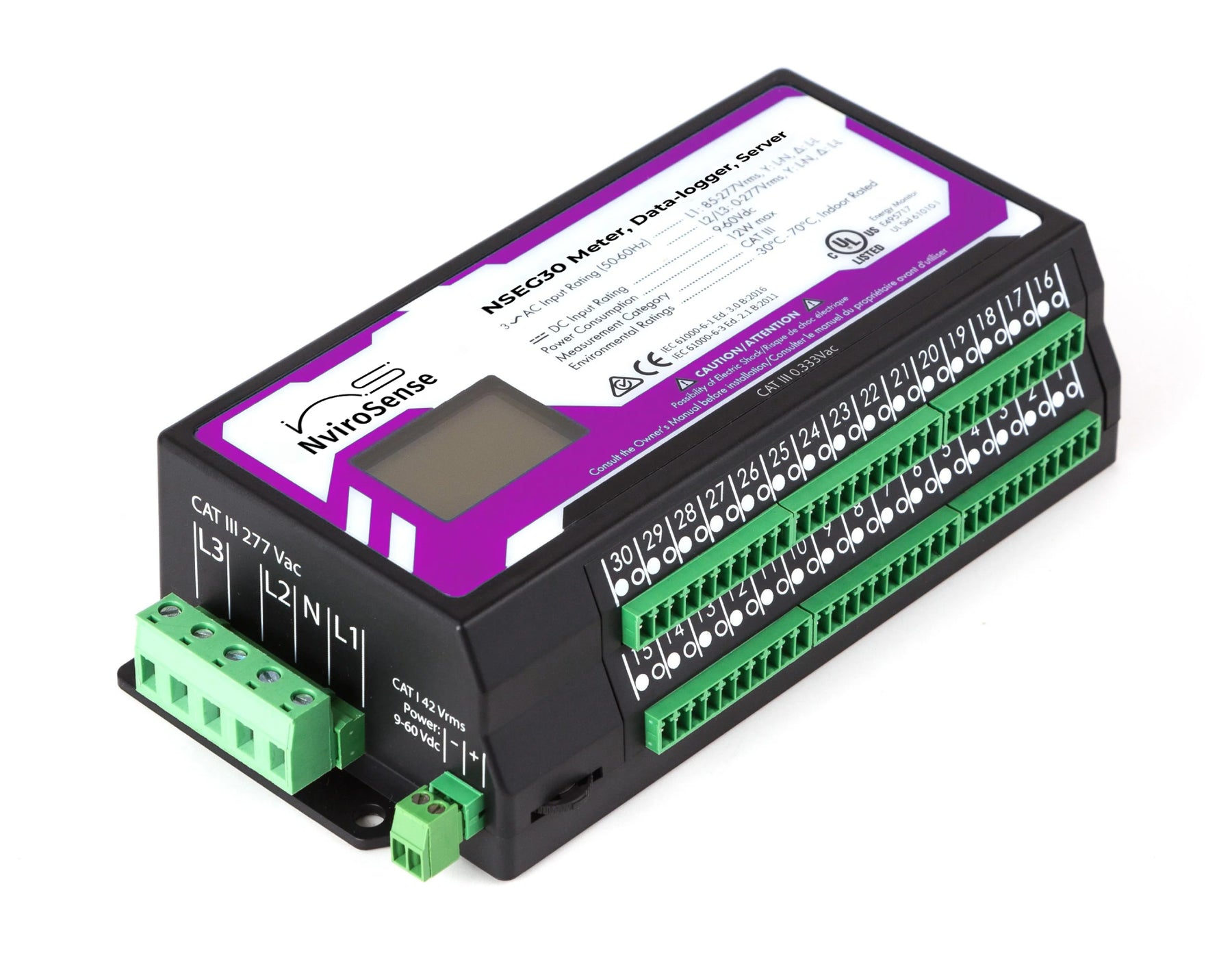

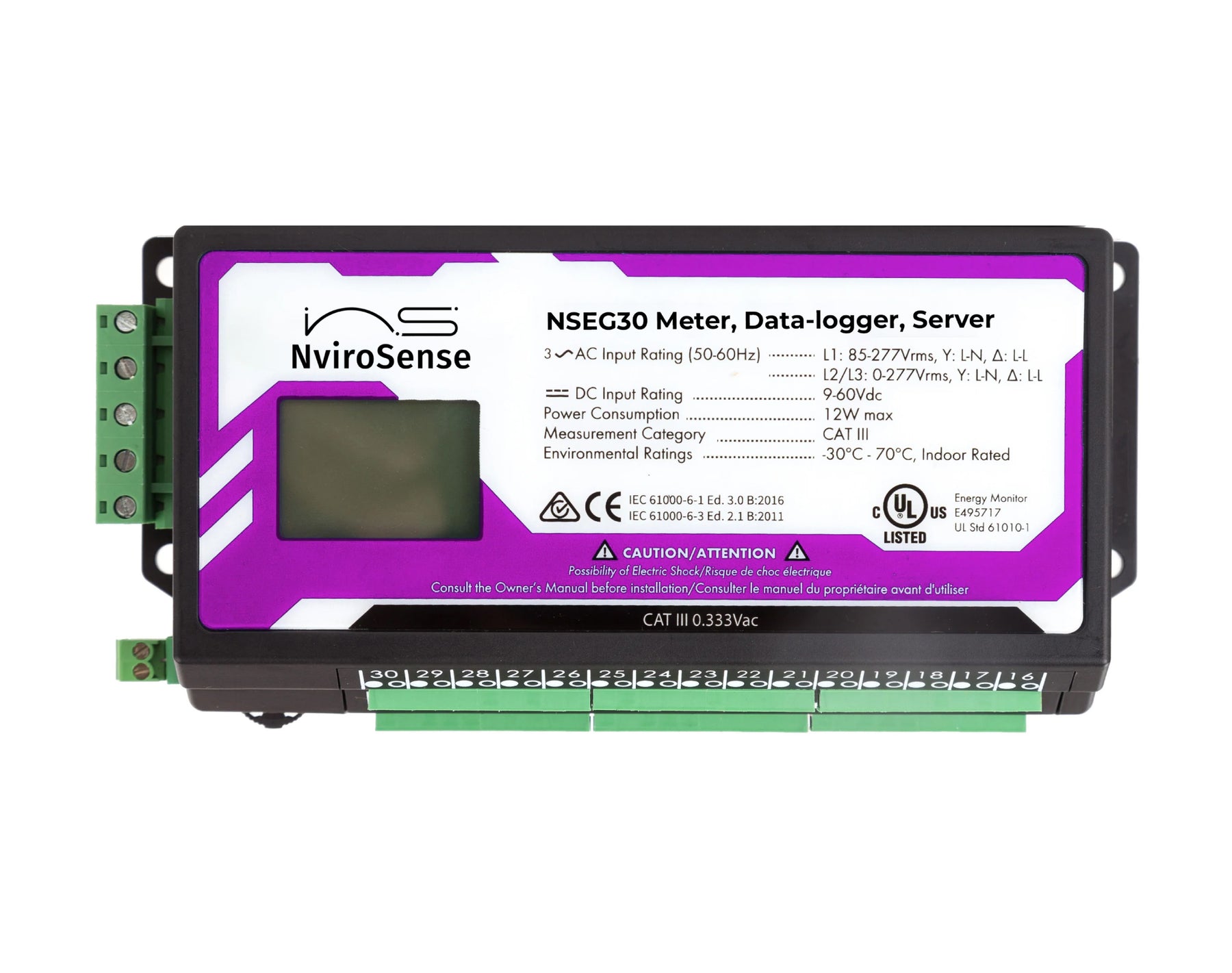

The NviroSense NSEG30 combines an energy meter, a data logger, and a web server. This powerful combination lets you measure, store, and retrieve data directly from the device or from a remote location.

Not only does it calculate power (V, A, VAr, kWh, etc), but it also gathers data from optional sensors that assess flow rate, temperature, wind speed, and more. You can view historical and live data for up to 30 years with the unit's convenient user interface (UI). The UI can be accessed on a local network or via the internet from a computer, tablet, or smartphone. Once connected, you have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.

The best part is that you pay nothing for the user interface because you retrieve data directly from your own NviroSense NSEG30 hardware, not a cloud or 3rd party host.

Highlighted Features

  • Circuit Measurement: Measures electric AC or DC power on up to 30 circuits

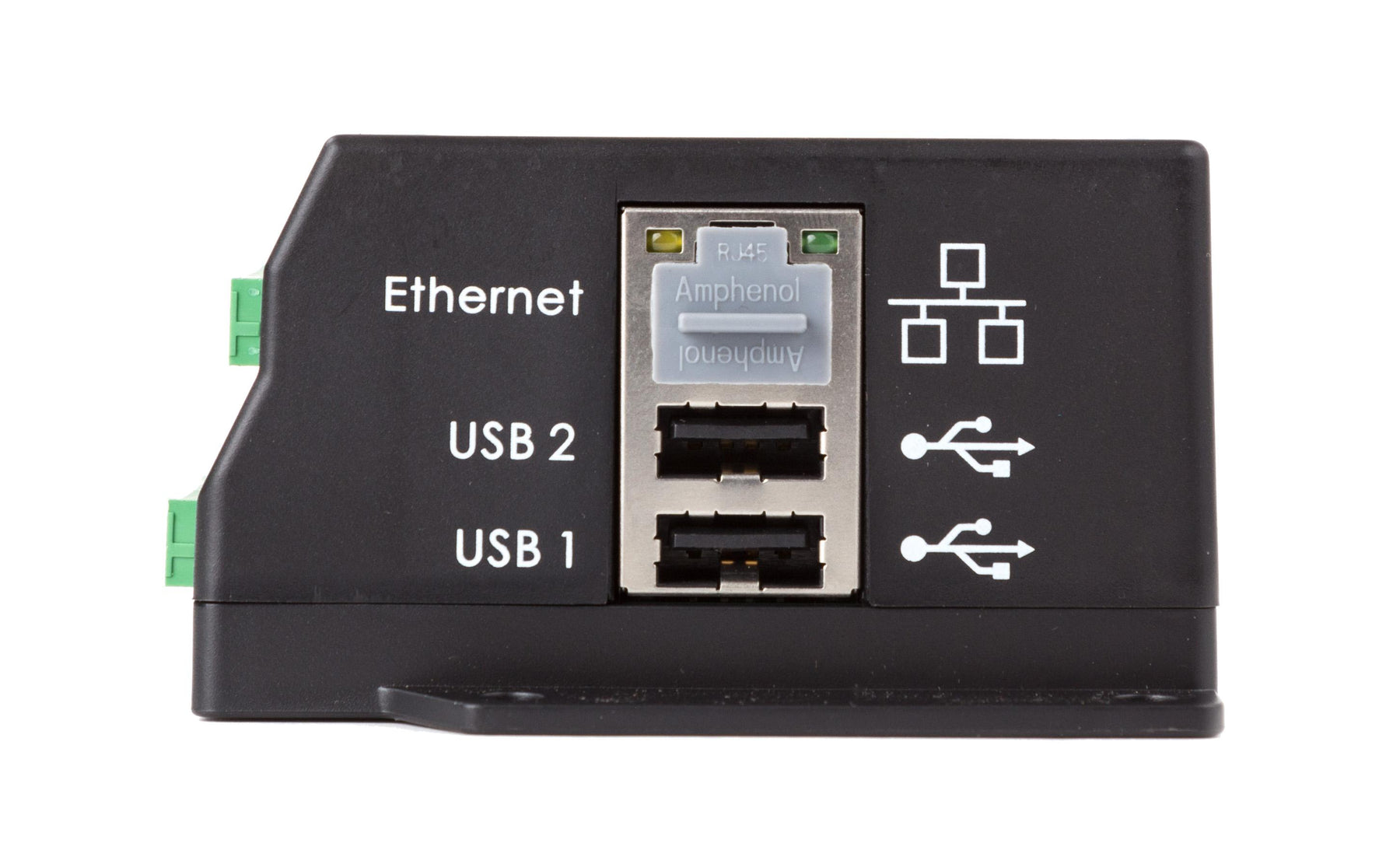

  • USB Inputs: Includes 2 USB inputs for expanded connectivity
  • Display: Features an LCD Screen for clear data visibility
  • DC Voltage Port: Equipped with a dedicated DC Voltage port

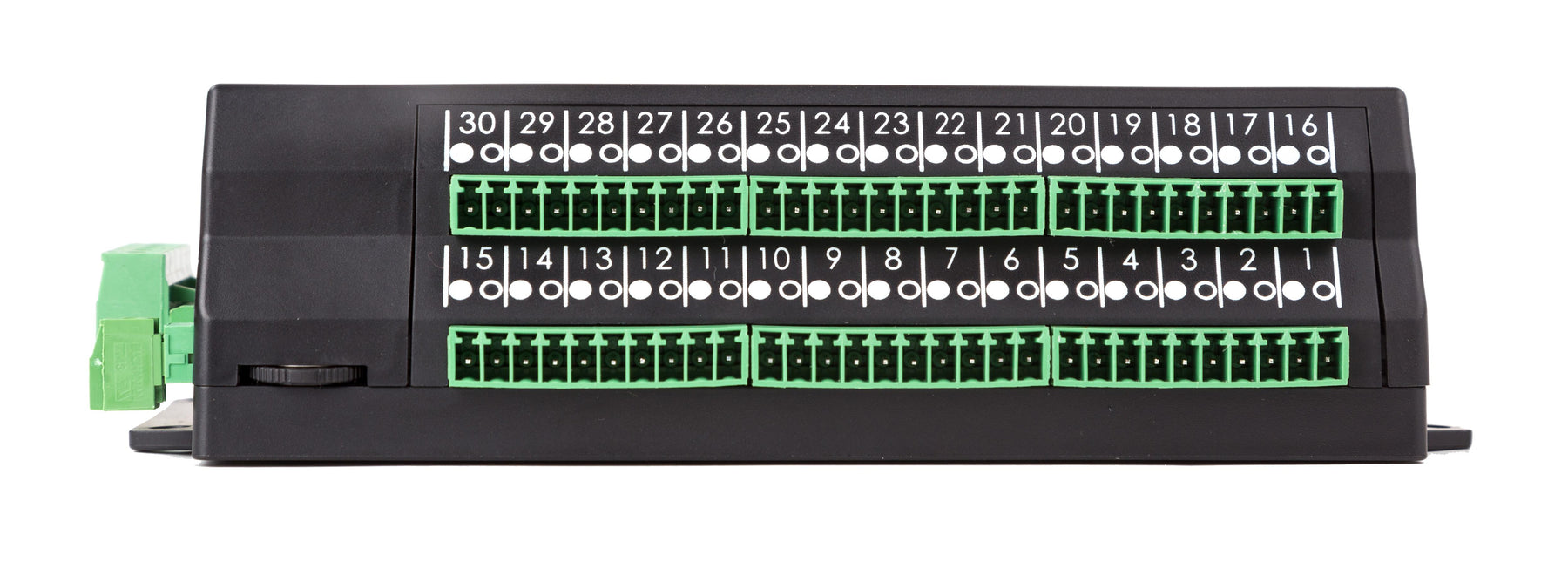

  • Sensor Inputs: Offers 30 sensor inputs for comprehensive monitoring
  • Communication: Supports Ethernet, WiFi, and Cellular communication (additional hardware required)
  • Energy Management: Records building-demand/consumption and renewable energy production (e.g., PV solar, wind)
  • Appliance Monitoring: Tracks individual appliances, such as geothermal pumps, HVAC, refrigerator
  • CT Compatibility: Supports a wide range of current transformers (CTs) for any size load
  • Web Server: Built-in web server, fully web-configurable
  • Memory & Storage: Built-in solid-state memory with product lifetime data storage
  • Internet Capability: Internet-enabled with autonomous operation without an Internet connection
  • Firmware: Free lifetime firmware upgrades
  • No Extra Costs: No service contracts or batteries are required
  • Compatibility: Compatible with Windows, Mac, Linux, & smartphones; suitable for residential, commercial, municipal, and industrial use
  • Communication Protocols: BACnet IP, MS/TP, Modbus TCP, and RTU communication compatible
  • Compliance: FCC and UL-61010 compliant, lead-free and RoHS-compliant

Specifications

Category Specification
Measurement

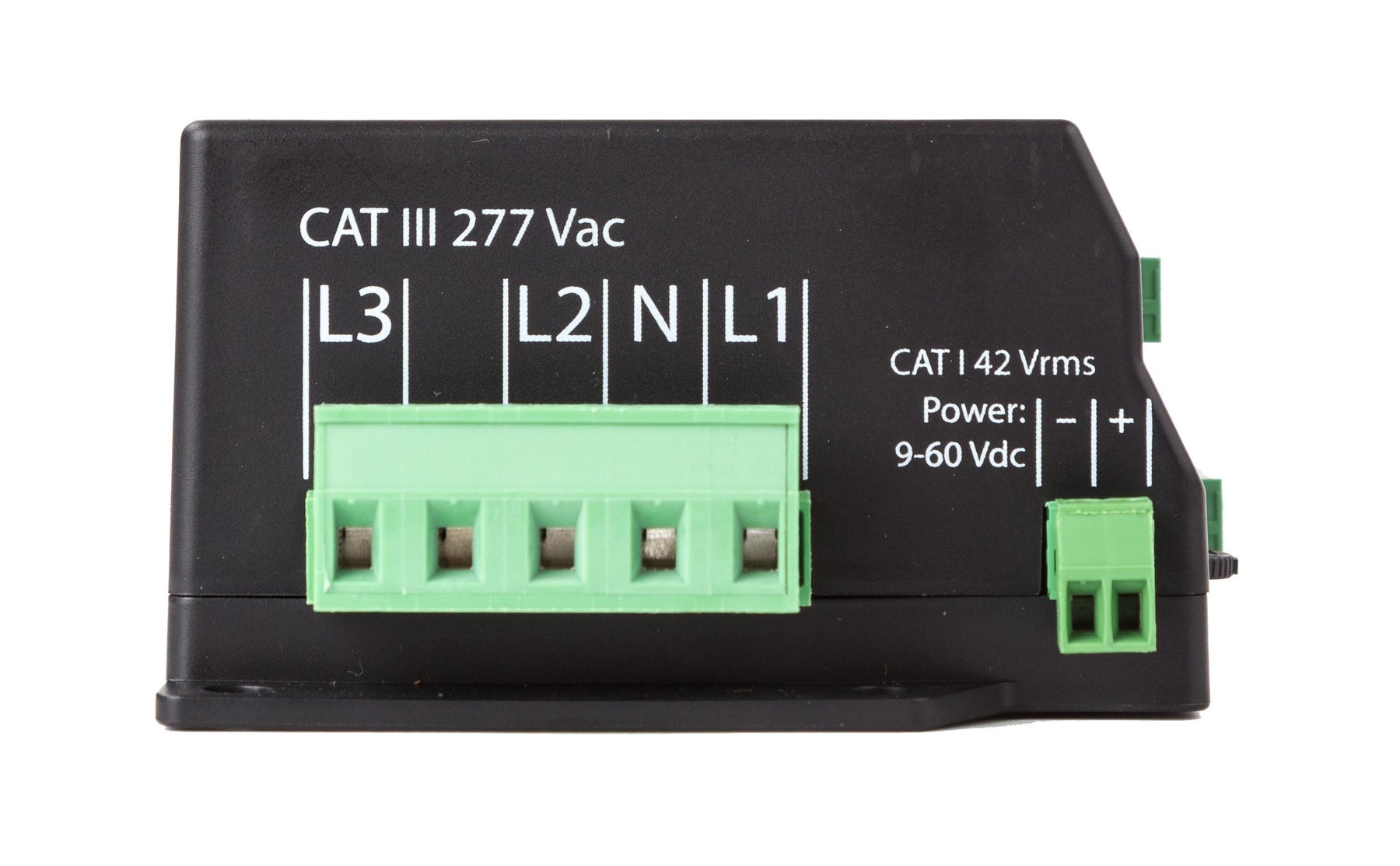

AC Voltage L1: 85-277 Vrms
L2: 0-277 Vrms
L3: 0-277 Vrms
DC Voltage 42 Vrms
Power: 9-60 Vd
Measurement: +/-60 Vdc
Current 30 channels
5-6900A max per channel
Isolated inputs
Frequency 50 or 60 Hz
Logging Values V, A, W, Wh, Hz, VA, VAr, THD, deg
Power Draw 12W max, 2W typical
Environmental
Operating Temperature -30 to 70 deg C (-22 to 158 F)
Max Altitude 4000m (13,123ft)
Max Humidity 80% up to 31 deg C
Measurement Category Overvoltage Category III
Location Open-type indoor device
Pollution Degree 2
Data Logger Capacity
Register Count 64 (data storage points)
Granularity (duration/avg)

1 hour/1 second
1 year/1 minute
10 yrs/15 minute
Device Lifetime/1 Day

Safety and Regulatory
Safety IEC/UL 61010-1 Ed. 3.0 B:2010
CE IEC 61000-6-1 Ed. 3.0 B:2016
IEC 61000-6-3 Ed. 2.1 B:2011
FCC FCC Title 47 CFR Part 15-Subpart B Class B
ICES-003 Information Technology Equipment Class B
Communication
Ethernet IEEE 802.3 - LAN
User Interface
Compatible Browsers Recent versions of:
Google Chrome
Firefox
Safari
Internet Explorer
Enclosure
Material FRABS
Dimensions 17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in)
Weight 300g (0.66lbs)
Warranty
Standard 2 years
Extended 5 years

Documentation

Datasheet
