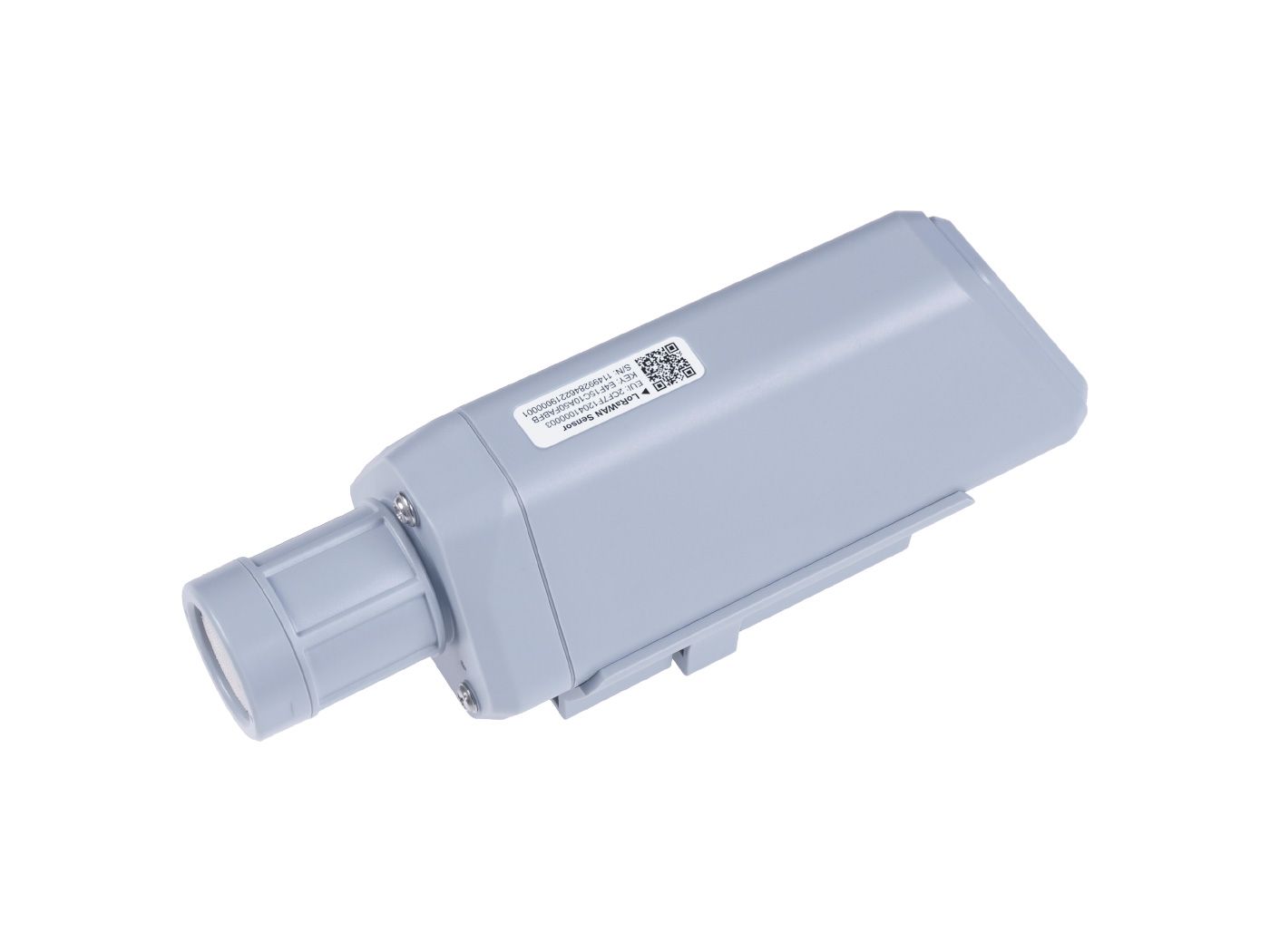

Introducing the ground breaking NviroSense NSS470 sensor – your ultimate solution for monitoring invisible environmental parameters with unmatched convenience. This state-of-the-art battery-powered IP66 wireless sensor detects CO2, air temperature, and humidity with exceptional precision, providing you with real-time insights into photosynthesis rate and indoor/outdoor air quality.
With an impressive measuring range of 400 to 10000 ppm for CO2, and a wide operating temperature span from -40°C to 85°C, the NSS470 excels in diverse environments, ensuring reliable performance at all times. Not only that, but its ability to cover a humidity range from 0 to 100 %RH makes it a versatile choice for a multitude of applications.
Highlighted Features
- Simple Configuration: Provide a no-code experience that lets users finish configuration with 4 steps.
- NviroSense APP Support: Combine with NviroSense App to help users manage the sensors.
- Minimal Maintenance Cost: Features IP66 enclosure, Bluetooth configuration, wireless data transmission, and built-in 19Ah battery that jointly reduces the cost of maintenance.
- Compatible with Worldwide LoRaWAN® Networks: Compatible with different types of LoRaWAN® gateways and multiple LoRaWAN® Network Servers (Helium, TTN, etc.) to enable fast connection with local LoRaWAN® networks.
- High-performance Guarantee: Went through rigorous reliability tests to ensure high performance and great durability.
Documentation
Specifications
CO2 Specifications
| Specification | Value |
|---|---|
| Range | 400 to 10000 ppm |
| Accuracy | ±(30 ppm +3% of reading) |
| (extended range ±10% of reading) | |
| Resolution | 1 ppm |
Air Temperature Specifications
| Specification | Value |
|---|---|
| Range | -40 to +85 °C |
| Accuracy | ±0.2 °C |
| Resolution | 0.01 °C |
| Long-term Drift | <0.03 °C/year |
Air Humidity Specifications
| Specification | Value |
|---|---|
| Range | 0 to 100 %RH |
| Accuracy | ±1.8 %RH |
| Resolution | 0.01 %RH |
| Long-term Drift | <0.25 %RH/year |
General Parameters
| Specification | Value |
|---|---|
| Product Model | NSS470 |
| Microcontroller | Wio-E5 |
| Support Protocol | LoRaWAN v1.0.3 Class A |
| Built-in Bluetooth | App Tool to change parameters |
| Max Transmitted Power Sensitivity | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to 10km (depending on gateway antenna and environments) |
| IP Rating | IP66 |
Operating Parameters and Battery
| Specification | Value |
|---|---|
| Operating Temperature | 0 to +50 °C (Effective measurement range of CO2) |
| -40 to +85 °C (CO2 module not included) | |
| Operating Humidity | 0 to 90 % RH (non-condensing) |
| Device Weight | 285g |
| Certification | CE / FCC / RoHS |
| Battery (Contained in equipment) | |
| Battery Life | Up to 10 years** |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D-size SOCl2 Battery |
Applications
- Poultry Farm
- Livestock Shed
- Greenhouse
- Indoor Air quality monitoring
- and Industrial CO2 emission
