NviroSense
NSS710 7-in-1 Compact Weather Station
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
NSS710 7-in-1 Compact Weather Station
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

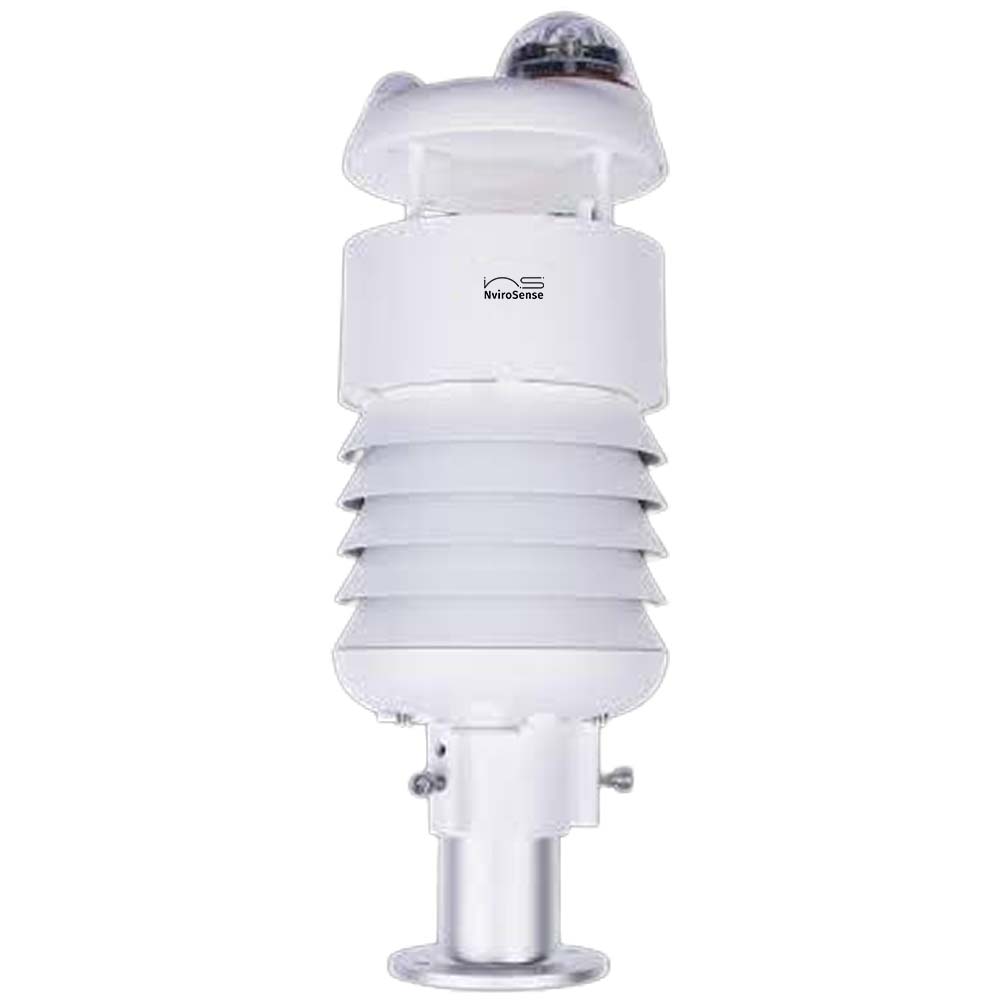

The NviroSense NSS710 is a 7-in-1 Compact Weather Station engineered to gather and analyze data on air temperature, relative humidity, barometric pressure, light intensity, rainfall (using optical measurement), wind speed, and wind direction (via ultrasonic sensors).
This advanced tool is perfectly suited for challenging environments such as outdoor locations, agricultural settings, and urban areas involved in smart city initiatives.
Its multi-faceted functionality places it at the forefront of weather and environmental monitoring solutions.
Highlighted Features
- 7-in-1 Measurement Capability: Measures air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, wind speed, and wind direction, all in one integrated device.
- Electronic Compass/Magnetometer Integration: Enables easy installation with the option to manually disable the compass for precise orientation to the North.
- Complete Mounting Kit: Includes a flange plate and 3m cable for convenient pole mounting.
- Robust Design – IP66 Rated: Offers waterproof and dustproof protection, making it suitable for challenging outdoor scenarios.
- Extreme Weather Adaptation: Features integrated heaters that can be activated in extreme weather conditions to maintain optimal performance.
- Advanced Sensing Technology: Utilizes ultrasonic sensors for wind speed and direction, and an optical rain gauge for compact and user-friendly measurement.
- Precision Assurance: Equipped with radiation shields to ensure accurate ambient measurements, calibrated and maintenance-free for dependable results.
- Multiple Supported Interfaces: Compatible with RS 485 (MODBUS-RTU), 232, 422 (Modbus), and SDI-12 interfaces for flexible integration.
- Certifications: Complies with CE and FCC standards, underscoring its quality and safety.
These features highlight the NviroSense NSS710's versatility and advanced capabilities, making it an ideal solution for a wide range of environmental and weather monitoring applications.
Documentation
Specifications
| Specifications | General Parameters |
|---|---|
| Parameters Measured | air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity, wind speed, and wind direction |
| Protocol | RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 |
| Cable Length | 3m |
| Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| IP Rating | IP66 |
| Specifications | Air Temperature | Air Humidity | Barometric Pressure | Light Intensity | Wind Speed (Ultrasonic) | Wind Direction (Ultrasonic) | Rainfall Intensity (Optical) |
|---|---|---|---|---|---|---|---|
| Range | -40 °C ~ + 85 °C | 0 ~ 100% RH | 300 ~ 1250 hPa | 0 ~ 188000 Lux | 0 ~ 60 m/s | 0 ~ 360 ° | 0 ~ 200 mm/h |
| Accuracy | ± 0.1℃ | ± 1.5% RH | ± 50 Pa | ± 5% (measurement value) | ± 3% | ± 3° | ± 10% |
| Resolution | 0.01 ℃ | 0.01% RH | 10 Pa | 5 Lux | 0.1 m/s | 0.1° | 0.02 mm/h |
Applications
In what environment does this data logger operate?
- Operating Environment: This data logger is designed to function in outdoor environments, including challenging weather conditions.
What measurements does this data logger support?
- Air Temperature: Measures ambient temperature.
- Relative Humidity: Monitors the moisture content in the air.
- Barometric Pressure: Gauges atmospheric pressure.
- Light Intensity: Records the brightness of surrounding light.
- Precipitation Intensity: Measures the rate of rainfall using an optical sensor.
- Wind Speed and Direction: Utilizes ultrasonic sensors to capture both the speed and direction of the wind.
These diverse measurement capabilities make the data logger a versatile tool for various environmental and meteorological applications.
