NS Multi-Depth Soil Moisture Sensor - eucatech Store

NviroSense

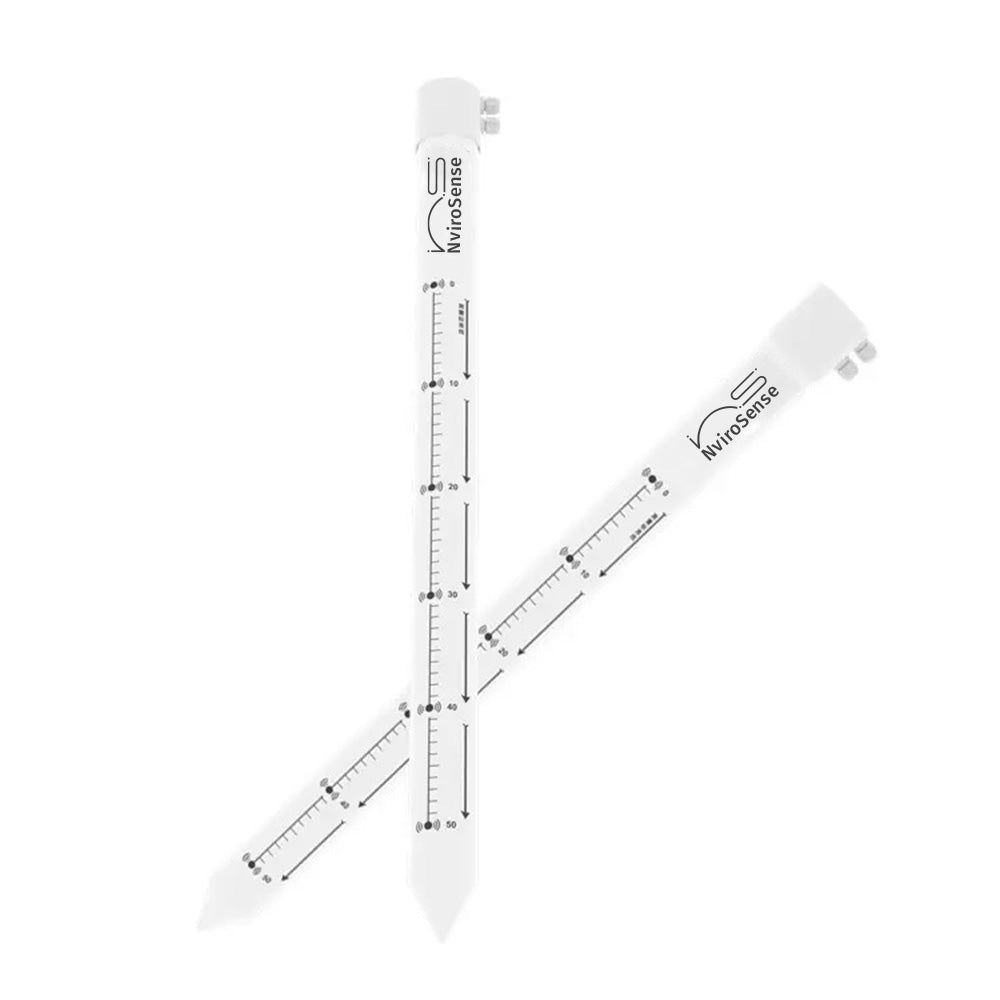

NSS860 Multi-Depth Soil Moisture Sensor

Sale priceR 0.00
SKU: NSS860

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Select Layers:3 Layer
Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

NSS860 Multi-Depth Soil Moisture Sensor

3 Layer

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

The NviroSense multi-depth soil moisture sensor system offers an affordable and expandable solution for precise crop management. This system allows for the strategic placement of soil sensors across your farmland, enabling effortless and comprehensive monitoring of the entire area through a user-friendly platform.

This device is designed to dynamically monitor soil moisture and temperature conditions at varying depths, offering two configuration options with either 3 or 5 sensor layers. With its ability to swiftly and accurately gather soil moisture data, the NviroSense system empowers farmers to make informed and scientifically-backed decisions for effective drought management strategies.

Documentation

Data Sheet

Highlighted Features

  • The shell of this multi-depth soil sensor is made of PVC plastic pipe, with high-frequency detection waves of nearly 1 GHz emitted inside, allowing effective penetration through the plastic pipe to sense the soil environment.
  • The multi-layer soil sensor is not affected by salt ions in the soil; agricultural activities such as fertilizers, pesticides, and irrigation do not affect the measurement results, ensuring accurate data.
  • The electrode of the sensor is not in direct contact with the soil, avoiding electrical interference with the soil and the plants within.
  • The multi-depth soil sensor adopts the standard Modbus-RTU485 communication mode, with the farthest communication distance reaching up to 2000 meters.
  • Supports 10-30V wide voltage charging.

Applications

The multi-depth soil moisture sensor shell is made of PVC plastic pipe, which will not be affected by salt ions in the soil. Agricultural activities such as fertilizers, pesticides, and irrigation will not affect the measurement results, and play a good role in protecting the circuit.

The multi-depth soil moisture sensor is suitable for the detection of soil moisture and drought information, or real-time detection of weather, water and rain, moisture, agricultural conditions, water conservancy projects, and other places.

Specifications

Specifications Details
Power Supply 10-30VDC
Operating Temperature -40℃-80℃
Measuring Range
Soil Moisture 0~100%
Soil Temperature -15℃~35℃
Accuracy
Soil Moisture ±5%(@50%, 25℃)
Soil Temperature ±0.5℃(25℃)
Measuring Point Spacing 10cm
Shell Material PVC Plastic Pipe
Protection Level IP68
Output Signal RS485 (Modbus Protocol)
