AZ Instrument Corp.
Pocket Barometric Anemometer
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Pocket Barometric Anemometer
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Highlighted Features
- New portable weather station
- Monitor wind speed, temperature, wind chill, barometric pressure, relative
- humidity, heat index, dew point, and altitude
- Forecast weather from the BAR chart
- Unique storm warning feature
Documentation
Data Sheet
Application

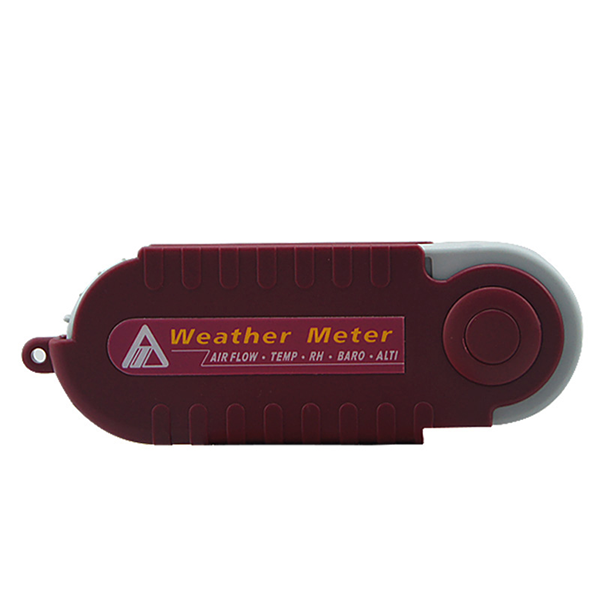

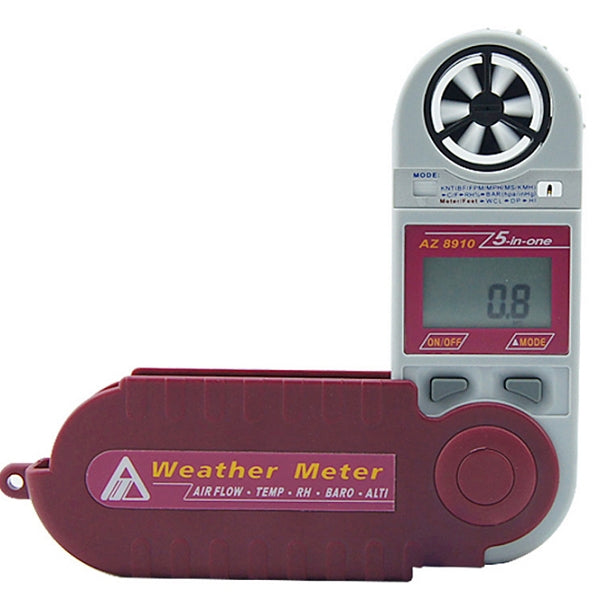

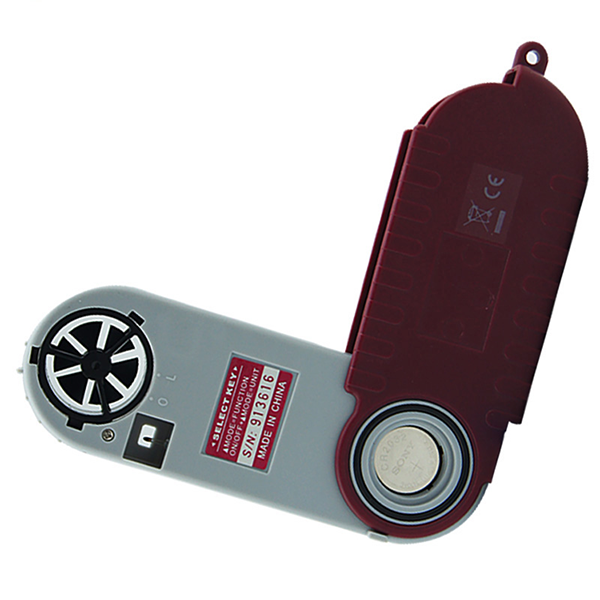

The pocket size 8910 AZ Airflow Meter has a Swiss knife shape, which could be opened at 90 degrees on the tripod, or 180 degrees fully opened to handle easily. The pocket-knife design makes it convenient and portable, easy to use, and to get a precision reading.
The 8910 AZ wind speed meter can measure the Wind Speed, Windchill, Temp., Humidity, Dew point temperature, Barometric Press, Heat Index, and Altitude.
The Windchill temperature is referred to as the “feels like” temperature. It is based on the rate of heat loss from exposed skin caused by the effects of wind and cold. As the wind increases, the body is cooled at a faster rate causing the skin temperature to drop. Wind Chill does not impact inanimate objects like car radiators and exposed water pipes, because these objects cannot cool below the actual air temperature.
The 8910 AZ Wind Chill Anemometer is the best choice as the wind speed monitoring device for HVAC (Heating, Ventilation, and Air Conditioning), industrial-related applications, Agriculture, and Outdoor Activities.
The 8910 AZ Anemometer was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
Specifications
| Model | 8910 |
| Wind Speed Range | 0.5~44.7 M/H, 60~3937 FT/M, 0.4~38.8 KNT, 1.1~20.0 m/s, 0.7~72.0 KMH, 1~8 BF |
| Wind Speed Accuracy | ±(3% of reading+0.2 m/s) |
| Air Temperature Range | -15.0~50℃ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±1℃ |
| Air RH% Range | 5%~95%RH |
| Air RH% Resolution | 0.1%RH |
| Air RH% Accuracy | ±3%RH (at 25℃. 10~90%RH, others ±5%RH) |
| Pressure Range | 400~1100 mbar |
| Pressure Resolution | 1 (400~1100 mbar/hpa), 0.1 (11.8~32.5 inHg) |
| Pressure Accuracy | ±3 hpa (at -10~60℃) |
| Altitude Range & Res. | -274~2743 M (1M), -900~9000 Ft (3 Ft) |
| Altitude / Pressure Update | 60 seconds |
| Wind Speed Response Time | 2 seconds |
| Temperature Response Time | 60 seconds (typical) |
| Air RH% Response Time | 60 seconds (typical) |
| Pressure Response Time | 15 minute (typical) |
| LCD Update | Every second |
| Windchill Display | YES |
| Dew Point Temp. Display | YES |
| Heat Index Display | YES |
| Altitude Display | YES |
| LCD Size | 28(L) * 16(W) mm |
| Operating Temperature | -15~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 150(L) * 55(W) * 25(H)mm (90 degree folded) 235(L) * 55(W) * 25(H)mm (180 degree folded) |
| Weight | ~90g |
| Battery | CR2032*1 PC |
| Optional Accessory | Replacement Mini Vane |
| Standard Package | Meter, Battery, Manual, Strap, Paper Box |
