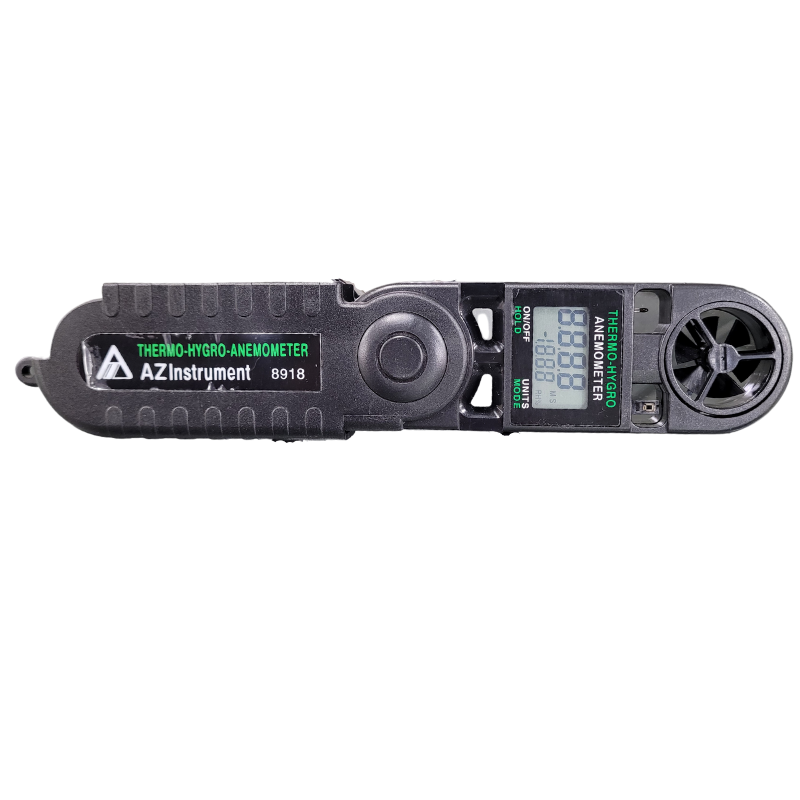

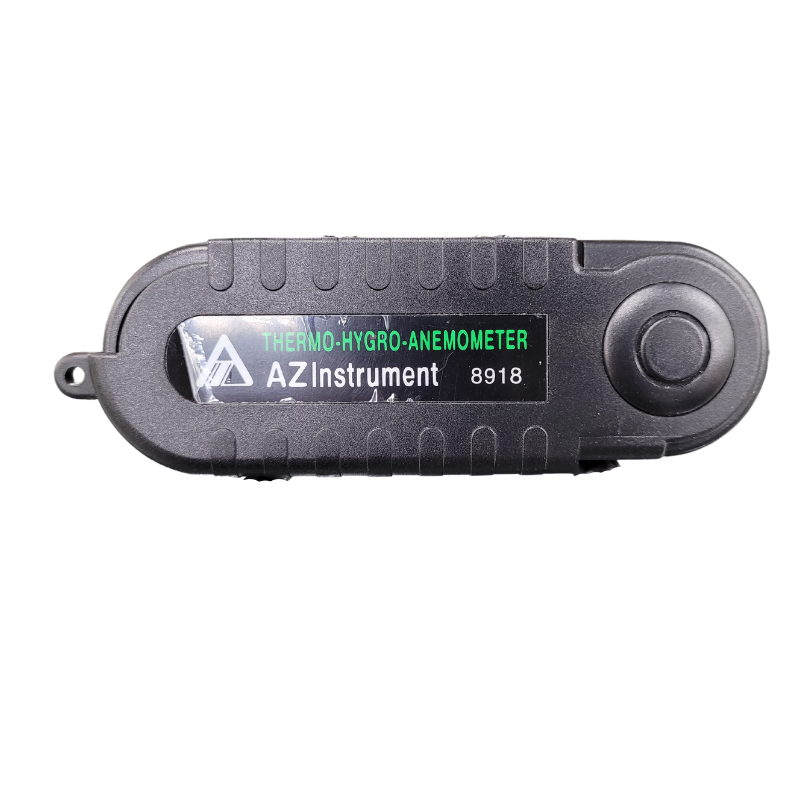

The pocket size 8918 AZ Air Flow Meter has a Swiss knife shape, which could be opened at 90 degrees on the tripod, or 180 degrees fully opened to handle easily. The pocket-knife design makes it convenient and portable, easy to use and to get a precision reading.
The 8918 AZ wind speed meter can measure the Wind Speed, Windchill, Temp., Humidity, and Dew point temperature.
The Windchill temperature is referred to as the “feels like” temperature. It is based on the rate of heat loss from exposed skin caused by the effects of wind and cold. As the wind increases, the body is cooled at a faster rate causing the skin temperature to drop. Wind Chill does not impact inanimate objects like car radiators and exposed water pipes, because these objects cannot cool below the actual air temperature.
Highlighted Features
- Small, compact design
-
Display air velocity and temperature or temperature and windchill
- Wind speed units are switchable
- KNT (knot), BF (beau fort), FPM (feet per minute),
-
MPH (mile per hour), MPS (meter per second), KPH (kilometer per hour)
-
Water-resistant and shockproof
-

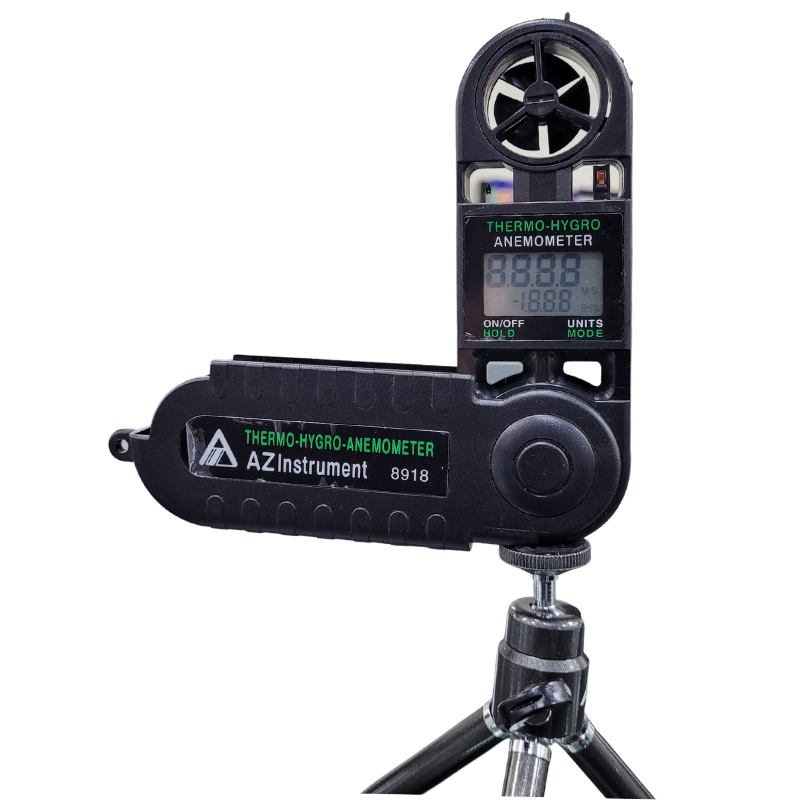

Tripod mountable
- Measure relative humidity and dew point
Applications
The 8918 AZ Windchill Anemometer is the best choice as the wind speed monitoring device for HVAC (Heating, Ventilation, and Air Conditioning), industrial-related applications, Agriculture, and Outdoor Activities.
The 8918 AZ Anemometer was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
Specifications
Model | 8918 |
Wind Speed Range | 0.5~44.7 M/H, 60~3937 FT/M, 0.4~38.8 KNT, 1.1~20.0 m/s, 0.7~72.0 KMH, 1~8 BF |
Wind Speed Accuracy | ±(3% of reading+0.2 m/s) |
Air Temperature Range | -15.0~50℃ |
Air Temperature Resolution | 0.1℃, 0.1℉ |
Air Temperature Accuracy | ±1℃ |
Air RH% Range | 5%~95%RH |
Air RH% Resolution | 0.1%RH |
Air RH% Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
Wind Speed Response Time | 2 seconds |
Temperature Response Time | 60 seconds (typical) |
Air RH% Response Time | 60 seconds (typical) |
LCD Update | Every second |
Windchill Display | YES |
Dew Point Temp. Display | YES |
LCD Size | 28(L) * 16(W) mm |
Operating Temperature | -15~50℃ |
Operating RH% | Humidity <80% |
Storage Temperature | -20~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 140(L) * 45(W) * 25(H) mm (90 degree folded) 235(L) * 45(W) * 25(H) mm (180 degree folded) |
Weight | ~90g |
Battery | CR2032 * 1 PC |
Optional Accessory | Replacement Mini Vane |
Standard Package | Meter, Battery, Manual, Strap, Paper Box |
