Remote Digital Temperature Controller
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

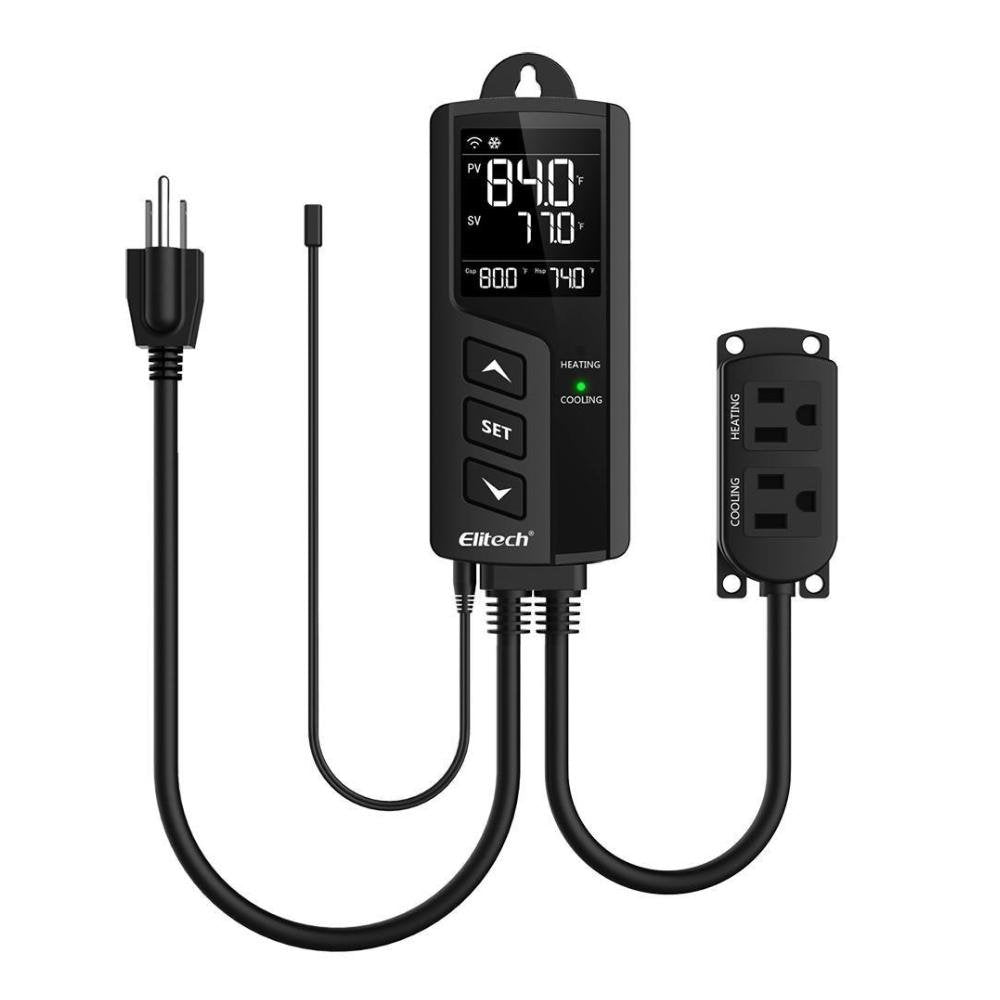

Elitech STC-1000WiFi is the WiFi version of STC-1000Pro - a plug-and-play smart digital temperature controller. It features two pre-wired heating and cooling outlets that can easily connect your refrigeration and heating equipment to realize automatic ideal temperature control. Its three-button design and LCD display give a clear visual effect on temperature viewings and personalizing settings and it supports Centigrade/Fahrenheit unit options.
Meanwhile, its optional UK/EU/US standards power plugs and outlets can satisfy various requirements. This controller can be widely used under various scenarios and electric appliances that need automatic temperature control such as homebrew, aquarium, incubation pet breeding, seedling heat mats culture fermentation, etc.

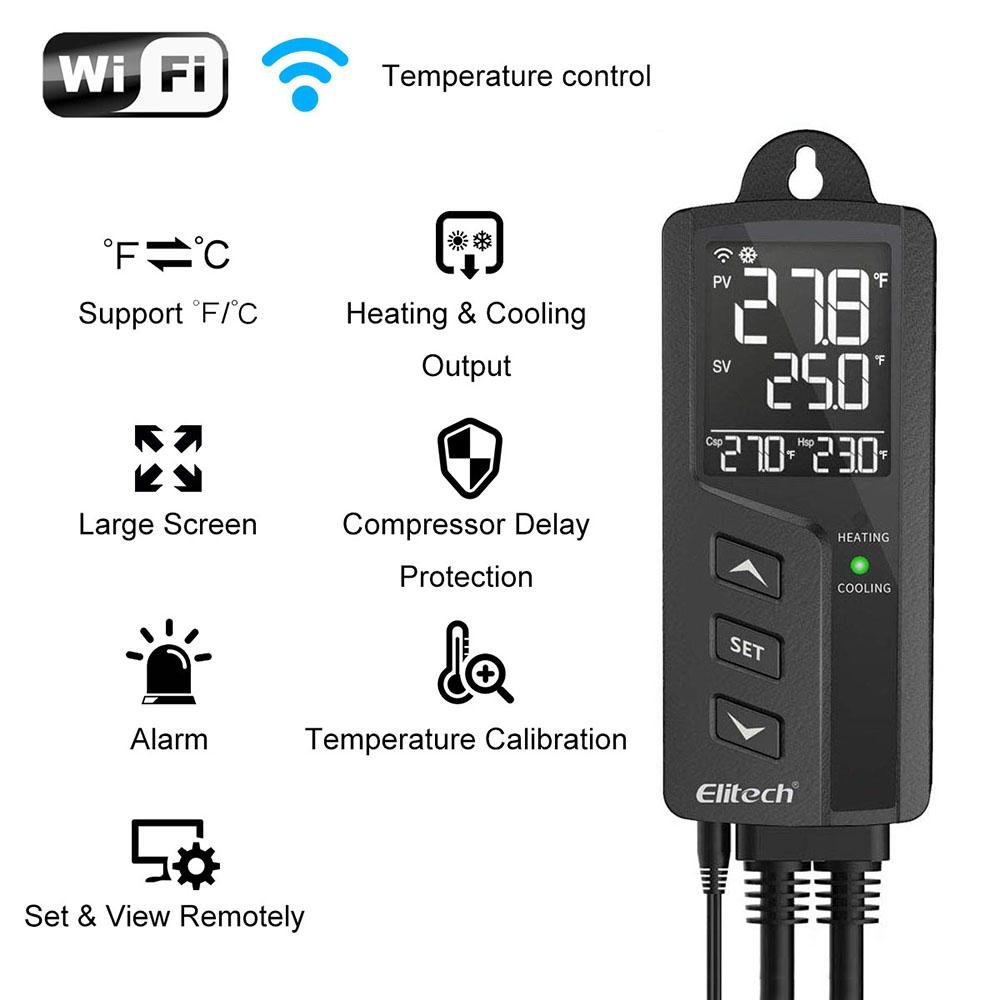

Highlighted Features
-
Remote Monitoring via WiFi
Set the parameter and view data, graph, and alarm history through our Elitech iCold platform or free APP. -
Dual Relay Output
Be able to connect with cooling and heating devices at the same time. -

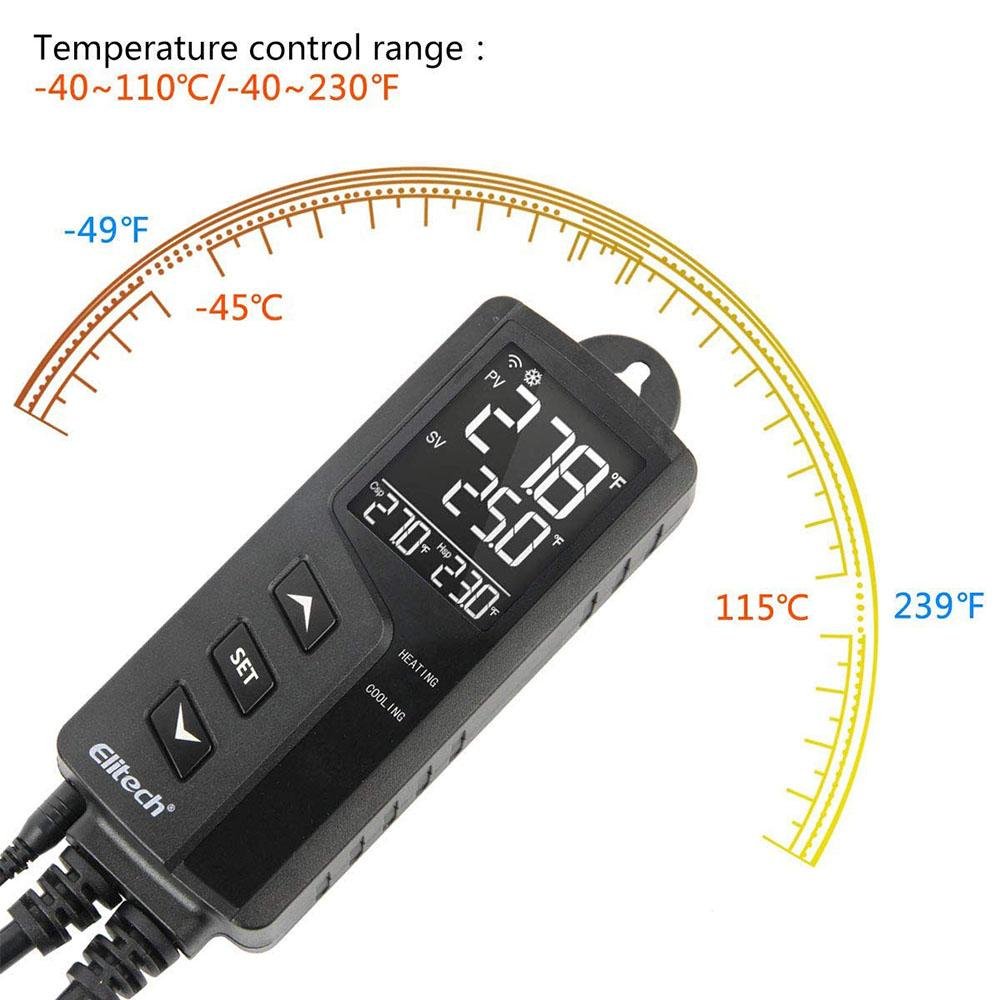

Wide Temperature Range
It measures from -49℉~239℉ and starts cooling or heating according to set parameters, which helps to keep the desired temperature all the time. -
Multi-functional Setting
Its functions include setting high or low alarms, start delay, temperature calibration, ℃/℉ etc. -
Safe & Reliable
Comply with CE, and FCC standards and adopt a fireproof ABS case, UL94 V-0 for safety.
Specifications
Parameter | Specification |
---|---|
Power Supply | 110-240VAC, 50/60HZ |
Total Power Consumption | 5W |
Temperature Measuring Range | -45°C ~ 115°C/-49 ~ 239°F |
Temperature Control Range | -40°C ~ 110°C/-40 ~ 230°F |
Temperature Resolution | 0.1C/0.1°F |
Temperature Accuracy | ±1°C/±2°F |
Operating Ambient Temperature | -10°C~65°C / 14°F ~ 149°F |
Storage Temperature | -20°C~75°C / -4°F ~ 167°F |
Relay Contact Capacity | 10A /110~240VAC |
Sensor Type | NTC Temperature Sensor(10KΩ/ 25°C, B value=3435K |
Working Mode | Heating or Cooling |
Cable Length (Sensor) | 2m |
Cable Length (Power Plug) | 1.5m |
Cable Length (Heating/Cooling Outlet) | 0.3m |
Dimensions | 265mm x 1675mm |
Best LCD Screen Viewpoint | 6 o'clock position |
WiFi Type | 2.4GHz WiFi |

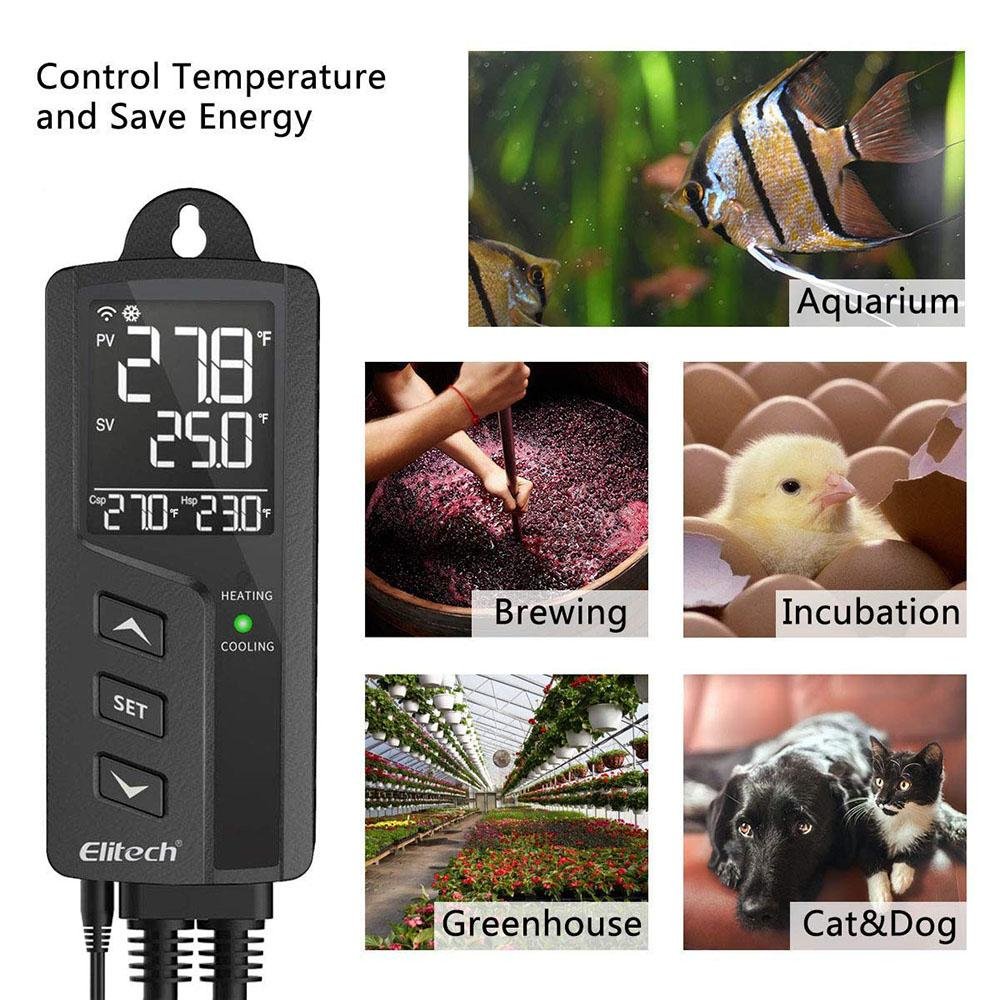

Application
This controller can be widely used under various scenarios and electric appliances that need automatic temperature control such as homebrew, aquarium, incubation pet breeding, seedling heat mats culture fermentation, etc.
