reServer Jetson inference Edge AI Centre

Description

reServer Jetson, as a milestone product of rethings Jetson family, is extremely compact and powerful. This smart tiny server is able to work easily and efficiently from the edge to the cloud.

reServer Jetson is a powerful inference server on the edge powered by the NVIDIA Jetson NX 16GB. It delivers up to 21 TOPS, making it ideal for high-performance computing and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX 16GB the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

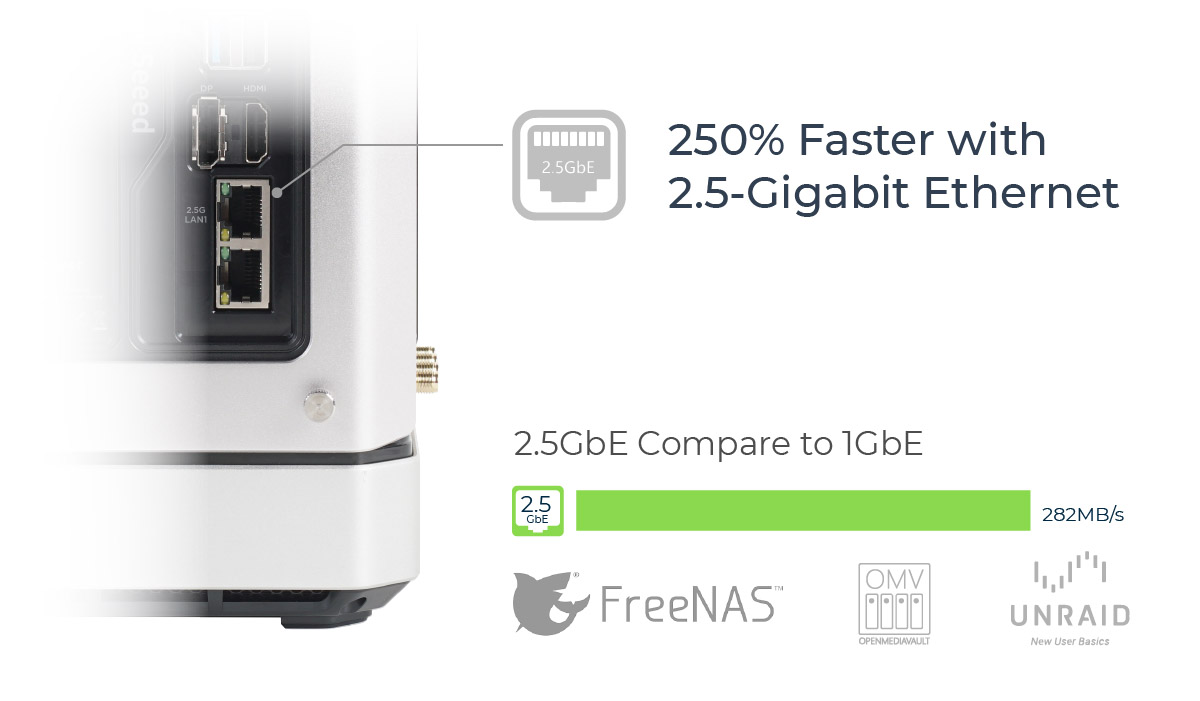

reServer comes with one high-speed 2.5-Gigabit Ethernet port and supports hybrid connectivity including 5G, LoRa, BLE and WiFi. It enables up to 250% faster performance than Gigabit Ethernet with compatible hardware and provides the transition speed up to 5Gbps using link aggregation.

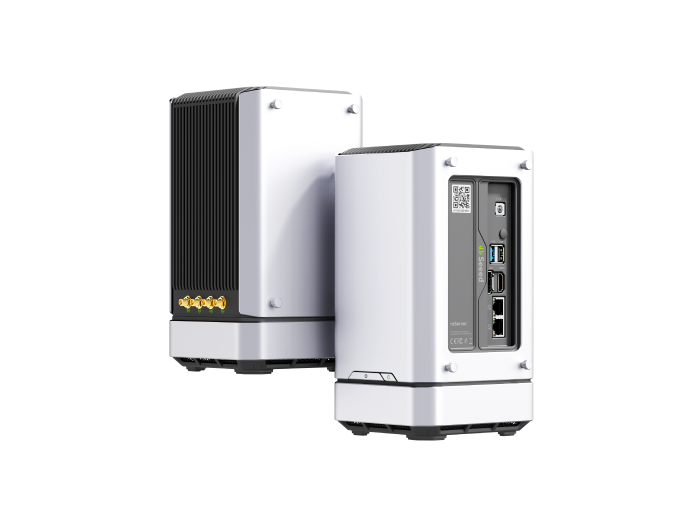

With an overall dimension of 132mm*124mm*233mm, reServer Jetson is only around 1/10 of the size of an ordinary computer case which makes it possible to place reServer on a table, on a shelf, on any surface you want it to be. The neat structure of reServer also makes it simple to access the hard drives, memory and mPCIe slots which allows for easy installation, upgrade and maintenance.

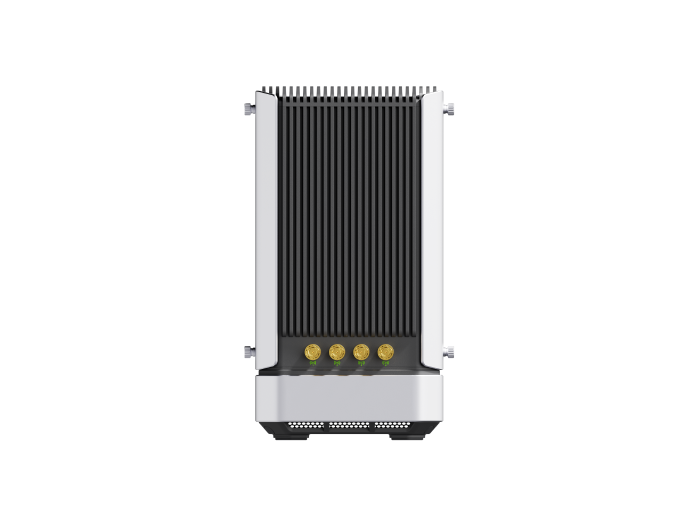

reServer is equipped with a quiet cooling fan as well as a large heatsink to ensure silent and stable operations under heavy loads while providing excellent heat dissipation.

Having dual SATA III 6.0Gbps data connectors, reServer is able to equip up to two 3.5” SATA internal hard disk drives or two 2.5" SATA internal hard disk drives to acquire more storage.

reServer Jetson supports LoRa technology which makes it possible to connect to a wide range of sensors. It can be applied as an edge computing center for all scenarios that require vast data to collect and process at the edge. The expandability of 5G technology(M.2 B Key) is useful in places where there isn’t always reliable internet connectivity, such as on a farm or in a location with spotty service.
*To get LoRa and 5G connectivity, optional modules are needed.

Application

• Small office, home office server
• Industrial Automation
• Robotics
• Healthcare
• Smart Agriculture
• NAS

Download the specification documents
