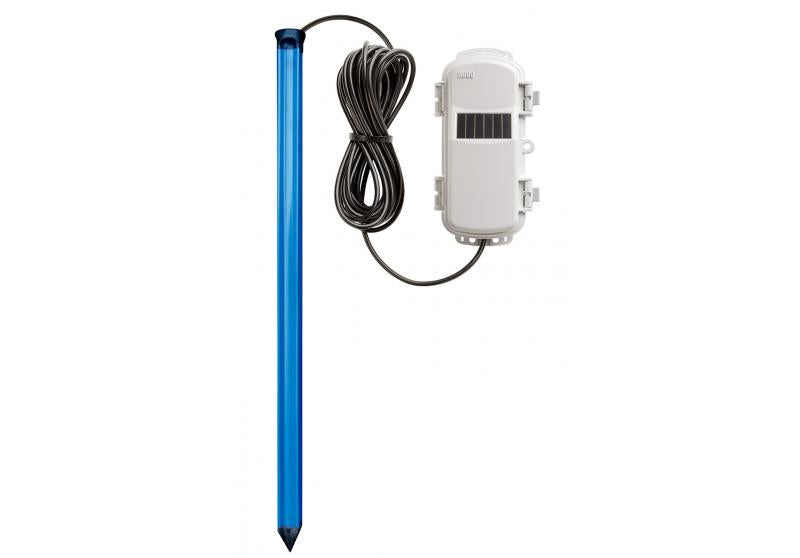

HOBOnet Multi-Depth Soil Moisture Sensor
The HOBOnet Multi-Depth Soil Moisture Sensor is a wireless sensor that works with the HOBOnet system to measure soil moisture and soil temperature at multiple depths with a single probe, for fast and easy installation. This durable sensor is available in three probe lengths for measurements namely the 45 cm (18 in) three-segment probe, the 60 cm (24 in) four-segment probe to the 90 cm (35 in) six-segment probe. The HOBOnet system is a cost-effective and scalable wireless sensor network for web-enabled monitoring of field conditions for applications such as crop management, research, and greenhouse operations. And because it’s wireless, you can deploy a network of sensors to easily monitor multiple points with a single system, while avoiding the risk of long cables that can interfere with field operations. Sensors are easily linked to the network, and data can be accessed through HOBOlink®, Onset's innovative cloud-based software platform.
Download the specification documents
Highlighted Features
Sensor Features

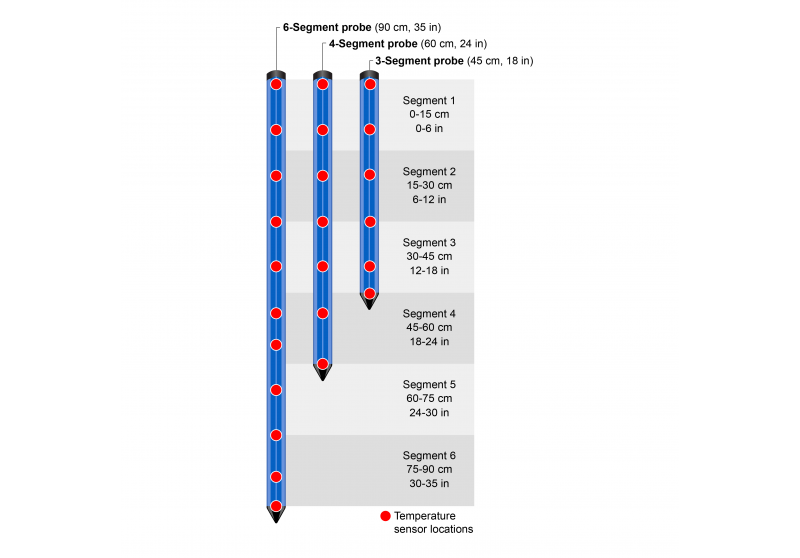

- Available in three probe lengths: 45 cm (18 in), 60 cm (24 in), and 90 cm (35 in)
- Soil moisture measurements over entire probe segment lengths
- Soil temperature measurements at multiple points
- The largest volume of influence per measurement (2 L volume of influence per 15 cm segment)
- Advanced filtering of 400,000 pulses per measurement eliminates outlying readings and provides precise, repeatable soil moisture data
- Polycarbonate housing and epoxy-sealed circuit board protect vital components during installation and throughout the deployment
- Easy installation with minimal soil disturbance and no digging required when using the optional pilot rod and slide hammer
Wireless Features
- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
In what environment does this operate?
This operates in an outdoor environment.
What measurements does this support?
The supports the following measurements: Soil Moisture and Soil Temperature
