S2100 IP68 Waterproof Data Logger Junction Kit
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
S2100 IP68 Waterproof Data Logger Junction Kit
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

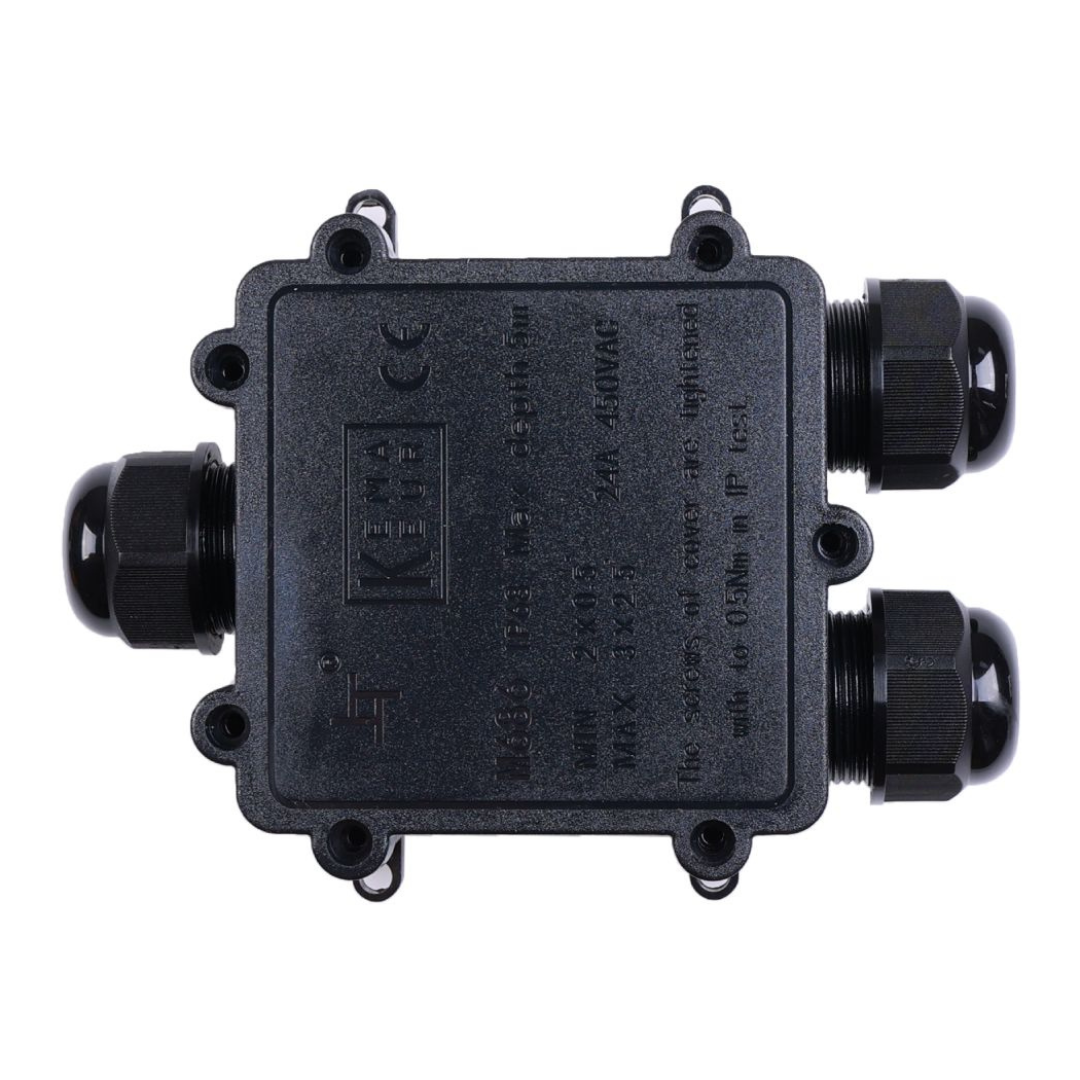

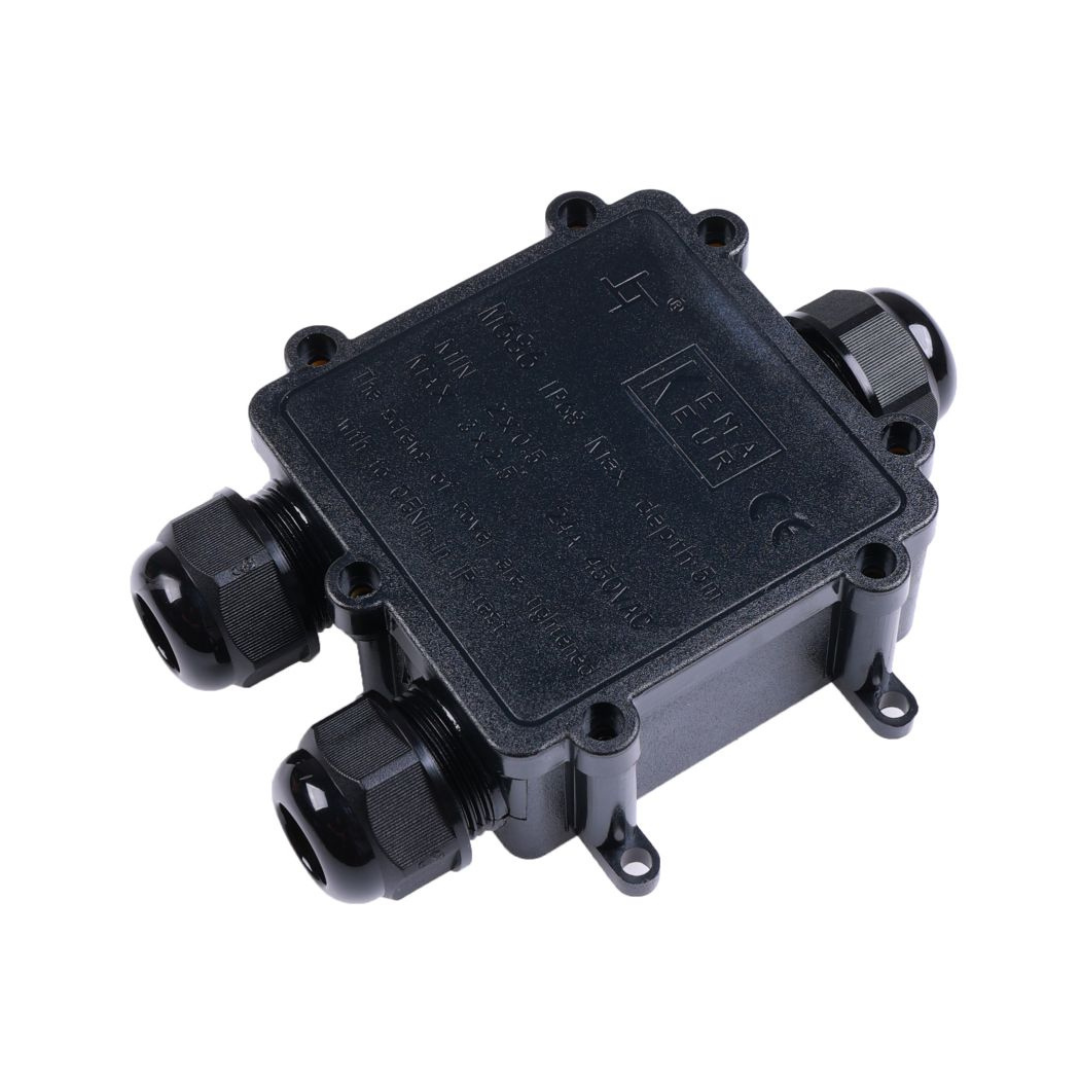

With an IP68 waterproof rating, the junction box can be used to connect the S2100 Data Logger with an external 12V power supply. No additional tools, welding, or cutting of cables is required which makes connection easier and safer.
Highlighted Features
- Industrial Standard: IP68 high waterproof level
- Premium Material: premium plastic enclosure

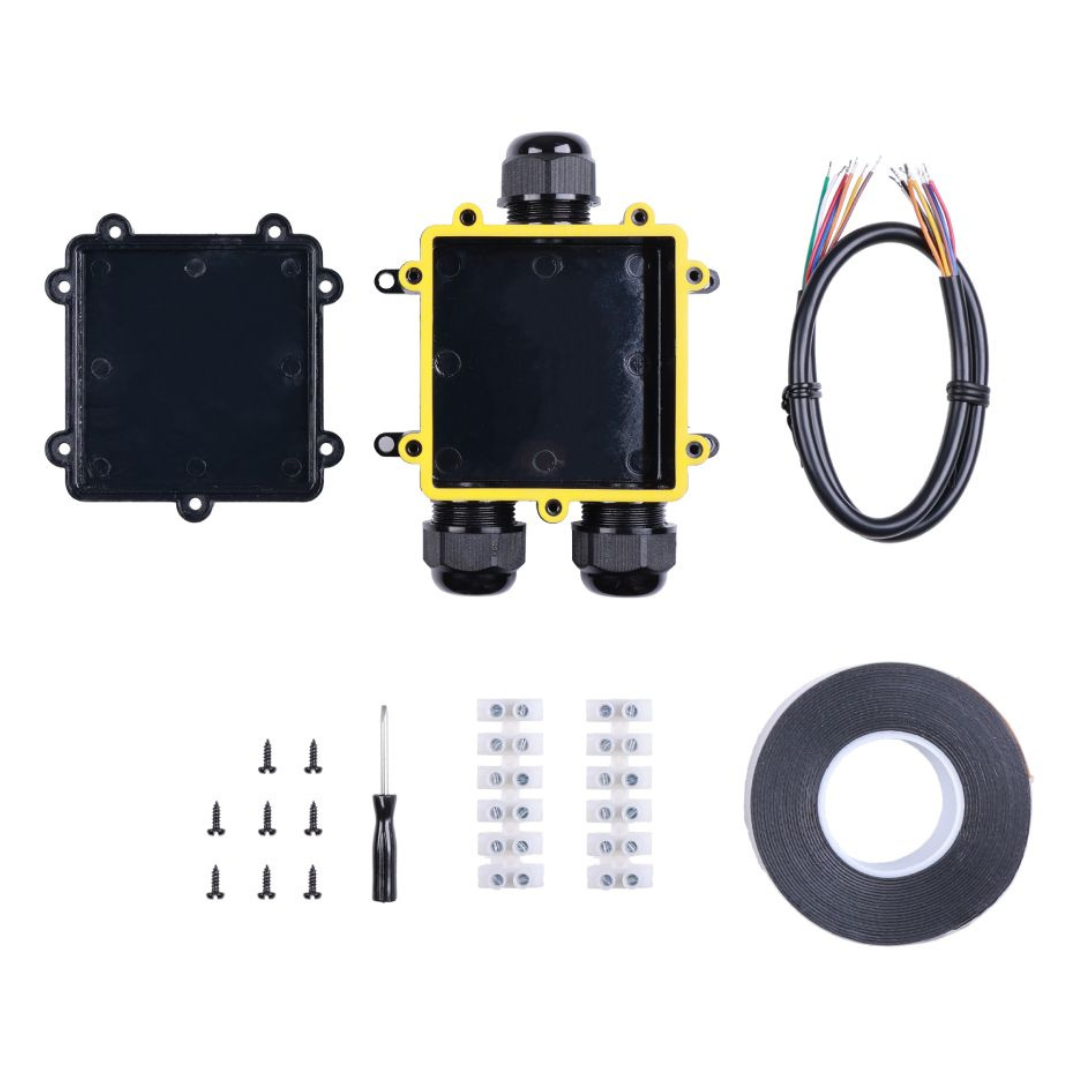

- Easy to Install: kit includes a screwdriver, waterproof tape, screws, etc. for quick installation and can be installed horizontally or vertically as an external junction box
Steps to Connect Data Logger with Junction Box
1. Wire to the terminal of the Data Logger.
2. Wire to the terminal of the junction box.
3. Connect the sensor wire to the junction box.
4. Connect the 12V DC adapter to the power supply.
Documentation
Specifications
| Specification | Details |
|---|---|
| Model | Junction-Box-Kit |
| Material | |
| - Housing | PC |
| - Conductor | Brass |
| IP Code | IP68 |
| Working Temperature | T105 |
| Rated Connecting Capacity | 0.5 ~ 2.5mm² |
| Available Cable Diameter | 4-8mm (Rubber Cable) |
| Waterproof Test | 10M for 150 hours |
| Product Size | 130.14mm x 80.5mm x 35.3mm |
| Certifications | KEMA, ENEC, CE, UKCA, CB, SAA, ROHS |
