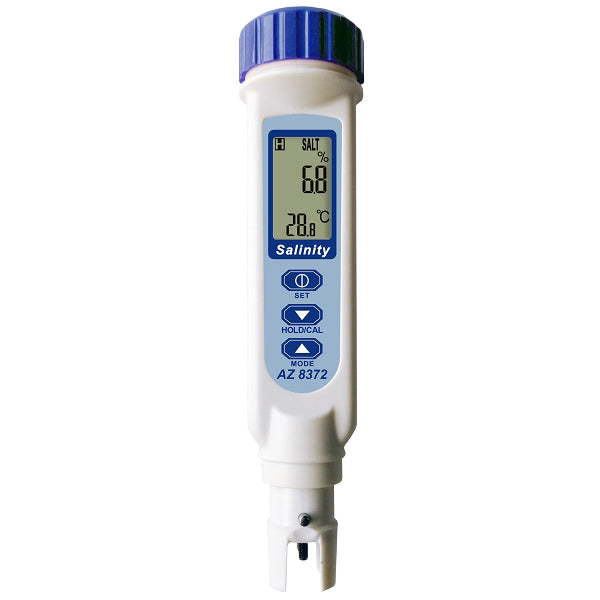

The 8372 AZ Salinity Meter can measure the Salinity and Temperature for the water solution target. The units of Salinity are including ppt, %, and specific gravity (S.G.). The user only needs one touch to switch different units for different measuring purposes.
The 8372 AZ Salinity Meter is designed as auto-ranging since powered on. Auto-ranging determines and selects a range that gives the User the greatest resolution and accuracy.
Highlighted Features
-
Big LCD with dual display to update measuring
-
Waterproof IP65 membrane keypad
-
Wide measuring range and Dual display with ATC
-
Multiple parameters to fulfill all kinds of applications.
-
Pen size, easy to fit into a pocket
-
Auto-ranging in high-concentration solution
-
Calibration values are adjustable & calibration information can be reviewed
-
Quick response and easy to calibrate
-
Multi points calibration
-
Low-cost design with high accuracy
-
Built-in NaCl Conductivity to TDS conversion factor
-
Auto power off
-
Low battery indicator
-
Data hold to freeze readings
-
C/F Temperature unit switchable
-
Powered by 4pcs LR44 batteries
Application
The Salinity measuring function of 8372 AZ Salinity Pen could proceed with the calibration easily by the user. Its pen-type housing design could let users take or carry it easily. It could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
8372 AZ Salinity Pen was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
Specification
| Model | 8372 |
| Salinity Measuring Range | 0~9999 ppm or 10.0~100.0 ppt or 0.0%~10.0% or 0.950~1.080 (S.G.) based on NaCl |
| Salinity Accuracy | ±1% F.S ±1 digit |
| Salinity Resolution | 1 ppm or 0.1 ppt or 0.1% or 0.001 (S.G.) |
| Temperature Measuring Range | -5~60.0℃ |
| Temperature Accuracy | ±0.5℃ |
| Temperature Resolution | 0.1 |
| ATC | ATC |
| TDS Factor | Built-in NaCl Conductivity to TDS conversion factor |
| Temperature Coefficient | Fixed at 2.1%/℃ |
| Normalization Temperature | Fixed at 25℃ |
| LCD Size | 30(L) * 18(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | 0~60℃ |
| Storage RH% | Humidity ＜90% |
| Sensor Life Time | >6 months (with good maintenance) |
| Meter Size | 165(L) * 35(W) * 32(H) mm |
| Weight | ~115g |
| Battery | LR44 *4 PCS |
| Standard Package | Meter, Batteries, Manual, Paper Box |
