Onset
Self-Describing 4 to 20 mA Input Cable Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours

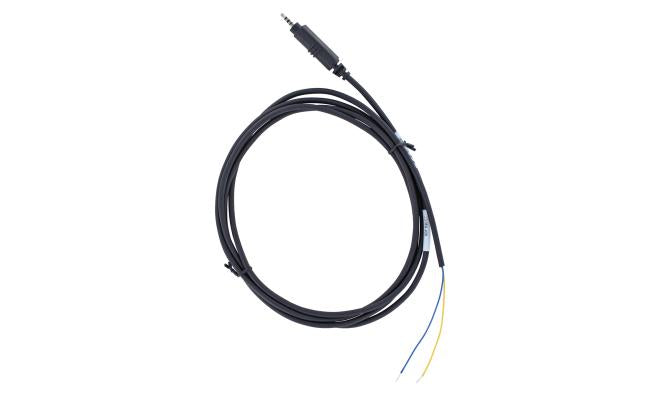

Self-Describing 4 to 20 mA Input Cable Sensor
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this 4-20 mA input cable offers integrated strain relief to keep it connected to the logger, and it features Self-Describing technology to automatically communicate configuration information to the logger.
Highlighted Features
- Self-Describing technology for quick, easy setup

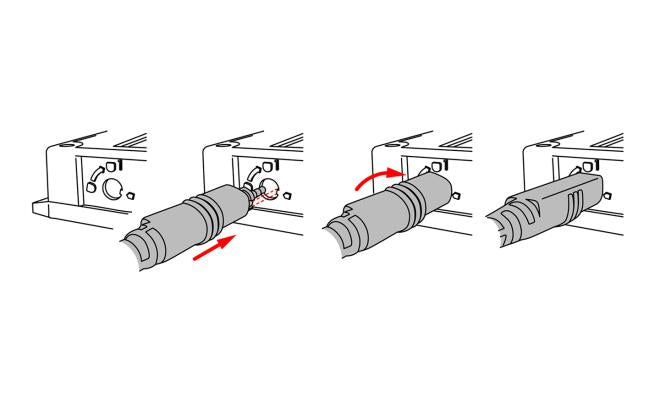

- Locking jack to ensure the cable is connected and stays connected
- Measurement range of 0 to 20.1 mA
- Accuracy of ±0.001 mA ± 0.2.% of absolute current
- Cable length: 182.88 cm (72 in)
Specifications
| Measurement Range | 0 to 20.1 mA |
| Accuracy | ±0.001 mA ±0.2.% of absolute current |
| Resolution | 0.002% of the full scale |
| Cable Length | 182.88 centimeters (72 inches) |
