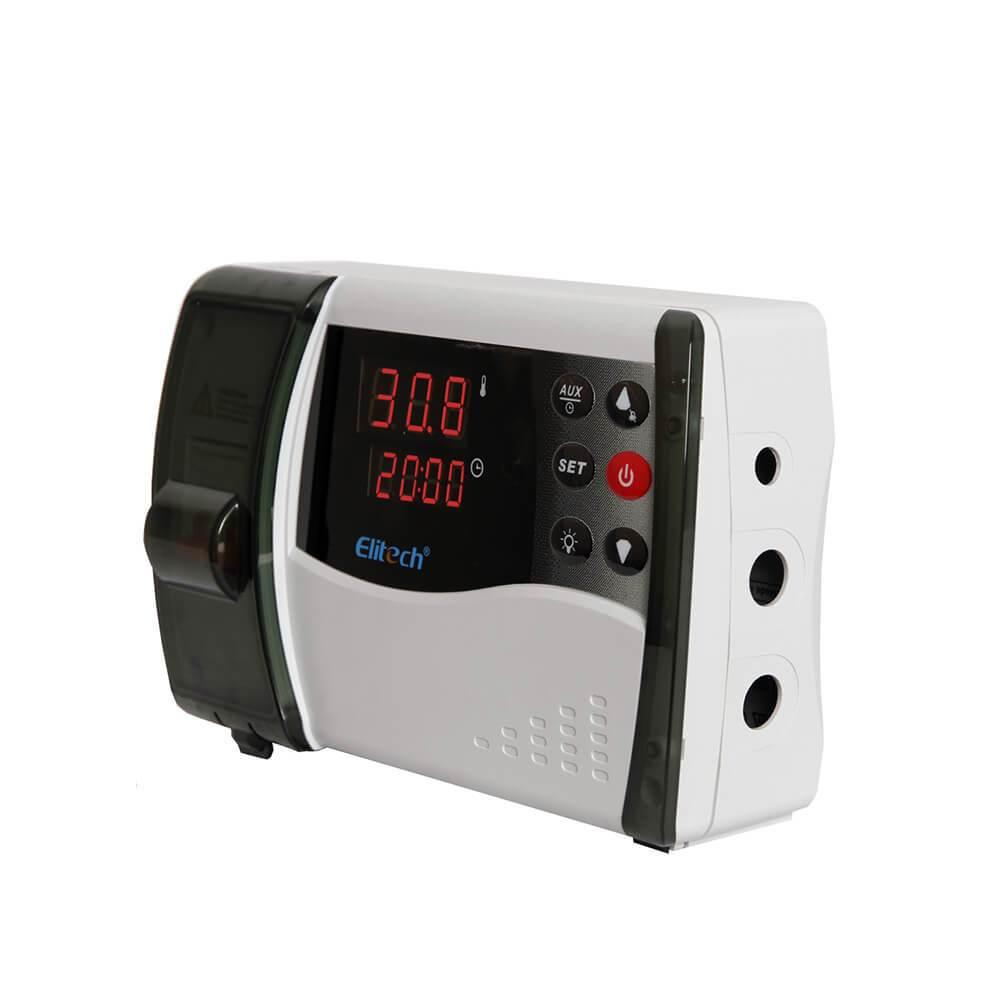

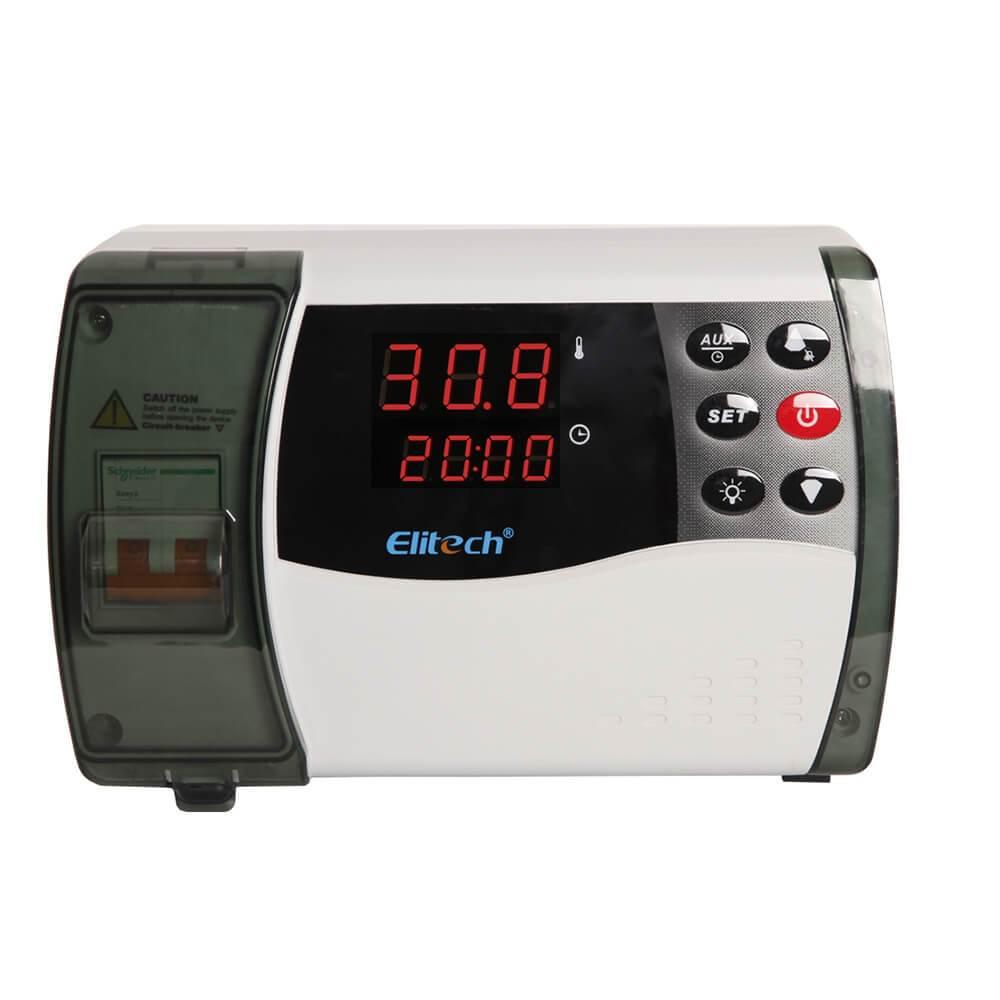

Elitech ECB-1000Q electric control panel is a plastic shell electric control box with a single-phase power supply. suitable for temperature control with refrigeration, defrost, fan, light, and alarm output. The compressor relay capacity is 50A/240VAC, and can directly drive a single-phase compressor 3HP. With Force defrost ultra-high temperature alarm, ultra-low temperature alarm, sensor fault alarm, and time display functions. It also has the function of Fahrenheit-Celsius conversion.
Elitech
Single-Phase Plastic Electric Control Panel
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
Single-Phase Plastic Electric Control Panel
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Elitech ECB-1000Q electric control panel is suitable for temperature control of commercial and industrial refrigeration, hotels, household freezers, refrigerators, small and medium cold storage, and refrigeration devices of 3HP and below.
Three-way signal input: temperature probe sensor, defrost probe sensor, door switch.
Five-way control output: compressor, defrost, fan, light, alarm.
Documentation
Highlighted Features
- Fahrenheit and Celsius conversion function.
- The large-screen blue digital tube displays all the information, making it more convenient to use.
- The shell is made of ABS flame retardant material, which is waterproof and makes the electric control box more stable and reliable.
- Password protection, avoid misoperation by personnel.
- Waterproof, dustproof, and shockproof.
- High/Low-temperature alarm, sensor fault alarm.
- Force defrost function.
- Beautiful appearance, simple operation.
- Energy night saving mode.
Function
Specifications
| Parameter | Specification |
|---|---|
| Model | ECB-1000Q |
| Power Supply | 220VAC±10%; 50/60Hz |
| Overall Power Consumption | <5W |
| Temperature Measurement Range | -45~99℃ |
| Temperature Control Range | -40~90℃ |
| Temperature Measurement Accuracy | ±1℃ |
| Resolution | 0.1℃/ 1℉ |
| Relay Capacity (Compressor) | 50A/240VAC, 3HP/240VAC (Max) |
| Relay Capacity (Defrost) | 8A/220VAC |
| Relay Capacity (Fan) | 5A/220VAC, 500W (Max) |
| Relay Capacity (Light) | 5A/220VAC, 500W (Max) |
| Relay Capacity (Alarm) | 5A/220VAC |
| Storage Temperature | -20℃～75℃ |
| Product Size | 261167.592 mm |
| Sensor Type | NTC (10KΩ/25 °C, B-3435K) |
