Onset
Smart Barometric Pressure Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Smart Barometric Pressure Sensor
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
A weatherproof smart sensor with a measurement range of 660 MB to 1070 mb (19.47 to 31.55 inHg); can perform measurement averaging to obtain the highest accuracy.
The operating temperature range for this sensor is -40° to 70°C (-40° to 158°F). Compatible with the HOBO Remote Monitoring System and HOBO Micro Station, this sensor is mounted outside the station enclosure.
Documentation
Quick Start GuideUser Manual
Highlighted Features
- Weatherproof housing enables mounting outside the station enclosure, so the station can maintain its weatherproof seal without having to be vented to the atmosphere
- Measures barometric pressure over a wide range

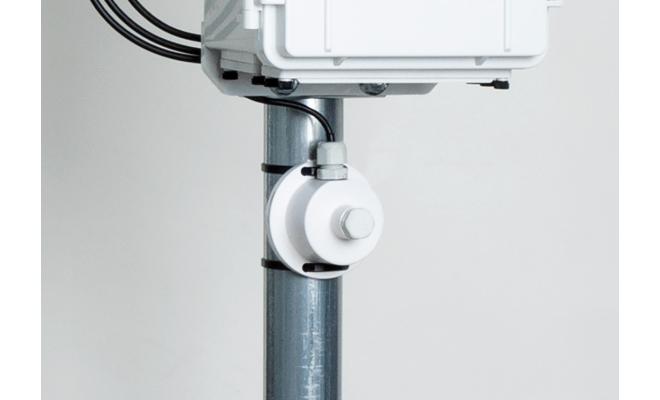

- Includes zip ties for mounting on a mast; can also be mounted on a flat surface with screws
Specifications
Measurement range: 660 to 1070 mbar (19.47 to 31.55 in. Hg)
Accuracy: ±3.0 mbar (0.088 in. Hg) over full pressure range at 25°C (77°F); maximum error of ±5.0 mbar (0.148 in. Hg) over -40° to 70°C (-40° to 158°F)
Resolution: 0.1 mbar (.003 in. Hg)
Drift: 1.0 mbar (0.03 in. Hg) per year
Operating temperature range: -40° to 70°C (-40° to 158°F)
Environmental rating: Weatherproof
Dimensions: 6.4 cm (2.5 in) diameter x 5.1 cm (2 in) height
Weight: 96 gm (3.4 oz)
Bits per sample: 12
Number of data channels: 1 *
Measurement averaging option: Yes
Cable length available: 50 cm (20 in)
Length of Smart Sensor network cable: 50 cm (20 in)
Specification: This product meets CE specification EN61326-1 criterion C for ESD, criterion C for Radiated Immunity, criterion C for Fast Transient, criterion B for Conducted Immunity, criterion A for Power Frequency Magnetic Fields, and Class B for Radiated Emissions Group 1. To minimize measurement errors due to ambient RF, use the shortest possible probe cable length and keep the probe cable as far as possible from other cables.
* A single HOBO Weather Station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
