AZ Instrument Corp.

Class ll Sound Level Calibrator 13.22mm

Sale priceR 2,822.40
SKU: VZ8930BBZ

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Class ll Sound Level Calibrator 13.22mm

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

When a microphone from a sound level meter is inserted into this calibrator, the sound level meter picks up the signal and displays the signal in dB (decibel) units. The sound level meter should be adjusted (if necessary) to match the calibrator's output signal as closely as possible.

The generated sound pressure level is equal to 94dB, 104dB, and 114 dB at 1000 Hz frequency. The 1000 Hz frequency allows calibrating sound level meters with any frequency weighting (LIN, A, B, ...), without applying any correction factor.
It can be conveniently used both in a laboratory and in the field. The 114 dB sound level allows performing calibrations even in high background noise environments.

Highlighted Features

  • Professional 8930 AZ Sound Level Meter Calibrator features:
  • Meets IEC 60942:2018, type 2 class standard
  • Stay accurate even in extreme room humidity conditions and high-altitude places
  • Suitable for all sound level meters with microphone head mechanical compliant with IEC 61094-1 or IEC 61094-4, such as 23.8/13.2/12.2 and 7mm
  • Calibration frequency at 1K Hz with three levels 114dB, 94dB, and 104 dB
  • Vivid LED display with stability and low power indicator
  • Power up by batteries, easy to carry around
  • Compatible with all AZ-made sound level meters, including models 8922, 8921, 8925 and 8928

Applications

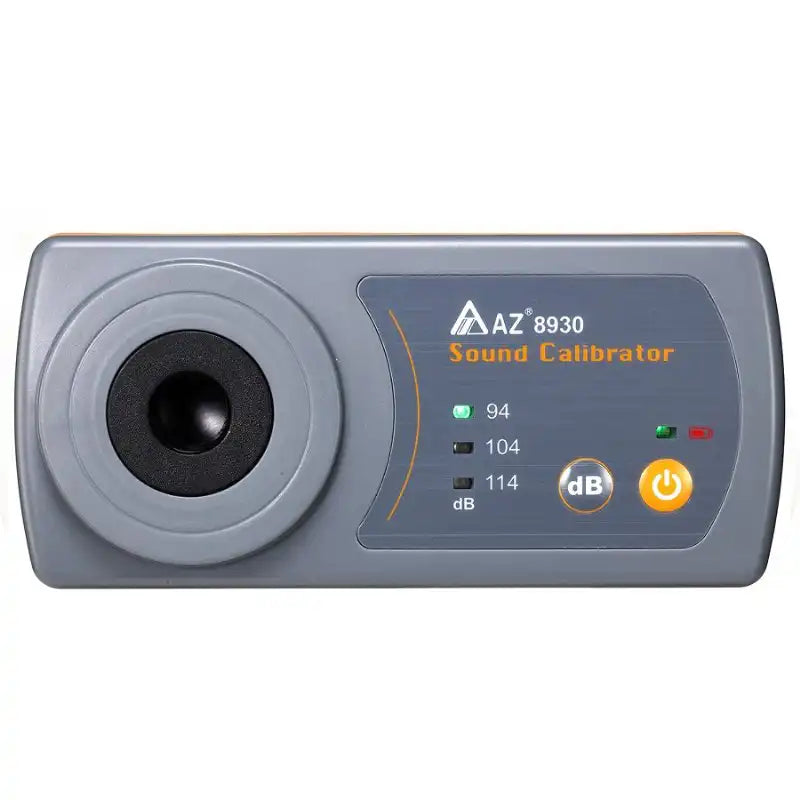

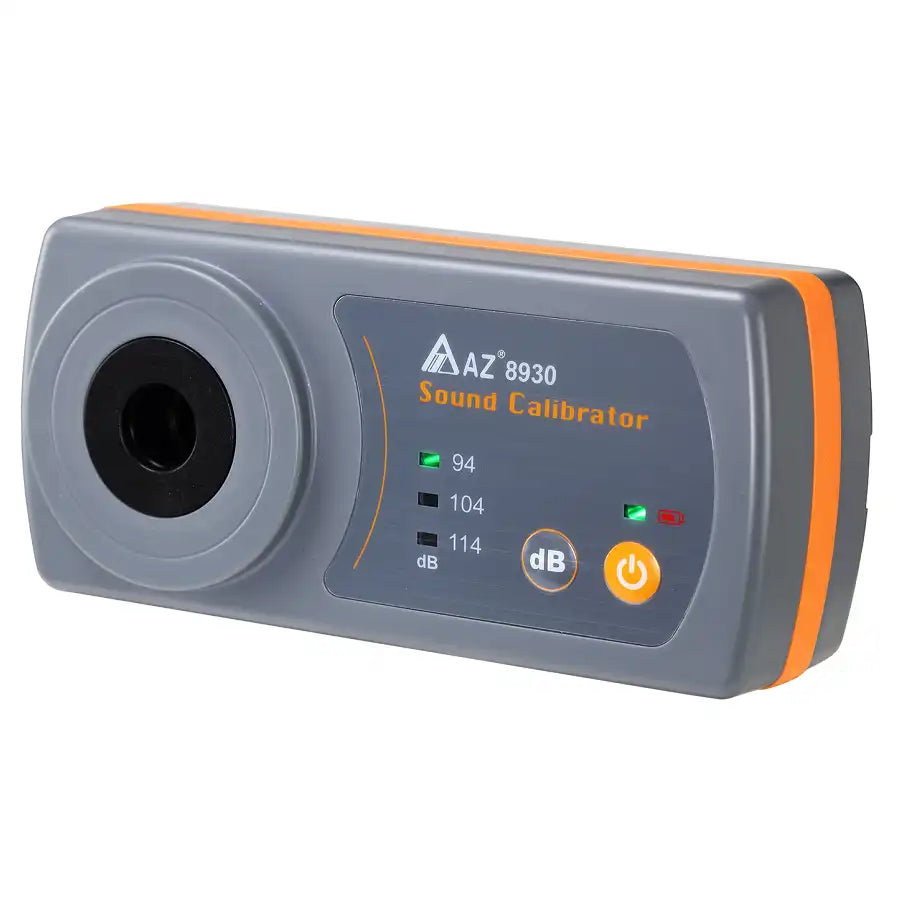

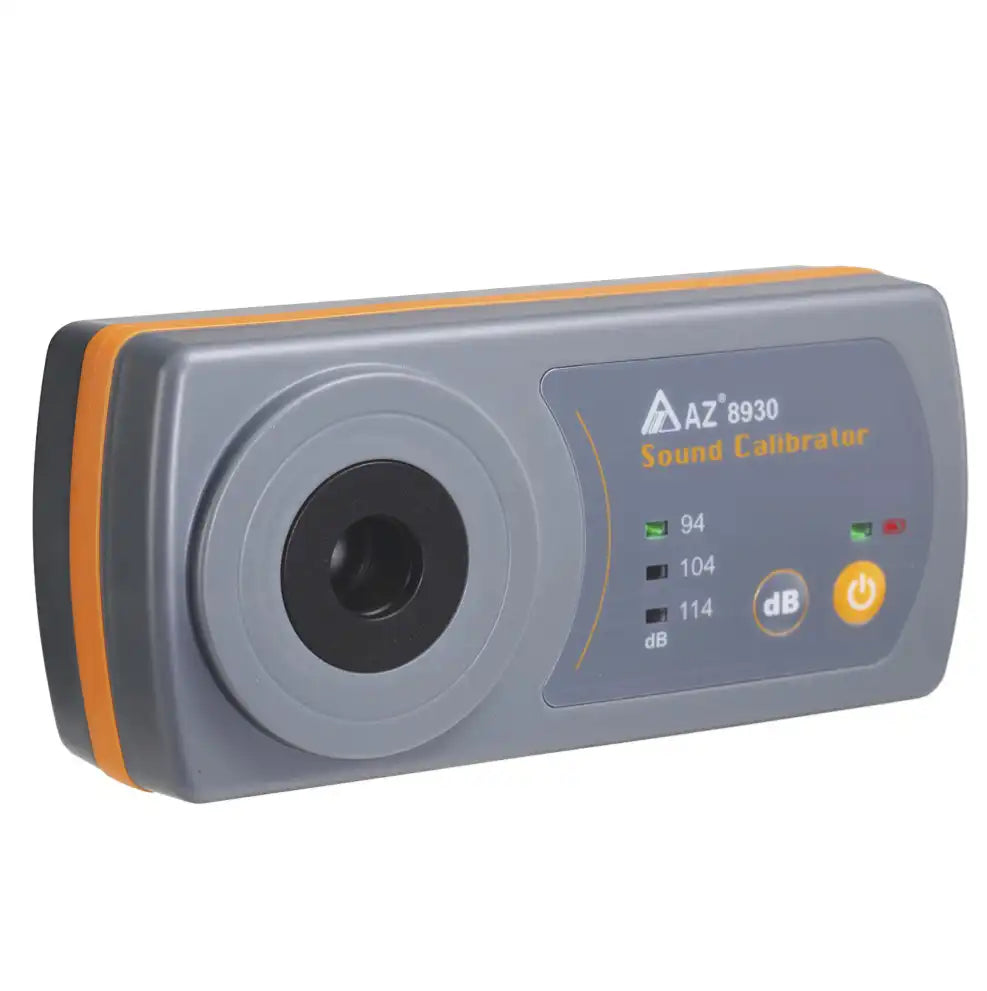

The compact 8930 AZ Sound Level Meter Calibrator is a portable, battery-operated sound source, suitable for many portable sound level meters.

The Digital 8930 AZ Sound Level Meter Calibrator was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring Instrument.

Specifications

Model 8930
Calibration Frequency 1000 Hz
Frequency Accuracy ±1.7%
Sound Pressure Level 94 dB, 104 dB, 114 dB
Sound Pressure Accuracy ±0.4 dB
Stabilization Time 10 Seconds
Total Distortion <3%
Ambient Condition Influence:
Temperature and Humidity
Influence
Static Pressure Influence

<0.4 dB at 0~40℃, 25~90% RH
<0.1 dB at 65~108 kPa
Stability Levels
Short-term Stability (<60s)
Stability after 1 year with normal use

±0.15 dB
±0.35 dB
Battery Life Time 50 hours typical
LED Indicator 1 Green/Red: ready/low power
3 Green: 114/104/64 dB
Operating Temperature 0~40℃
Operating RH% 25~90% RH
Storage Temperature -20~50℃
Storage RH% Humidity <90%
Meter Size 60 (L) * 130(W) * 37.5 (H) mm
Microphone Head Cavity
(dia. mm)
8930A 8930B 8930C 8930D
23.8mm 13.2mm 12.2mm 7mm
Weight ~400g
Battery AAA Alkaline Batteries * 2 PCS
Standard Package Meter / Battery / Manual / Paper Box
