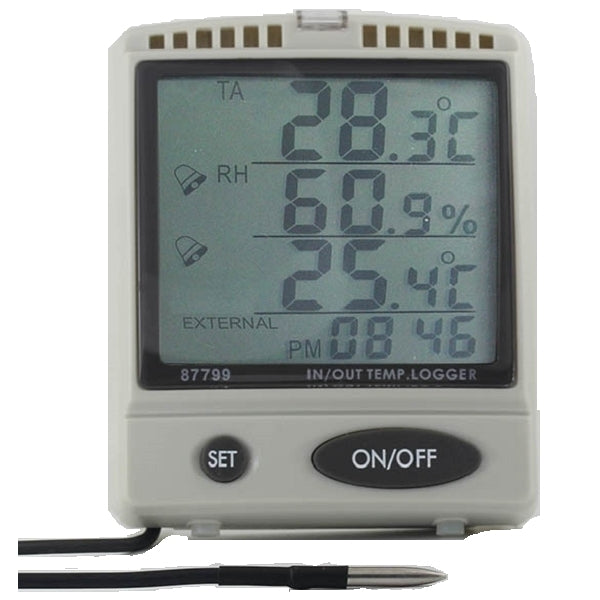

The 87799 AZ Temperature SD Card Monitor with the External Temperature Sensor can measure the dual temperature and Humidity Value, and it could save the temperature & humidity value into the SD card as the TXT format, and the user could proceed with their following analysis by the Excel or other software. The SD card could be inserted and taken off easily. You would not need to install special software to read the temperature records. It could be operated easily in different PC operation systems..
Highlighted Features
-
Simultaneously display temperature and humidity
-
Advanced SD card logging design for continuous recording
-
Easy-to-read super big LCD display
-
Check outdoor Temp. conditions through external probe
-
Programmable danger zone for warning purpose
-
Design with capacitance type RH sensor to get accurate and quick reading
-
Temperature unit C/F switchable
-
Max / Min function to review data
-
Battery low indicator
-
Real time display (Hour & Minute, AM/PM)
-
Desktop and wall mount for long time monitor
-
Audible beeper and bright red LED for danger zone warning
-
Long battery life (via alkaline battery)
- No logging: One year
- Logging: One month (sampling rate: 1 min, 1G SD card)
Applications
The 87799 AZ Temperature SD Card Monitor with the External Temperature Sensor has a big LCD to show the real-time temperature, humidity, and time as the environmental monitoring clock. It could be used for the warehouse, workspace, laboratories, basement, wine cellar, or other controlled environments.
Specifications
Model | 87799 |
Temperature Range | -10~70℃ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±1℃ |
Humidity Range | 0~99.9% RH |
Humidity Resolution | 0.1% RH |
Humidity Accuracy | ±3%RH (at 25℃ 10~90%RH, others ±5%RH) |
External Temp. Range | -10~70℃ (Display: -30~70℃) |
External Temp. Resolution | 0.1℃, 0.1℉ |
External Temp. Accuracy | ±0.6℃(0~50℃), ±1.2℃(-10~0℃, 50~70℃),No Specified for -30~70℃ |
External Temp. Probe Size | Dia 4 mm* Length:25 mm |
External Temp. Probe Cable | 2M long, Material: PVC |
SD Card | SD Card or SDHC card (MMC and SDXC cards are not compatible) |
Sampling Rate | 1 to 720 mins. Default:10 mins |
Beeper (dB) | ~65dB |
RH% Self Calibration | Yes, Via slat chamber |
Power Consumption | <0.4mA |
LCD Size | 70(L) * 63(W) mm |
Operating Temperature | 0~50℃ |
Operating RH% | Humidity <90% |
Storage Temperature | -10~50℃ |
Storage RH% | Humidity <90% |
Meter Size | 110(L) * 91(W) * 30(H) mm |
Weight | ~200g |
Battery | AA*3PCS or 5V Adaptor |
Standard Package | Meter, Adaptor, Manual, Paper Box, SD Card |
