This data logger is a plug & play device, meaning that no logger-specific PC software and USB drivers are required. This logger is completely user re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name. The dual colour LEDs are used as status and alarm indicators.
USB logger, plug & play, accurate %RH sensor
USB 2.0 connector
Software & driver are not required for any operation
Automatically generate a PDF and Excel report while plugged into a computer
High-accuracy thermistor sensor
Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name
Compact, light, and IP65 (not including sensor area)
Big LCD provides an excellent viewing experience
Count key to review max. & min value of logged data
Dual color LED provides instant status indicator: REC and High/Low temperature
Large memory capacity, 24000 Temp. & 24000% RH points
Powered by 2 pcs CR 2032 battery, easy replacement.
Mark key to providing 8 marking during the transition period
The PDF file contains a summary, graph, and detailed data list
- EN12830 and RoHS compliance

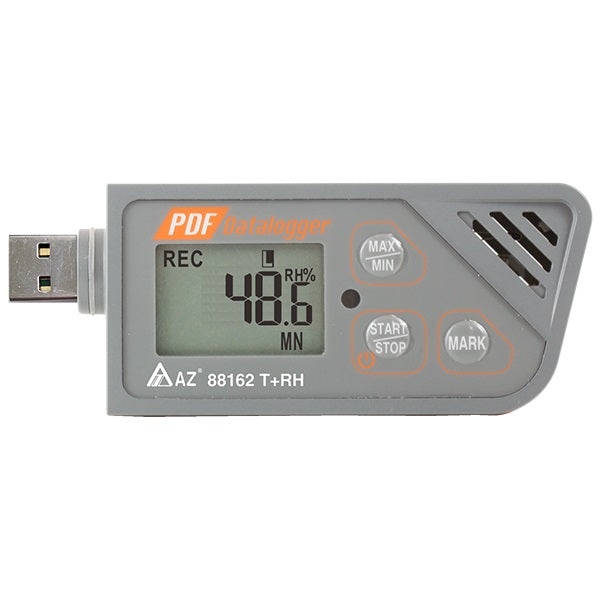

The 88162 AZ Digital USB interface Data Logger can measure and record the Humidity and Temperature value. It can export the report in Excel or PDF format depending on the User’s purpose.
The 88162 AZ USB Temperature & RH Recorder can plug into a PC easily, and would not need to install any software in advance.
The 88162 AZ USB Data Logger could be used for the warehouse, workspace, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/logistic/processing, incubation process, hatcheries, art galleries, museum, HVAC field or another controlled environment.
It can be met with the formal tracking purpose of transportation, especially for the Pharmaceutical industry, hospitals, labs, factories, or other industrial environments. It could be the best tool for quality control requirements.
The 88162 AZ Humidity and Temperature Data logger was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
|Temperature Range||NTC Thermistor, -30~70℃, -22~158℉|
|Temperature Resolution||0.1℃, 0.1℉|
|Humidity Range||Capacitor, 0.1~99.9% RH|
|Humidity Resolution||0.1% RH|
|Humidity Accuracy||±3% (at 25℃. 10~90%), others ±5%|
|Sampling Points||24K:T & 24K:RH|
|Operating Temperature||-30~70℃ (Logging Status); Room Temp. (PC Mode)|
|Operating RH%||Humidity ＜90%|
|Storage RH%||Humidity ＜90%|
|Battery||2PC 3.0V CR2032, 3 months life times|
|Sampling Interval||30 seconds, 5, 10, 30, 60, 90, 120 minutes|
|Start Delay||0, 5, 30, 45, 60, 90, 120 minutes and 24 hours|
|Alarm Range||Programmable from -30 to 70℃|
|Alarm Delay||0, 5, 30, 45, 60, 90, 120 minutes|
|Alarm Type||Single Event, Cumulative, Disable|
|Operation Keys||3 Keys (Start/Stop Key & Mark Key & Count Key)|
|LED Indicator||REC, High /Low Alarm|
|Standard Package||Logger, Batteries, Manual, Paper Box|
|Meter Size||110 (L) * 45 (W) * 17 (H) mm
