FlexSmart TRMS Module w/ Modular Plug

Sale priceR 3,727.36
SKU: S-FS-TRMSA-D

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

FlexSmart TRMS Module w/ Modular Plug

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

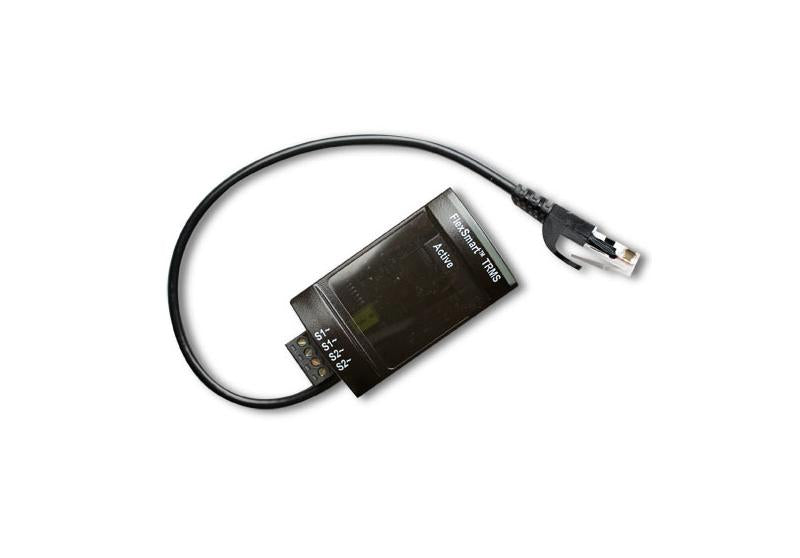

A 15-bit two-channel module, with modular plug, that accepts an input range of 5mV to 512mV and is compatible with 333mV FS output sensors. Field wiring is 2-wire via screw terminals.

IMPORTANT NOTES:

  • If using the S‐FS‐TRMSA‐D with a U30‐GSM or RX3003-00-01, RX3004, or RX2100, the S‐FS‐TRMSA‐D should be located approximately 1 meter (3 ft) from the cellular station to avoid interference from the GSM radio. Use Smart Sensor extension cable, S‐EXT‐M002.
  • If using the S‐FS‐TRMSA‐D with an RX2100 or RX3004 and you are using both the TRMSA-D modules and smart sensors, then you are limited to a maximum of 2 TRMSA-D and any combination of smart sensors to reach a total of 13 data channels. For example, if there are two (2) TRMSA-D modules (4 data channels) in use with the RX3000 or RX2100 station, then this will leave nine (9) additional data channels for smart sensors.

Documentation

Quick Start Guide



Highlighted Features

  • 2 input channels of AC Current and/or Voltage
  • Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

Specifications



Parameter Description
Input Channels Two; AC-coupled
Field Wiring Two-wire via screw terminals on detachable connector, 16-24 AWG
Replacement Detachable Connectors Part of spares kit (A-FS-TRMSA-4P-1)
Input Range 5 to 512 mVRMS
Minimum Input Voltage 5mVRMS; Input voltages < 5mV will be clipped to zero (see graph below)
Maximum Input Voltage ±1V referred to AC- terminals (pins 2 and 4)
Input Frequency 50/60 Hz
Accuracy ±0.3% of reading +/- 0.5% of FSR
ADC Resolution 15 bits
AC Waveform <4 Crest Factor
Power Requirements +3.3V @ 3mA active, 6A sleep
Transfer Function
Measurement Averaging Option Yes

Applications

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The S-FS-TRMSA-D sensor supports the following measurements: AC Current and AC Voltage
