Onset
Type K 3.6m Probe Thermocouple Sensor
Quantity:

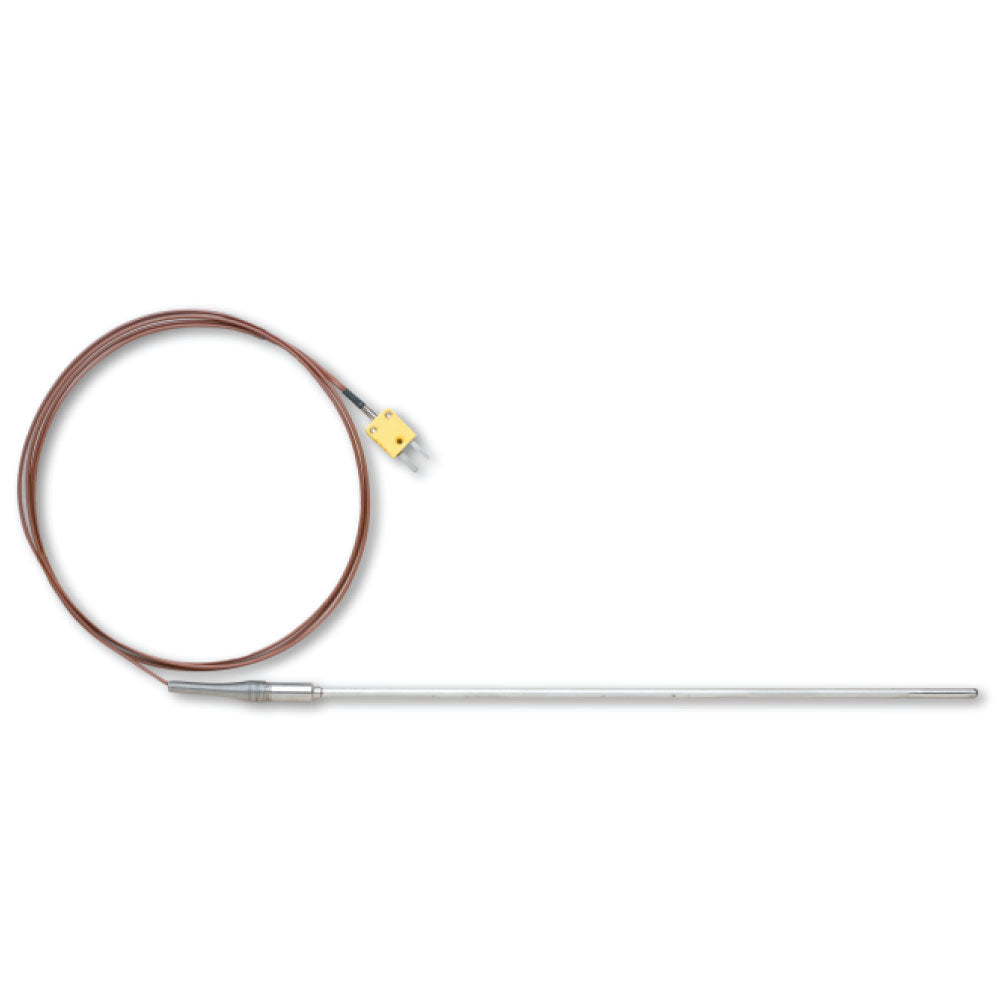

The TCP6-K12 Type K thermocouple probe can measure up to 900°C (1650°F) when connect to the UX100 thermocouple logger. The TCP6-K12 stainless-steel probe is 30cm (12") in length, 0.5cm (3/16”) in diameter and is mounted on a 2.5cm (1") handle with spring-type strain relief. The 1.8m (6 foot) 19-AWG cable meets ANSI specifications, complete with isolated thermocouple color-coded for type K (yellow) thermocouples.
Download the specification documents
Data SheetHighlighted Features
- High-temperature stainless-steel probe
- 19-AWG cable
- Response range of 0°C to 900°C (32°F to 1650°F)
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The TCP6-K12 sensor supports the following measurement: Temperature
