Ultra Low Temp Data Logger
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

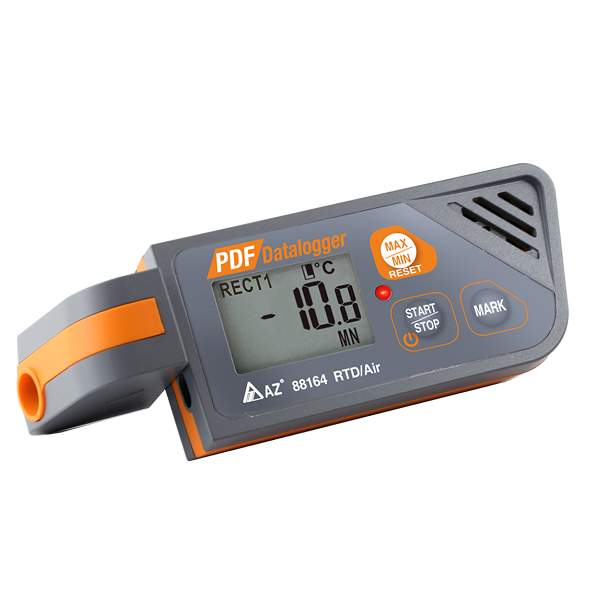

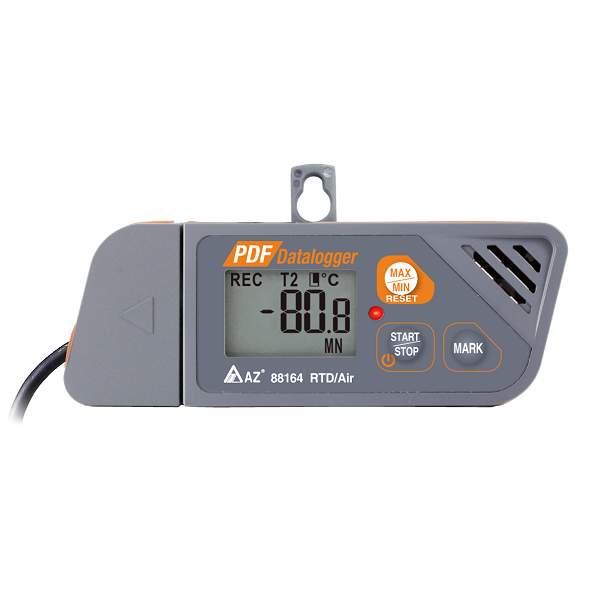

Ultra Low Temp Data Logger
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
This Ultra Low-Temperature Data Logger product could attach the external RTD Pt1000 temperature probe, which could insert into the container or other measuring object.
It can show the dual temperature values, including the air and sensor temperature. The logger can export the report in Excel or PDF format. Can plug into a PC easily, which would not need to install any software in advance.
It could be used for the warehouse, workspace, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/logistics/processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environments. It can be met with the formal tracking purpose of transportation, especially for the Pharmaceutical industry, hospital, lab, factory, or other industrial environments. It could be the best tool for quality control requirements.
Highlighted Features
- Plug & Play temperature data logger
- Software & driver are not required for any operation
- Automatically generate a PDF and Excel report while plugged into a computer
- The report contains a summary, graph, and detailed data
- Completely User re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password, and user name
- One Key operation to know the leftover battery lifetime
Applications

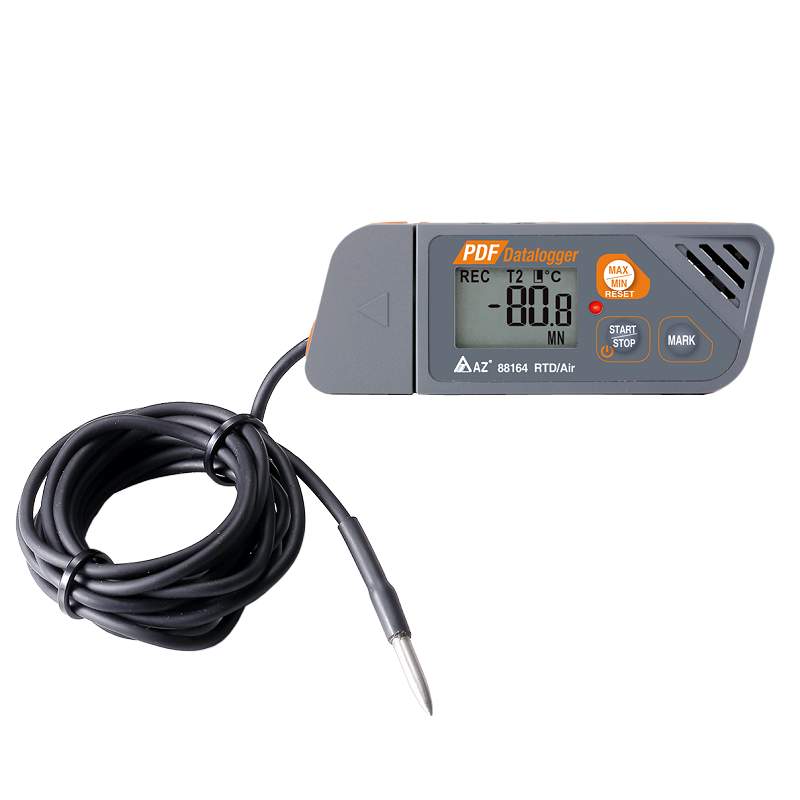

The 88164 AZ device could attach the external RTD Pt1000 temperature probe, which could insert into the container or other measuring object.
The 88164 AZ USB Ultra Low-Temperature Data Logging Devices can show dual temperature values, including the air and sensor temperature. The logger can export the report in Excel or PDF format.
The 88164 AZ USB Ultra Low-temperature logger can plug into a PC easily, and would not need to install any software in advance.
The 88164 AZ Cold chain temperature Data Logger could be used for the warehouse, workspace, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/logistic/processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environments.
It can be met with the formal tracking purpose of transportation, especially for the Pharmaceutical industry, hospitals, labs, factories, or other industrial environments. It could be the best tool for quality control requirements.
The 88164 AZ Ultra Low Temp. The recorder with RTD Pt1000 Probe was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Thermometer Data Logger Company.
Specifications
Model | 88164 |
Temperature Range | NTC Thermistor, -30.0~70.0℃, -22~158℉ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±0.5℃ |
External RTD Pt1000 Sensor Tempe. Range |
RTD Pt 1000 sensor,-100~120℃, -148~248℉ |
External temperature Resolution | 0.1℃, 0.1℉ |
External temperature Accuracy | ±0.5℃ |
Sampling Points | 24000 Int. and 24000 Ext. readings |
Operating Temperature | -30℃~70℃ (Logging Status); Room Temp. (PC Mode) |
Operating RH% | Humidity <90% |
Storage Temperature | -40~85℃ |
Storage RH% | >Humidity <90% |
Battery | 2PCS 3.0V CR2032, 3 months life times |
Sampling Interval | 30 seconds, 5, 10, 30, 60, 90, 120 minutes |
Start Delay | 0, 5, 30, 45, 60, 90, 120 minutes and 24 hours |
Alarm Range | Programmable from -30 to 70℃ |
Alarm Delay | 0, 5, 30, 45, 60, 90, 120 minutes |
Alarm Type | Single Event, Cumulative, Disable |
Operation Keys | 3 Keys (Start/Stop Key & Mark Key & Count Key) |
LED Indicator | REC, High / Low Alarm |
Standard Package | Logger, Batteries, Manual, Paper Box |
Optional Accessory | VZ88164PAZ external RTD Pt1000 temp. probe (for 88164 only) |
Weight | ~50g |
Meter Size | 110(L) * 45(W) * 17(H) mm |
