Volt AC Potential Transformer Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Select Measurement Range:150 Volts AC
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
Volt AC Potential Transformer Sensor
150 Volts AC
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

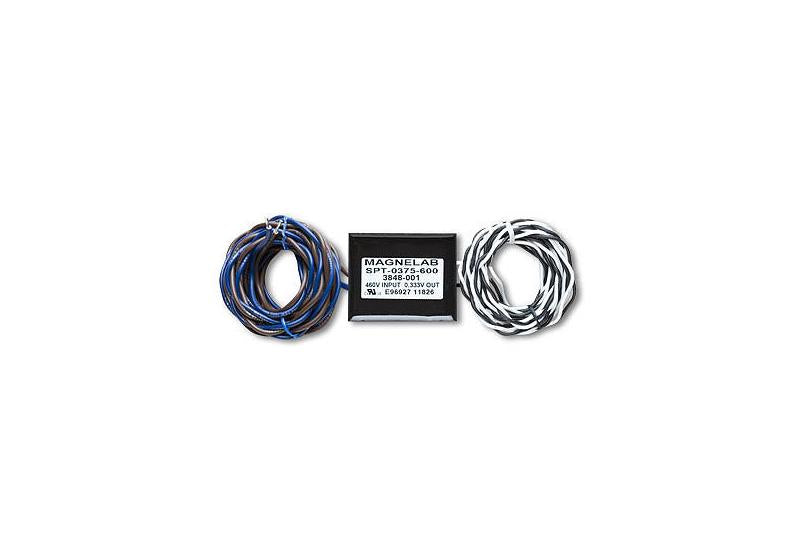

This AC Potential Transformer is used with the FlexSmart TRMS Module to provide accurate measurement of AC voltage.
One or two PTs can be used with each FlexSmart TRMS module. This sensor offers an accuracy of ±1% (from 10% to 130% of rated voltage). Because these transformers tie directly into the line, they should only be used by qualified personnel.
Documentation
Highlighted Features
- 2 input channels of AC Current and/or Voltage
- Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms
Specifications
| Specification | Value |
|---|---|
| Measurement Range (Volts AC) | 150, 300, 600 |
| Accuracy | ±1% (from 10% to 130% of rated voltage) |
| Phase Angle | <1 degree |
| Output to FlexSmart Module | 0.333 Volt at rated input voltage |
| Connections | 8-ft PVC insulated wire, UL1015 |
| High Voltage Input Wire | #14 AWG, blue/brown |
| Low Voltage Output Wire | #22 AWG twisted pair, black/white |
| Construction Material | Epoxy-filled ABS plastic |
| Dimensions (W x H x D) | 5.5 cm x 3.9 cm x 3.1 cm (2.2" x 1.6" x 1.2") |
| Weight | 491.2g (17.33oz) |
| Number of Data Channels | 1 |
Applications
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-MAG-SPT-600 sensor supports the following measurement: AC Voltage
