This meter has a large LCD display showing CO2 (carbon dioxide) and temperature simultaneously. This meter uses NDIR (Non-dispersive infrared) waveguide technology in its CO2 sensor. ABC (automatic background calibration) is also used for long-time drift compensation.
This meter has an alarm output that drives the built-in relay function to control the ventilation systems. The meter displays a TWA (time-weighted average) value of the past 8 hrs or a STEL (short-term exposure limit) value from the past 15 minutes. The meter is also easy to calibrate using CO2 in fresh air.
- The large LCD display shows CO2 (carbon dioxide) and temperature simultaneously.
- The meter uses Non-dispersive infrared (NDIR) waveguide technology in its CO2 sensor.
- Automatic background calibration (ABC) is used for long-time drift compensation.
- An alarm output drives the built-in relay function to control the ventilation systems.
- The meter displays a time-weighted average (TWA) value of the past 8 hrs or a short-term exposure limit (STEL) value from the past 15 minutes.
- The meter is easy to calibrate using CO2 in fresh air.

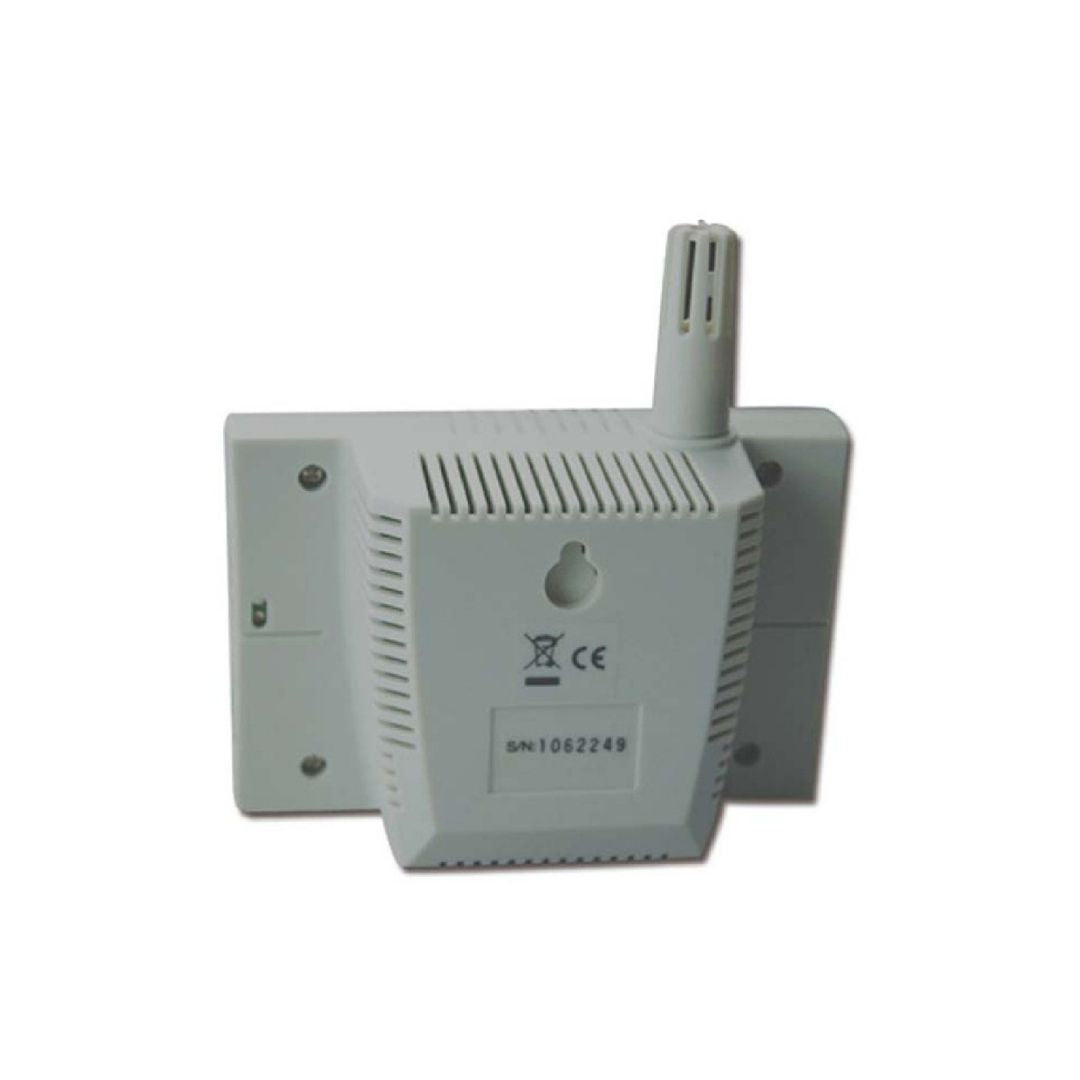

The 7722 AZ Wall Mount CO2 Humidity detector could measure the indoor air quality (IAQ) index, including the CO2 concentration, CO2 level, air temperature, dew point, wet bulb temperature and humidity. The Carbon Dioxide value can be output to PC for on-line analysis via USB interface. And it can be calibrated easily in the fresh air.
Poor indoor air quaintly is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex: sick building syndrome). IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as office, classroom, factory, hospital, work space, residential, commercial building and hotels. It is also suggested in regulations of industrial hygiene in some countries.
The 7722 AZ CO2 RH Thermometer device has the relay function, which could transfer the signal to control the other equipments. The 7722 AZ CO2 Temperature RH Meter has the stable NDIR CO2 sensor, and it is the ideal instrument for IAQ diagnosis. Its big LCD could be the best CO2 Monitor for long term monitoring. User could use the relay function to control or transfer the data to the following related instruments. And the built-in alarm output is especially helpful in ventilation control and HVAC system performance verification.
The 7722 AZ CO2 & Temperature Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
In what environment does this instrument operate?
The 7722 AZ Wall-mount CO2 Humidity Detector can be used in public areas such as offices, classrooms, factories, hospitals, workspaces, residential spaces, commercial buildings, and hotels. It is also suggested in regulations of industrial hygiene in some countries.
What measurements does this instrument support?
The 7722 AZ Wall-mount CO2 Humidity Detector supports the following measurements: indoor air quality (IAQ) index, including the CO2 concentration, CO2 level, air temperature, dew point as well as wet bulb temperature, and humidity. The carbon dioxide value can be output to the PC for online analysis via a USB interface.
|CO2 Range||0~9999 ppm (2001~9999 ppm out of scale range)|
|CO2 Resolution||1 ppm|
|CO2 Accuracy||±50 ppm ±5% of reading (0~2000 ppm), other range are not specified|
|CO2 Response Time||＜30 Seconds (90% step change)|
|CO2 Warm-up Time||30 Seconds|
|Air Temperature Range||-10~60℃, 14~140℉|
|Air Temperature Resolution||0.1℃, 0.1℉|
|Air Temperature Accuracy||±0.6℃, ±0.9℉|
|Air Temperature Response Time||＜2 mins (90% step change)|
|Humidity Range||0.1~99.9% RH|
|Humidity Resolution||0.1% RH|
|Humidity Accuracy||±3%RH (at 25℃, 10~90%RH); others ±5%RH|
|Humidity Response Time||＜10 mins (90% step change)|
|Dew Point Temperature||-20.0~59.9℃|
|Wet Bulb Temperature||-5.0~59.9℃|
|LCD Size||65(L) * 50(W) mm|
|Meter Size||130(L) * 85(W) * 60(H) mm|
|Operating RH%||0~95% RH (avoid condensation)|
|Storage RH%||0~90% RH (avoid condensation)|
|Power Supply||12V DC Adaptor|
|Battery life||＜50 mA (average), ＜310 mA (peak)|
|Standard Package||Meter, Manual, 12V USA Type Adaptor, Paper Box|
