The Wind Direction Smart Sensor is a research-grade plug-and-play sensor for measuring and logging wind data. It provides the average wind direction for the measurement interval. This highly-durable wind vane has a drip overhang for anti-icing. Its shielded stainless-steel ball bearings and static-dissipating housing provide a long sensor life. The sensor calculates a unit vector average of the wind direction, providing data directly in degrees.

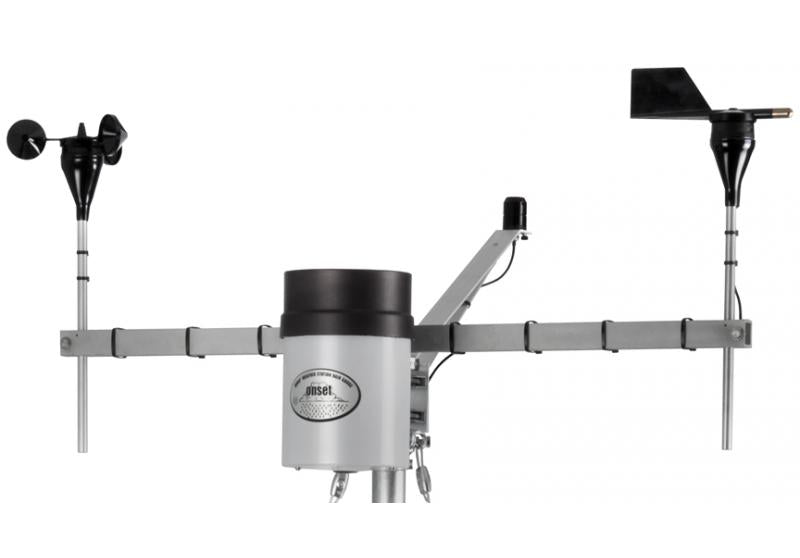

NOTE: an M-CAA Full Cross Arm or M-CAB Half Cross Arm is required for mounting.
Documentation
Quick Start GuideUser Manual
Highlighted Features
- Research-grade plug-and-play sensor for measuring and logging wind direction data
- Highly-durable wind vane has a drip overhang for anti-icing
- Shielded stainless-steel ball bearings
Applications
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-WDA-M003 sensor supports the following measurement: Wind
Specifications
| Specifications | Wind Direction |
|---|---|
| Measurement Range | 0 to 355 degrees, 5-degree dead band |
| Maximum Wind Speed Survival | 67 m/sec (150 mph) |
| Accuracy | ± 5 degrees |
| Resolution | 1.4 degrees |
| Starting Threshold | 1.0 m/s (2.2 mph) |
| Measurement Definition | Unit vector components of wind direction are accumulated every three seconds for the duration of the logging interval. The average direction is calculated from the average of these. |
| Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Environmental Rating | Weatherproof |
| Service Life | 4 to 6 years typical depending upon environmental conditions |
| Housing | Injection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod. |
| Bearing Type | Two shielded stainless steel ball bearings |
| Turning Radius | Approximately 13.5 cm (5.25 in.) |
| Dimensions | 46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang |
| Weight | Approximately 370 g (13 oz) |
| Number of Data Channels | 1 |
| Measurement Averaging Option | Automatic averaging (see Measurement Definition) |
| Cable Length Available | 3.5 m (11.5 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |
| Part Number | S-WDA-M003 |
A single HOBO Weather Station logger can accommodate 15 data channels and up to 100 m (325 ft) of smart sensor cable (the digital communications portion of the sensor cables).
