Onset
Wind Speed/Direction Smart Sensor Set
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Wind Speed/Direction Smart Sensor Set
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

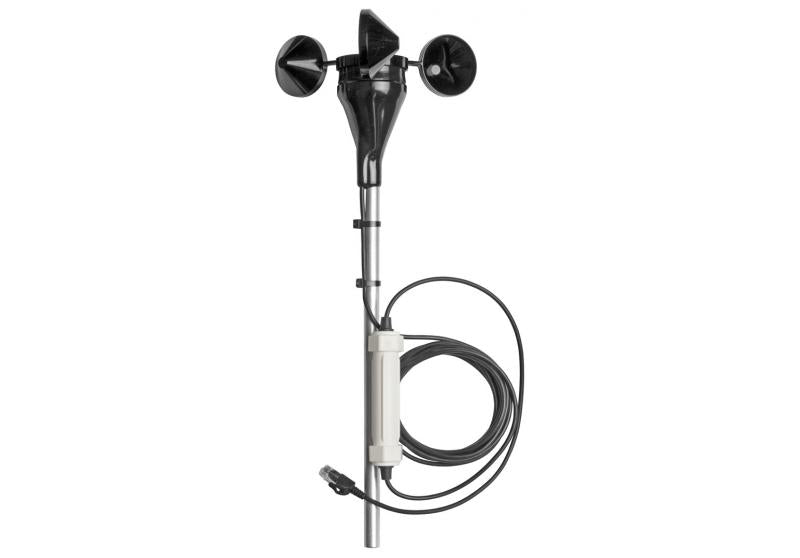

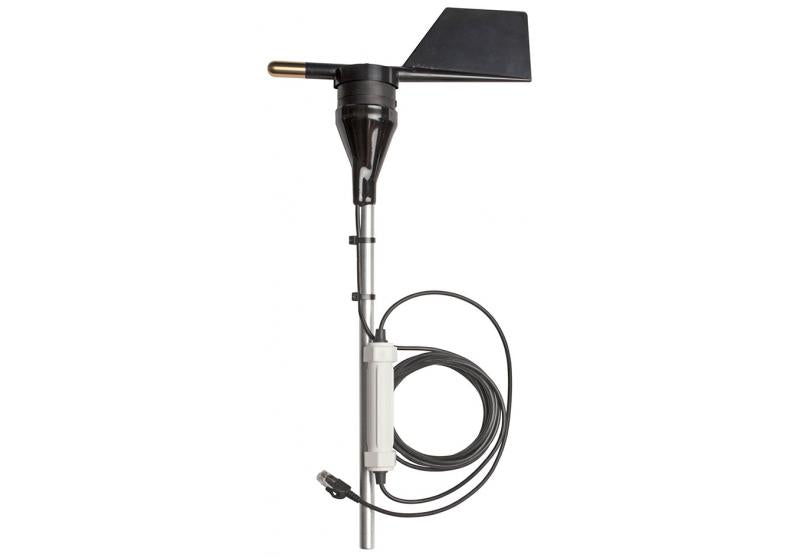

The Wind Sensor Set includes Onset's research-grade plug-and-play Wind Speed Smart Sensor and the Wind Direction Smart Sensor. This combination provides average wind speed, the highest 3-second wind gust, and average wind direction for the measurement interval. These durable sensors will provide many years of accurate and reliable performance.

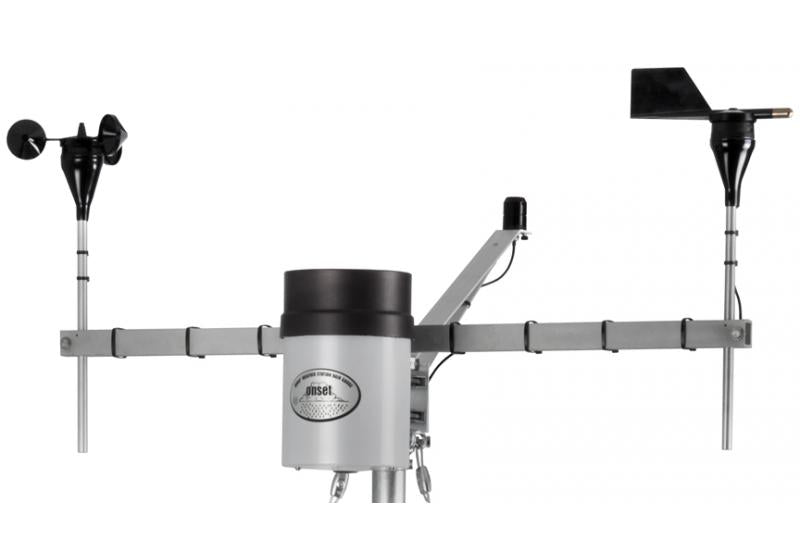

NOTE: Mount these on the M-CAA Full Cross Arm for proper sensor spacing for accurate wind measurement in all wind directions.

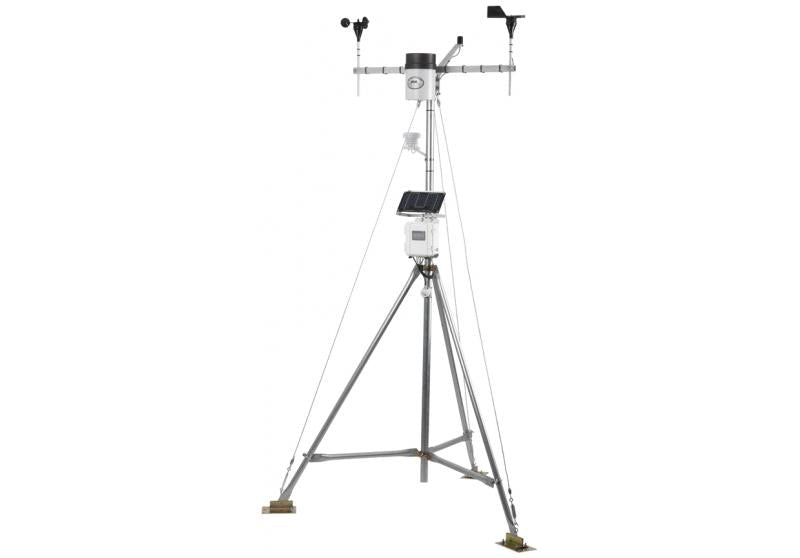

The cross arm must be mounted on a stable mast, using guy wires as needed to prevent the sensors from vibrating in high winds.
Documentation
S-WSB-M003 User ManualS-WDA-M003 User Manual
Highlighted Features
- Wind Sensor Set includes Onset's research-grade plug-and-play Wind Speed Smart Sensor and the Wind Direction Smart Sensor
- Provides average wind speed, highest 3-second wind gust, and average wind direction for the measurement interval
- Durable sensors
Applications
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-WSET-B sensor supports the following measurement: Wind
Specifications
| Specifications | Wind Speed/Gust (S-WSB-M003) | Wind Direction (S-WDA-M003) |
|---|---|---|
| Measurement Range | 0 to 76 m/s (0 to 170 mph) | 0 to 355 degrees, 5-degree dead band |
| Maximum Wind Speed Survival | 76 m/sec (170 mph) |
67 m/sec (150 mph) |
| Accuracy | ± 1.1 m/s (2.4 mph) or ± 4% of reading whichever is greater |
± 5 degrees |
| Resolution | 0.5 m/s (1.1 mph) | 1.4 degrees |
| Starting Threshold | 1.0 m/s (2.2 mph) | 1.0 m/s (2.2 mph) |
| Measurement Definition | Cup revolutions are accumulated every three seconds for the duration of the logging interval. Wind speed is the average speed for the entire logging interval. Gust speed is the highest three-second wind recorded during the logging interval. | Unit vector components of wind direction are accumulated every three seconds for the duration of the logging interval. The average direction is calculated from the average of these. |
| Operating Temperature Range | -40°C to +75°C (-40°F to +167°F) | -40°C to +70°C (-40°F to +158°F) |
| Environmental Rating | Weatherproof | Weatherproof |
| Service Life | Greater than 5 years typical | 4 to 6 years typically depending upon environmental conditions |
| Housing | Three-cup polycarbonate anemometer: Modified Teflon® bearings and hardened beryllium shaft with ice-shedding design | Injection-molded housing and vane, static dissipating base, lead-free silicon bronze nose, and aluminum mounting rod. |
| Bearing Type | Modified Teflon® bearings | two shielded stainless steel ball bearings |
| Turning Radius | 9.5 cm (3.75 in.) | Approximately 13.5 cm (5.25 in.) |
| Dimensions | 41 x 16 cm (16 x 6.5 in.) including 1.27 cm (0.5 in) diameter mounting rod; 5.5 cm (2.1 in.) drip overhang | 46 x 20 cm (18 x 8.5 in) including a 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang |
| Weight | Approximately 700 g (1.5 lbs) | Approximately 370 g (13 oz) |
| Number of Data Channels | 2 | 1 |
| Measurement Averaging Option | No | Automatic averaging (see Measurement Definition) |
| Cable Length Available | 3.5 m (11.5 ft) | 3.5 m (11.5 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) | 0.5 m (1.6 ft) |
| CE | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) |
| Part Number | S-WSB-M003 | S-WDA-M003 |
