Onset
Wind Speed Smart Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
Wind Speed Smart Sensor
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
Measure wind speed from 0 to 76 m/s (0 to 170 mph). This smart sensor provides data reporting average wind speed and the highest 3-second gust for each logging interval. The starting threshold is 1 m/s (2.2 mph); the sensor survives through 170 mph. This model comes with a 3m cable.

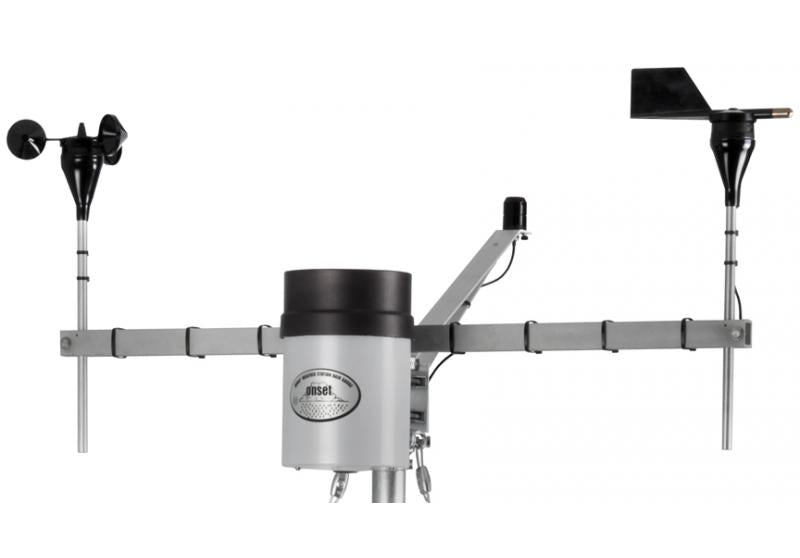

NOTE: an M-CAA Full Cross Arm or a M-CAB Half Cross Arm is required for mounting.
Documentation
User ManualQuick Start
Highlighted Features
- 3-cup anemometer with TEFLON® bearings and hardened beryllium shaft
- Measure wind speed from 0 to 76 m/s (0 to 170 mph)
- 170 mph survivability
Applications
In what environment does this sensor operate?
This sensor operates in indoor and outdoor environments.
What measurements does this sensor support?
The S-WSB-M003 sensor supports the following measurement: Wind
Specifications
| Specifications | Details |
|---|---|
| Measurement Parameters | Average wind speed and highest 3-second gust in logging interval |
| Measurement Range | 0 to 76 m/s (0 to 170 mph) |
| Operating Temperature Range | -40° to 75°C (-40° to 167°F) |
| Accuracy | ±1.1m/s (2.4 mph) or ±4% of reading whichever is greater |
| Resolution | 0.5 m/s (1.1 mph) |
| Starting Threshold | 1 m/s (2.2 mph) |
| Maximum Wind Speed Survival | 76 m/s (170 mph) |
| Distance Constant | 3 meters |
| Housing | 3-cup anemometer with TEFLON® bearings and hardened beryllium shaft |
| Dimensions | 190 cm x 51 cm (7.5" x 3.2") |
| Approximate Weight | 300 g (10 oz) |
| Cable Length | 3 meters (10') |
| Length of Smart Sensor Network Cable | 0.5m |
| Service Life | Greater than 5 years life typical |
