Wireless 0-10V ADC Sampling Interface

Sale priceR 0.00
SKU: R718IB

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless 0-10V ADC Sampling Interface

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

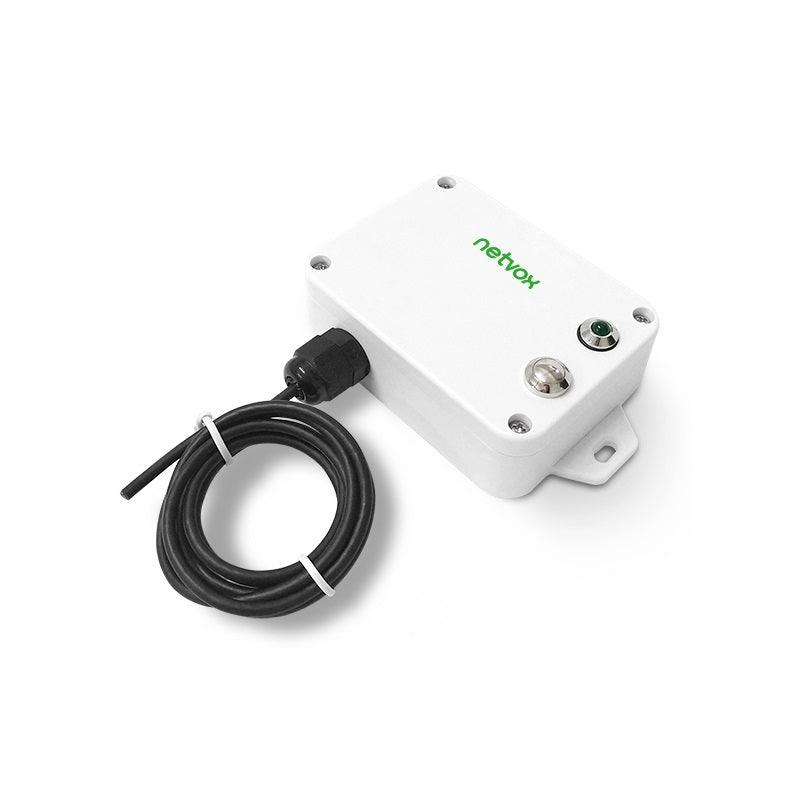

This device can be connected to an ADC sampling interface device. As shown in the figure, black is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-10V. It uses the SX1276 wireless communication module. The wireless communication is compatible with the LoRaWAN™ protocol (ClassA)

Documentation

Data Sheet User Manual

Highlighted Features

  •  Wireless range of 10km *1
  • LoRaWAN™ Class A compatible
  • *Frequency Hopping Spread Spectrum (FHSS)
  • Improved interference immunity
  • Improved power management for longer battery life
  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  • *Battery Life: Please refer to this link: Battery Life Indication Sheet
  • On this website, users can find battery lifetime for a variety of models at different configurations.
  • Over-the-air updates (future)
  • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
  • Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  • R718X  series carry magnets that can be attached to ferromagnetic materials and objects

*TAKE NOTE

1. The actual range may vary depending on the environment.
2. Battery life is determined by sensor reporting frequency and other variables

Specifications

Input Power

2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section)

Sleeping Mode

22uA

Wake up Mode

6.3mA@3.3V

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Measurement
Accuracy

±0.1V

Low Voltage Threshold

3.2V


Frequency:

TX Power

19dBm±1dBm

Rx Sensitivity

-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps~50kbps

Spread Technique

LoRa/FSK

Available Frequency

US915       AU915       AS923 EU868       KR920       CN470
Configured before shipment


Physical:

Dimension

Main Part: L: 112mm*W: 65mm*H: 32mm

Weight

141g

Environment Temperature Range

-20℃ ~ 55℃

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40℃ ~ 85℃

IP Rating (Main Part)

IP67

IP Rating (External Sensor)

IP65
