Wireless 0-5V ADC Sampling Interface

Sale priceR 0.00
SKU: R718IA

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless 0-5V ADC Sampling Interface

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

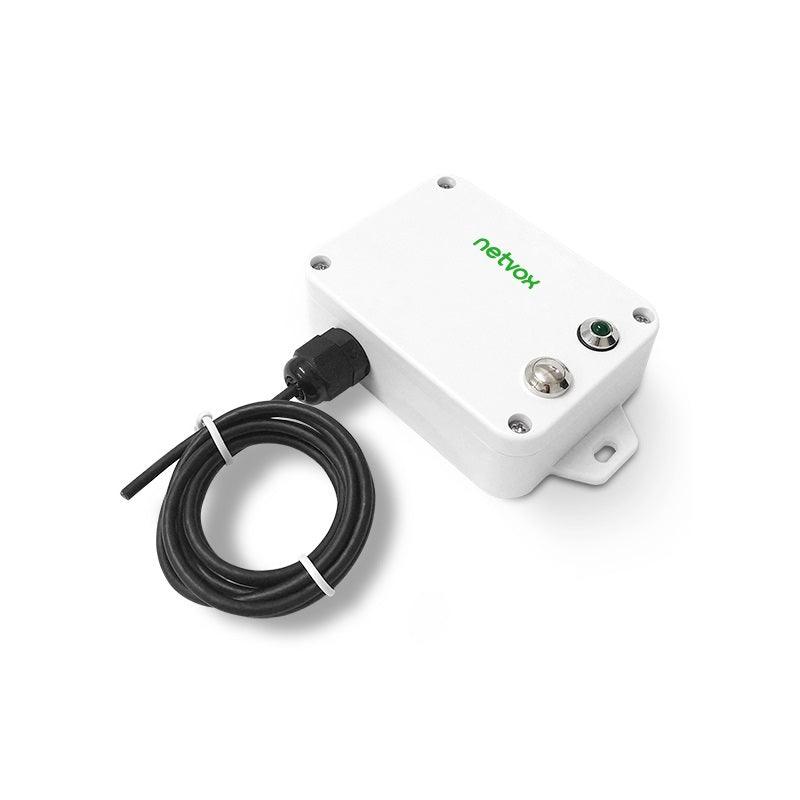

This device can be connected to an ADC sampling interface device. As shown in the figure, black is the ground line, red is the ADC sampling interface line, and the ADC sampling voltage range is 0-5V. It uses the SX1276 wireless communication module. The wireless communication is compatible with the LoRaWAN™  protocol

Documentation

Data Sheet User Manual

Highlighted Features

  •  Apply SX1276 wireless communication module
  •  2 ER14505 batteries AA size in parallel (3.6V / section)
  •  LoRaWAN™ Class A compatible
  •  0-5V ADC sampling interface
  •  IP rating IP65
  •  The base is attached with a magnet that can be attached to a ferromagnetic   material object
  •  Frequency Hopping Spread Spectrum (FHSS)
  •  Third-Party online wireless sensor monitoring and notification system to   configure sensors, view data, and set alerts via SMS text and email (optional)
  •  Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  •  Improved power management for longer battery life

Specifications

Electric:

Power Supply

2x3.6V ER14505 lithium batteries

Operating Voltage

3.1v to 3.65

Standby Current

<22uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V

ADC Sampling Range

0-5V

ADC Resolution

12 bits

ADC Conversion Rate

1.14Msps

External Cable Length

1m


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Dimension

Host body:112mm*65mm*32mm

Operating Temperature Range

-20°C ~ 55°C

Storage Temperature Range

-40°C ~ 85°C

Operating Humidity Range

<90%RH (No condensation)
