Wireless Air Pressure and Temperature Sensor

R 0.00
SKU: R720C

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Air Pressure and Temperature Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

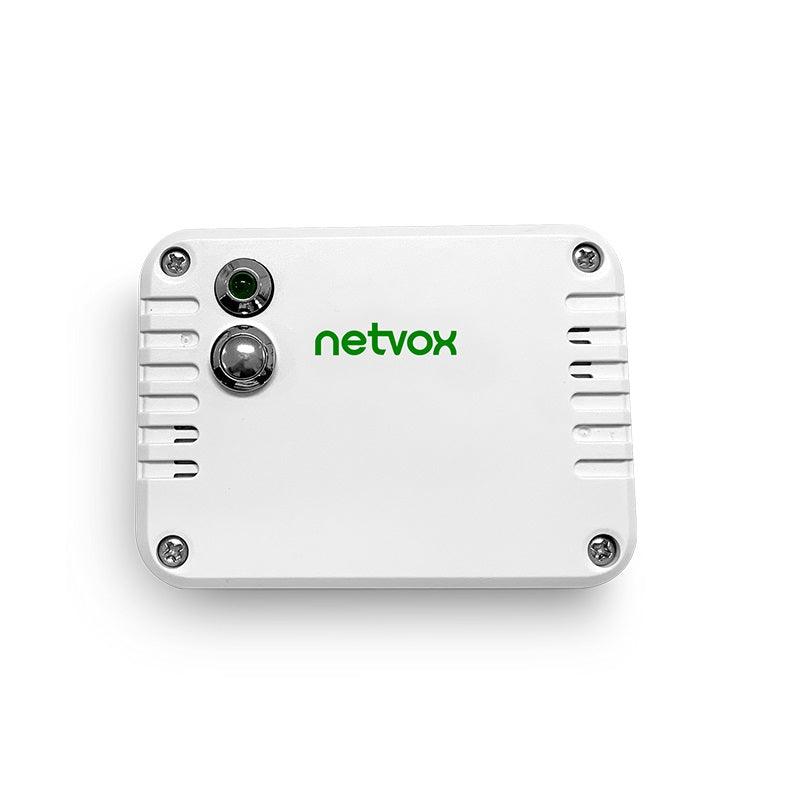

The R720C is a wireless communication device that detects ambient air pressure and temperature. The R720C detects ambient air pressure and temperature and transmits the detected data to other devices via a wireless network using the SX1276 wireless communication module.

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  • 2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
  • Air temperature and humidity detection
  • Motion detection alarm
  • The base is attached with a magnet that can be attached to a ferrous object
  • Protection class IP65
  • Compatible with LoRaWANTM Class A
  • Frequency hopping spread spectrum
  • Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text and email (optional)
  • Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  • Low power consumption and long battery life
  • Note*: Battery life is determined by the sensor reporting frequency and other variables.
  • Please refer to http://www.netvox.com.tw/electric/electric_calc.html.On this website, users can find various types of batteries in different configurations.

Specifications

Electric:

Input Power

2 x 3.6V ER14505 AA lithium batteries
(3.6V 2400mah/section）

Battery Life

5 years
(Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)

Sleeping Mode

24uA

Wake up Mode

6.3mA@3.3V

Low Voltage Threshold

3.2V

Transmitting current (max)

120mA@3.3V

Receiving current (max)

11mA @3.3V


Frequency:

Frequency Range

  863MHz-928MHz, 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Rx Sensitivity

-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

Up to 10km, the actual transmission distance depends on the environment.

Data Transfer Rate

0.3kbps～50kbps

Spread Technique

LoRa/FSK

Available Frequency

EU863-870, US902-928, AU915-928,
KR920-923, AS923, CN470-510
Configured before shipment


Physical:

Dimension

Main Body: L:88mm*W:65mm*H:19mm

Weight

113g

Environment Temperature Range

-40℃ ～ 55℃

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40℃ ～ 85℃
