Wireless Bottom-installed Ultrasonic Liquid Level Sensor

Sale priceR 0.00
SKU: R718PA22

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Bottom-installed Ultrasonic Liquid Level Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

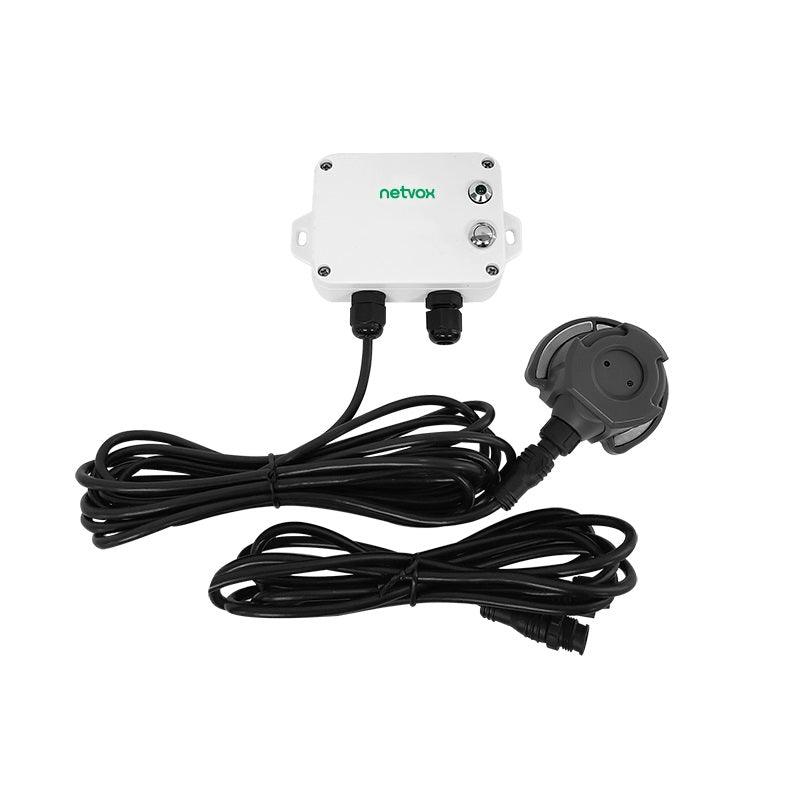

The R718PA22 is a wireless communication device that measures the liquid level with an ultrasonic liquid level sensor. Ultrasonic liquid level sensor installed at the bottom of the container may measure water, gasoline, diesel, and small, medium, and large capacity storage tanks (metal, plastic, glass material). R718PA22 main unit and the ultrasonic liquid level sensor communicate via the RS485 interface, and the detected data is sent to the other equipment shown which employs compliance with LoraWANTM wireless communication protocol standards.

Documentation

Data Sheet User Manual

Highlighted Features

  • Adopt SX1276 wireless communication module
  • DC12 adapter power supply
  • Equipment body protection grade IP65/IP67 (optional), ultrasonic probe part protection grade IP67
  • RS485 communication
  • The base is equipped with a magnet that can be attached to the iron object
  • Compatible with LoRaWANTM  Class A
  • Frequency hopping spread spectrum technology
  • Configuration parameters can be configured through third-party software platforms
  • Data can be read and alerts can be set via SMS text and email (optional)
  • Applicable to third-party platforms: Actility / ThingPark / TTN / MyDevices /Cayenne

Specifications

Electric:

Power supply

DC 12V

Working current

<50mA (external sensor)

* Specific electrical characteristics will vary depending on the power supply voltage


Frequency:

Frequency range

863MHz-928MHz 470MHz-510MHz

Power output

19 dBm ±1dBm

Receiving sensitivity

-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps

Antenna type

Built-in antenna

Communication distance

Up to10 km, the actual transmission distance depends on the environment.

Data transfer rate

0.3kbps to 50kbps

Modulation system mode

LoRa/FSK (Note: choose one of them)

Supportable LoRaWAN band

EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
Configured before shipment


Physical:

Size

L: 112 mm*W: 88.19 mm*H: 32 mm

Ambient temperature range

-20°C to 55°C

Body weight

About 200g

Ambient humidity range

<90% RH (no condense)

Storage temperature range

-40°C ~ 80°C
