Wireless LoRa Valve Keeper - eucatech Store

Netvox

Wireless LoRa Valve Keeper

Sale priceR 0.00
SKU: RA10

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless LoRa Valve Keeper

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

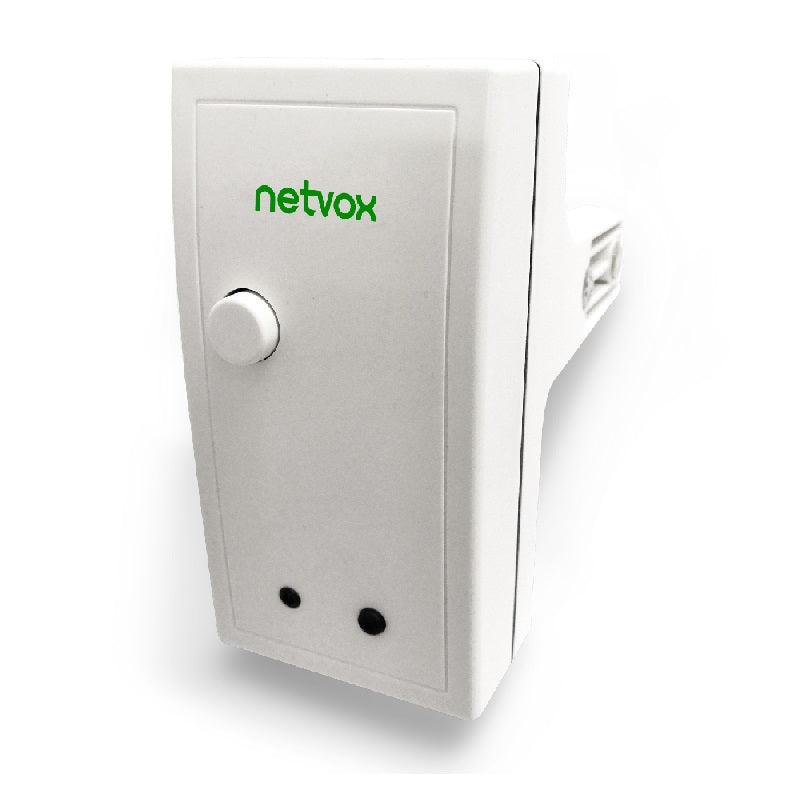

The valve disconnector RA10 is a wireless smart device for home security and automatic irrigation. It uses SX1276 wireless communication. Join RA10 to the gateway and realizes the operation of automatically opening and closing the valve through the instructions of other devices in the network. It can also use the manual switch function.

Documentation

Data Sheet User Manual

Highlighted Features

  • LoRaWANTM  compatible
  •  Frequency Hopping Spread Spectrum (FHSS)
  •  Improved interference immunity
  •  Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  •  Over-the-air updates (future)
  •  Third-party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
  •  Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  •  Uses SX1276 wireless communication module

Specifications

Electric:

Power Supply

DC12V

Working Voltage

12 VDC

Standby Current

25 mA

Maximum Load Current Consumption

550 mA


Frequency:

Frequency Range

863MHz-928MHz   470MHz-510MHz

TX Power

19dBm±1dBm

Rx Sensitivity

-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

Up to 10 km, the actual transmission distance depends on the environment.

Data Transfer Rate

0.3kbps~50kbps

Spread Technique

LoRa/FSK

Available Frequency

EU863-870,US902-928,AU915-928,KR920-923,AS923,CN470-510    Configured before shipment


Physical:

Physical Size

152.99mm x 70.99mm x128.3mm

Operating Temperature

-20 ° C ~ 55 ° C

Storage Temperature

-40 ° C ~ 85 ° C

Ambient Humidity

 <90% RH (non-condensing)

Applicable Pipe Diameter

 6 points (3/4 inch)

Drive Arm End Maximum Output Force

7.5 kgf

Switching Angle

90 degrees
