Wireless O3 Sensor - eucatech Store

Netvox

Wireless O3 Sensor

Sale priceR 0.00
SKU: R718PA3

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless O3 Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

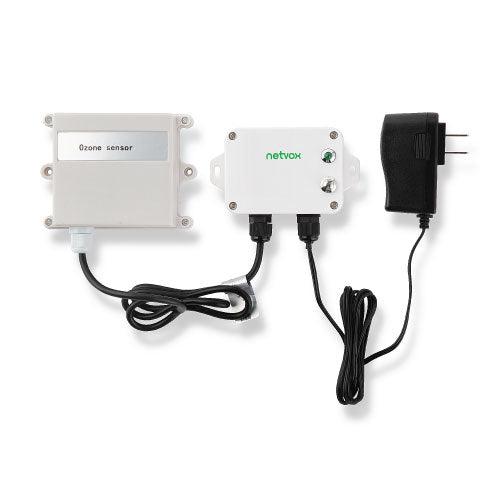

The R718PA3 is a wireless communication device that detects O3 concentration in ambient air. The body and the O3 sensor are connected through the RS485 interface, and the detected data is transmitted to other devices through the wireless network.

Documentation

Data Sheet User Manual

Highlighted Features

  • Adopt SX1276 wireless communication module
  • DC 12V adapter power supply
  • Main unit protection class IP65
  • The base is equipped with a magnet that can be attached to the iron object
  • RS485 communication
  • Compatible with LoRaWANTM Class A
  • Frequency hopping spread spectrum technology
  • Configuration parameters can be configured through a third-party software
  • Platforms, data can be read and alerts can be set via SMS text and email (optional)
  • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

Specifications

Electric:

Power supply

DC 12V adapter power supply

Working current

55mA (external sensor)

O3 measurement range

0- 20ppm

O3 measurement method

Electrochemical sensors

O3 repeatability

≦ ± 3 % of reading (@25°C)

Detectable lower limit

<20ppb


Frequency:

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Rx Sensitivity

-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps~50kbps

Modulation Method

LoRa/FSK

Available Frequency

EU863-870, US902-928, AU915-928, KR920-923, AS923,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Main unit size

Main part - L: 112 mm*W: 88.19 mm*H: 32 mm
O3 Sensor - L: 110 mm*W: 85 mm*H: 44mm
O3 Sensor Waterproof (white) - D: 19.5mm*L: 30.3mm
- M12*1.5 (Screw Thread)

Ambient temperature range

-20 °C to 55°C

Main unit weight

About 160g

Ambient humidity range

<90% RH (no condense)

Storage temperature range

-40 °C ~ 85 °C
