Netvox

Wireless ORP Sensor

R 0.00
SKU: R718PA9

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless ORP Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

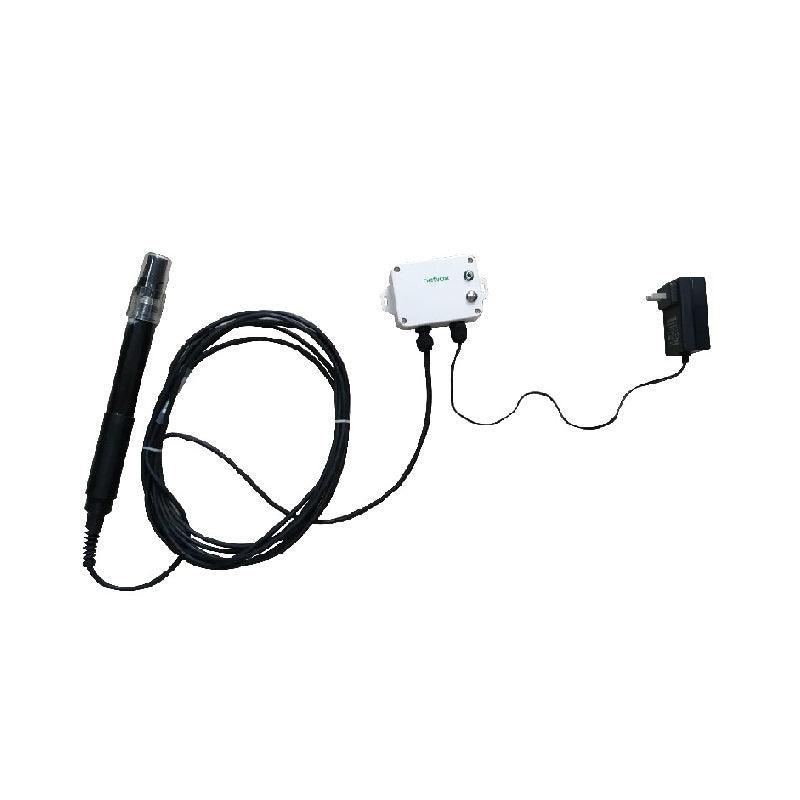

R718PA9 is a wireless communication device for detecting the ORP value of acid/ alkali/ salt solution.
ORP (oxidation-reduction potential) is an important indicator of water quality. Although it cannot independently reflect the quality of water, it can integrate other water quality indicators to reflect the ecological environment in the aquarium system.

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  • DC 12V adapter power supply
  • Protection level IP65
  • ORP value detection
  • The base is attached with a magnet that can be attached to a ferromagnetic material object
  • LoRaWAN™ Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Configuration parameters can be configured through a third-party software platform
  • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

Specifications

Electric:

Power Supply

DC 12V adapter power supply

Operating Current

<70mA (external sensor)

ORP Sensor Measurement Range

-1500 ～ +1500mV

ORP Sensor Resolution

1mv

ORP Sensor Accuracy

±6mv

Cable Length

5m (Other lengths can be customized)

ORP Sensor Operating Pressure

＜0.1MPa

Installation Method

3/4" NPT thread, immersion installation


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance, actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Dimension

L 112mm* W 88.19mm* H 32mm

Host Body Weight

about 160g

Working Temperature

-20°C ～ 55°C

Ambient Humidity Range

＜90% RH（no condense）

Storage Temperature Range

-40°C ～ 85°C
