Netvox

Wireless PH Sensor

Sale priceR 0.00
SKU: R718PA8

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless PH Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

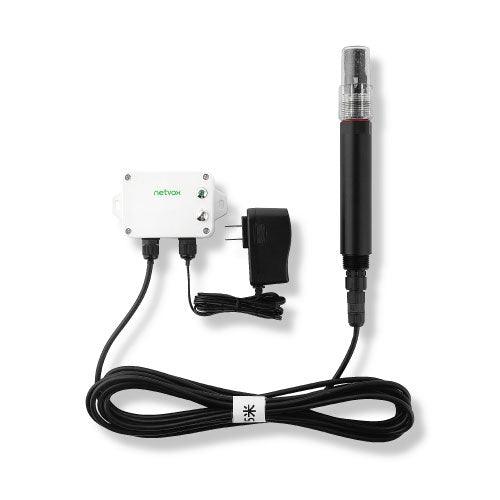

R718PA8 is a wireless communication device for the pH values of acid, alkali, and salt solutions. R718PA8 can detect the pH value and temperature of the solution. The body and the pH sensor are connected through the RS485 interface, and the detected data is transmitted to other devices through the wireless network for display

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  • DC 12V adapter power supply
  • Protection level IP65/IP67 (optional)
  • PH value and temperature detection
  • The base is attached with a magnet that can be attached to a ferromagnetic material object
  • LoRaWAN™ Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Configuration parameters can be configured through a third-party software platform
  • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

Specifications

Electric:

Power Supply

DC 12V adapter power supply

Operating Current

<70mA (external sensor)

PH Sensor Measurement Range

0-14PH

PH Sensor Resolution

0.01PH

PH Sensor Accuracy

±0.01PH

Cable Length

5m


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps~50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Dimension

L 112mm* W 88.19mm* H 32mm

Host Body Weight

about 160g

Working Temperature

-20°C ~ 55°C

Ambient Humidity Range

<90% RH(no condense)

Storage Temperature Range

-40°C ~ 85°C
