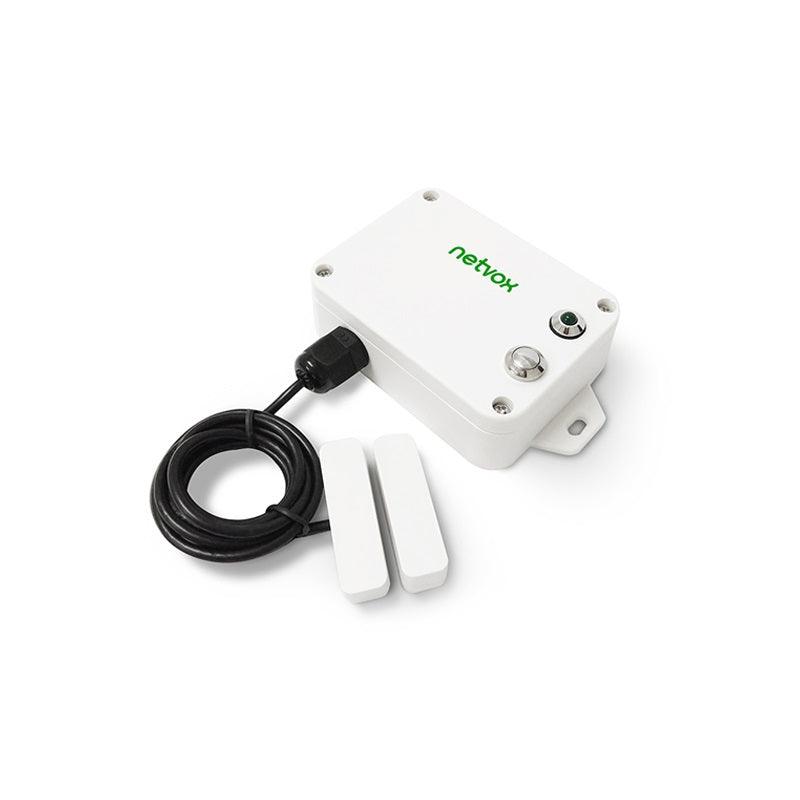

Wireless Reed Switch Open/Close Detection Sensor

R 0.00
SKU: R718F

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Reed Switch Open/Close Detection Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

The device is equipped with a reed sensor, which can be used to detect the status of the door and window. Through the built-in wireless module, it can achieve wireless alarms and other functions. It uses the SX1276 wireless communication module

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  • 2 ER14505 battery (3.6V/section) in parallel power supply
  • LoRaWAN™ Class A compatible
  • The base is attached with a magnet that can be attached to a ferromagnetic material object
  • Frequency Hopping Spread Spectrum (FHSS)
  • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
  • Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne• Improved power management for longer battery life

Specifications

Electric:

Power Supply

2x3.6V ER14505 lithium batteries(3.6V2400mah/section)

Operating Voltage

3.1v to 3.65

Standby Current

20uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance, actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Dimension

Main Body:L: 112mm*W: 65mm*H: 28mm
Sensor case:L: 43mm*W: 13mm*H: 12mm
Environment Temperature Range

-20℃ to 55℃
Storage Temperature Range

-40℃ to 85℃

Environment Humidity Range

<90%RH (No condensation)

Weight

141g
