Netvox

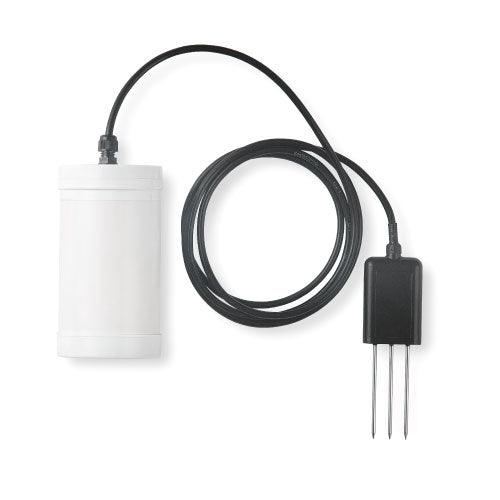

Wireless Soil Moisture\Temp & EC Sensor

Name: Wireless Soil Moisture\Temp & EC Sensor
Brand: Netvox
SKU: R718PB15A
Availability: InStock

R 0.00

SKU: R718PB15A

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:

Pickup available at EUCA Head Office Usually ready in 24 hours

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

The device is a wireless communication device that detects soil temperature and soil moisture and soil electrical conductivity and transmits the detected data to other devices through a wireless network. The SX1276 wireless communication method is adopted.

Documentation

Data Sheet User Manual

Highlighted Features

Adopt SX1276 wireless communication module
2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
Main unit protection level IP67
Soil moisture detection
Soil temperature detection
Soil electrical conductivity
Compatible with LoRaWANTM Class A
Frequency hopping spread spectrum
Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text and email (optional)
Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenn
Low power consumption, longer battery life support*:
Battery life is determined by sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html
On the website, users can find the battery life of various models in different configurations.

Specifications

Electric:

Input Power	2 ER14505 lithium batteries (3.6V, 2400mAh / section) in parallel
Battery Life	2.7 years (Conditions: ambient temperature 25 °C, 60 min heartbeat, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleeping Mode	20 uA
Wake up Mode	6.3mA@3.3V
Receiving Current (max)	11mA @3.3V
Transmitting Current (max)	120mA/3.3V
Battery Voltage Measurement Accuracy	±0.1V

Frequency:

Frequency Range	863MHz-928MHz 470MHz-510MHz
TX Power	US915 20dbm； AS923 16dbm； AU915 20dbm； CN470 19.15dbm； EU868 16dbm； KR920 14dbm； IN865 20dbm；
Rx Sensitivity	-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Build-in antenna
Communication Range	Up to10 km, the actual transmission distance depends on the environment.
Data Transfer Rate	0.3kbps～50kbps
Spread Technique	LoRa/FSK
Available Frequency	EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510 Configured before shipment

Physical:

Main Body Size	L: 112mmW: 65mmH: 32mm
Cylinder Size	⌀80mm, length 134mm
Ambient Temperature Range	-20°C to 55°C
Body Weight	Approx. 160g
Ambient Humidity Range	<90% RH (no condense)
Storage Temperature Range	-40°C to 85°C
