Wireless Temperature Sensor

Sale priceR 0.00
SKU: R718AD

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Temperature Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

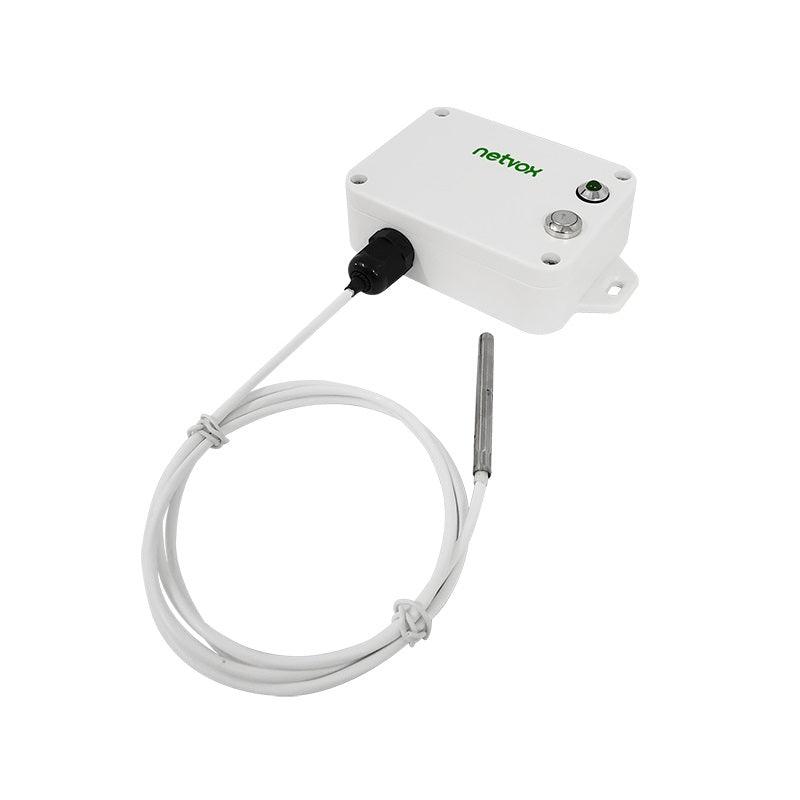

The R718AD is a wireless communication device for detecting temperature. The temperature sensor probe contacts an object to detect the temperature, and the detected data is transmitted to other devices through a wireless network. The SX1276 wireless communication module is used.

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  •  2 ER14505 battery (3.6V/section) in parallel power supply
  •  Temperature detection
  •  LoRaWAN™ Class A compatible
  •  The base is attached with a magnet that can be attached to a ferromagnetic material object
  •  Frequency Hopping Spread Spectrum (FHSS)
  •  Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
  •  Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  •  Improved power management for longer battery life

Specifications

Electric:

Power Supply

2x3.6V ER14505 lithium batteries(3.6V2400mah/section)

Operating Voltage

3.1v to 3.65v

Standby Current

24uA

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Accuracy

±0.1V

Low Voltage Threshold

3.2V

Measurement Range

-40°C to 125℃

Wire Length

1m


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;

Receiving Sensitivity

-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance, actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Main Body Dimension

L:112mm*W:88.19mm*H:32mm

Environment Temperature Range

-20℃ to 55℃

Storage Temperature Range

-40℃ to 85℃

Environment Humidity Range

<90%RH (No condensation)
