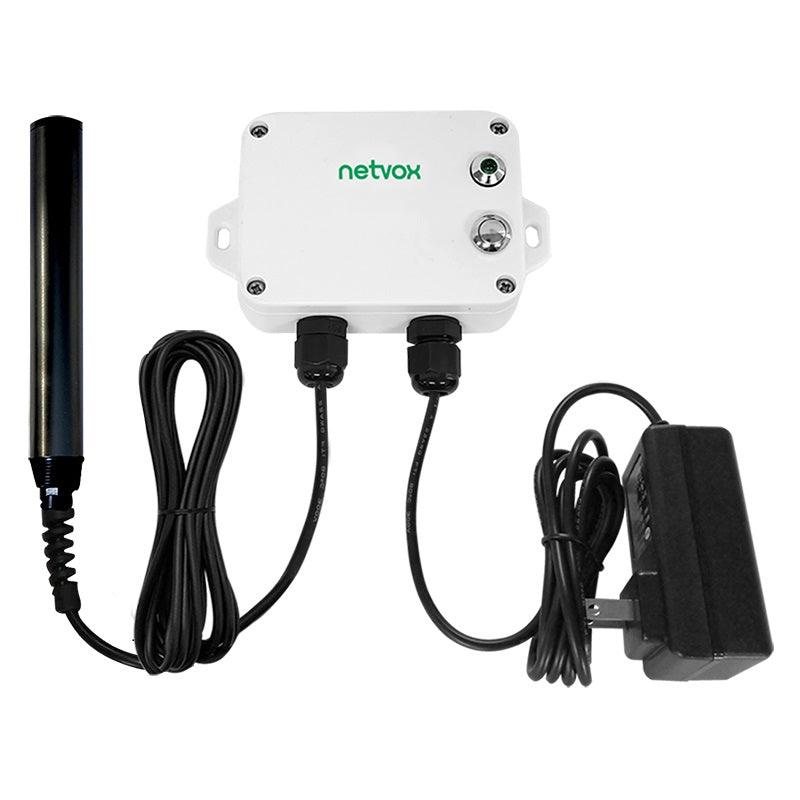

R718PA10 can detect the turbidity value and temperature of the solution. The body and the turbidity sensor are connected through the RS485 interface, and the detected data is transmitted to other devices through the wireless network for display.

Documentation

Data Sheet User Manual

Highlighted Features

  •  Adopt SX1276 wireless communication module
  • DC 12V adapter power supply
  •  Main body protection level IP65/IP67 (Optional)
  •  The base is equipped with a magnet that can be attached to the iron object
  •  Detecting the turbidity value and the temperature of the solution
  •  Compatible with LoRaWANTM Class A
  •  Frequency hopping spread spectrum technology
  •  Configuring parameters and reading data via third-party software platforms, and setting alarms via SMS text and email (optional)
  •  Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:

Power Supply

DC12V

Operating Current

<70mA (external sensor)

Turbidity Measurement Range

0 to 1000 ntu

Turbidity Resolution

0.1 ntu

Turbidity Accuracy

＜5% or 0.3 ntu

Operation Condition

0 to 50°C, <0.2MPa

Installation Method

Immersive installation, 3/4 NPT pipe thread

Cable Length

5 meters, other lengths can be customized

Protection Class

IP68


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

Data Transfer Rate

LoRa: 0.3kbps～50kbps
FSK: 1.2kbps～300kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Main Body Dimension

L 112mm* W 88.19mm* H 32mm
Main Body Weight

160 g
Environment Temperature Range

-20℃ to 55℃
Storage Temperature Range

-40℃ to 85℃

Environment Humidity Range

<90%RH (No condensation)
