Netvox

Wireless Water Leak Detection and Location Sensor

R 0.00
SKU: RA07W

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Water Leak Detection and Location Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

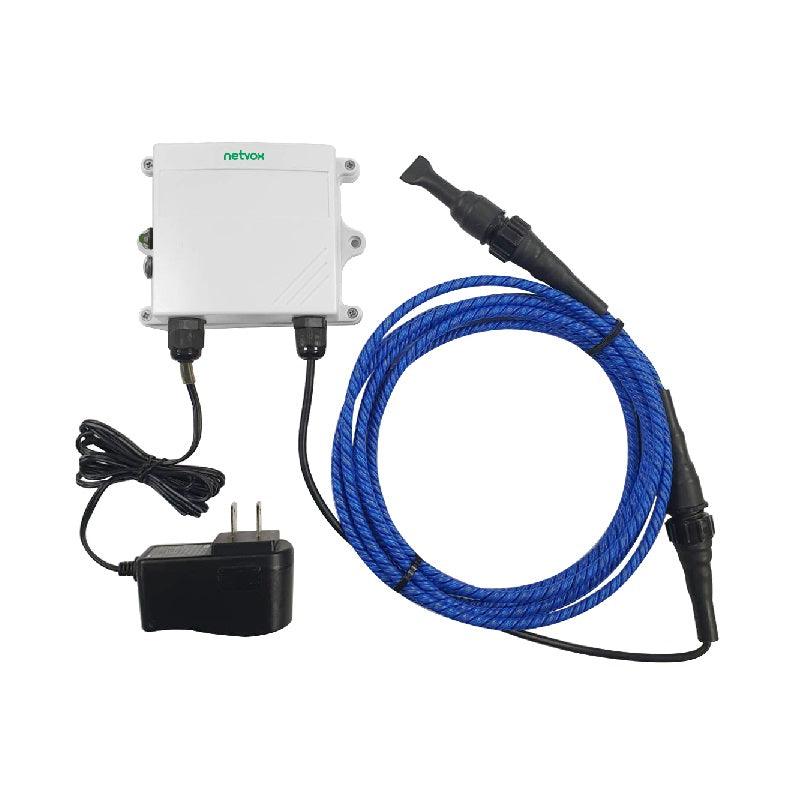

RA07W is a water leak detector leak locating equipment, which can be connected to a water leak sensor through the external four-core positioning leak detection sensor line to detect the water leak location and transmit the detected data to other devices through the wireless network.

Documentation

Data Sheet User Manual

Highlighted Features

  • Compatible with LoRaWAN™ protocol
  • Detection of water leak detection line contact with the water location
  • Power supply: DC 12V
  • Adopt SX1276 wireless communication module
  • Compatible with LoRaWANTM Class A
  • Frequency hopping spread spectrum technology
  • Configuring parameters and reading data via third-party software platforms, and setting alarms via SMS text and email (optional)
  • Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn

Specifications

Electric:

Power Supply

DC12V/1A

Operating Current 1

40mA (no radio frequency signal transmission)

Operating Current 2

80mA (a radio frequency signal emission)

Position Water Leak Detector

100m (max);

Leak Detection Error Range

1% ± 0.5 meters of sensor cable length


Frequency:

Frequency Range

863MHz-928MHz 470MHz-510MHz

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Receiving Sensitivity

-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Built-in antenna

Communication Distance

Up to 10 km
(visible linear obstacle-free transmission distance, actual transmission distance depends on the environment )

Data Transfer Rate

0.3kbps～50kbps

Modulation

LoRa/FSK (Note: You can choose one of them)

Supportable LoRaWAN Band

EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510

(Note: The frequency band is optional and needs to be configured before shipment)


Physical:

Main Body Dimension

111mm*86mm*41mm
Operating Temperature

-20℃ ~ 55℃

Storage Temperature Range

-40°C ~ 85°C

Environment Humidity Range

5%RH～95%RH
