Wireless Water Leak Detector with Rope Sensor

R 0.00
SKU: R718WB

ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.

ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

Quantity:
Pickup available at EUCA Head Office Usually ready in 24 hours

Wireless Water Leak Detector with Rope Sensor

EUCA Head Office

Pickup available, usually ready in 24 hours

Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

+27123623271

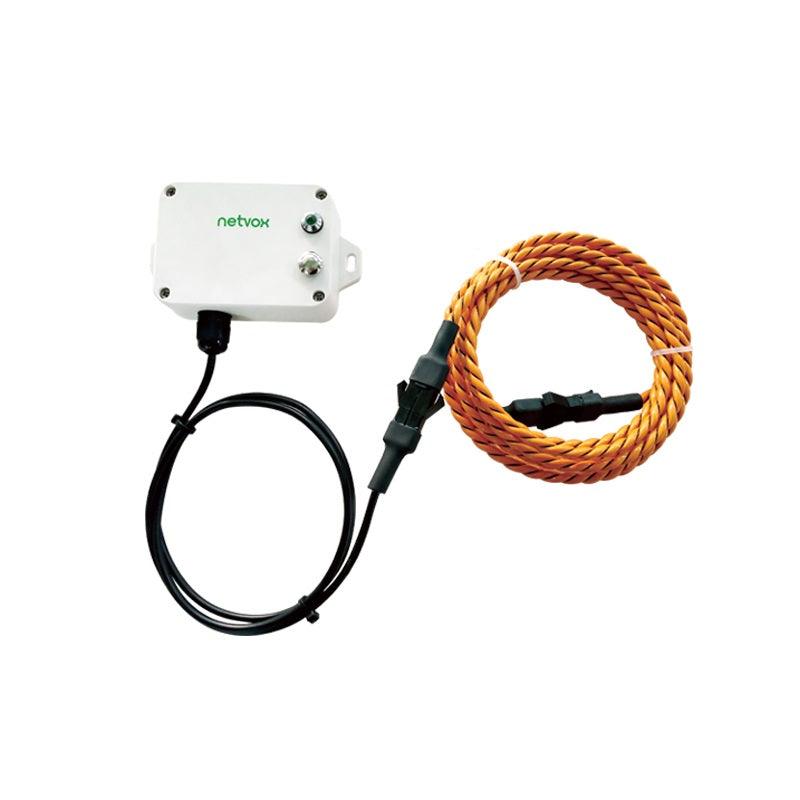

R718WB is a non-locating leak-detection wireless communication device. R718WB can detect the leak status through an external dual-core non-positioning water rope sensor, and send the detected data to the data center through the wireless network.

Documentation

Data Sheet User Manual

Highlighted Features

  • Apply SX1276 wireless communication module
  • 2 section of ER14505 battery in parallel (AA SIZE 3.6V / section)
  • Non-locating leak detection
  • The base is attached with a magnet that can be attached to a ferromagnetic material object
  • IP Ratings: Main part – IP65/IP67 (Optional), Sensor-IP67
  • LoRaWAN™ Class A compatible
  • Frequency Hopping Spread Spectrum (FHSS)
  • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
  • Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
  • Improved power management for longer battery life

Specifications

Electric:

Input Power

2 x 3.6V ER14505 AA lithium batteries
(3.6V2400mah/section）

Battery Life

5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)

Sleeping Mode

20uA

Wake up Mode

6.3mA@3.3V

Low Voltage Threshold

3.2V

Receiving Current (max)

11mA @3.3V

Transmitting Current (max)

120mA/3.3V

Battery Voltage Measurement
Accuracy

±0.1V


Frequency:

TX Power

US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；

Rx Sensitivity

-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

Antenna Type

Build-in antenna

Communication Range

10 km (line-of-sight, the actual transmission distance depends on the environment)

Data Transfer Rate

0.3kbps～50kbps

Spread Technique

LoRa/FSK

Available Frequency

US915       AU915       AS923 EU868       KR920       CN470
Configured before shipment


Physical:

Dimension

Main Part: L: 112mm*W: 65mm*H: 32mm

Weight

141g

Environment Temperature Range

-20℃ ～ 55℃

Environment Humidity Range

<90% RH  (No condensation)

Storage Temperature

-40℃ ～ 85℃
