Onset
12-Bit Temperature Smart Sensor
ALL PRICES DISPLAYED ARE EXCLUSIVE OF VAT.
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!

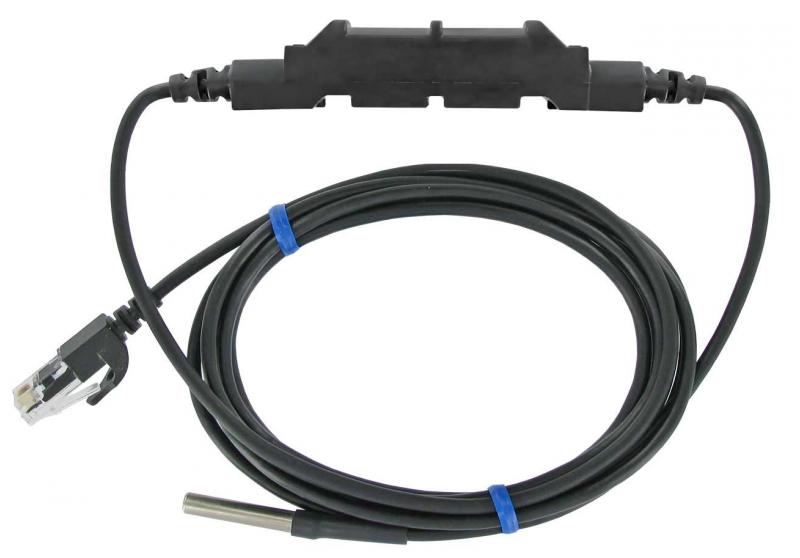

12-Bit Temperature Smart Sensor
2m Cable
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa
A 12-bit temperature Smart Sensor that provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of 0° to 50° C (32° to 122° F).
The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Available in cable lengths of 2 m, 6 m, and 17 m.
Also available in a wireless model for use with the HOBOnet Field Monitoring System
Documentation
Data SheetQuick Start Guide
Highlighted Features
- Measurement range of -40° to 100°C (-40° to 212°F)
- Stainless-steel sensor tip
- Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year
Applications
In what environment does this sensor operate?
This sensor operates in indoor, outdoor, and underwater environments.
What measurements does this sensor support?
The S-TMB-M002 sensor supports the following measurements: Temperature and Water Temperature
Specifications
| Specification | Detail |
|---|---|
| Measurement Range | -40° to 100°C (-40° to 212°F) – sensor tip |
| Accuracy | < ±0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F)* |
| Resolution | <0.03°C from 0° to 50°C (<0.054°F from 32° to 122°F) |
| Drift | <0.1°C (0.18°F) per year** |
| Response Time (to 90% of change) | - <2 minutes typical in 2 m/sec (4.5 mph) moving airflow |
| - <1 minute typical in a stirred water bath | |
| Environmental Operating Ranges | - Smart sensor adapter: -40° to 75°C (-40°F to 167°F); weatherproof, IP67 |
| - Stainless-steel sensor tip and cable jacket: Waterproof over the range of -40° to 50°C (-40°F to 122°F) for 1 year; operation up to 100°C (212°F) in air | |
| Housings | Stainless steel waterproof sensor tip; weatherproof polyamide housing for smart sensor adapter |
| Dimensions | Temperature probe: 5.0 x 26 mm (0.2 x 1.0 inches) |
| Weight | - 2 meters: 94 g (3.3 oz) |
| - 6 meter: 147 g (5.2 oz) | |
| - 17 meter: 318 g (11.2 oz) | |
| Bits per Sample | 12 |
| Number of Data Channels* | 1 |
| Measurement Averaging Option | Yes |

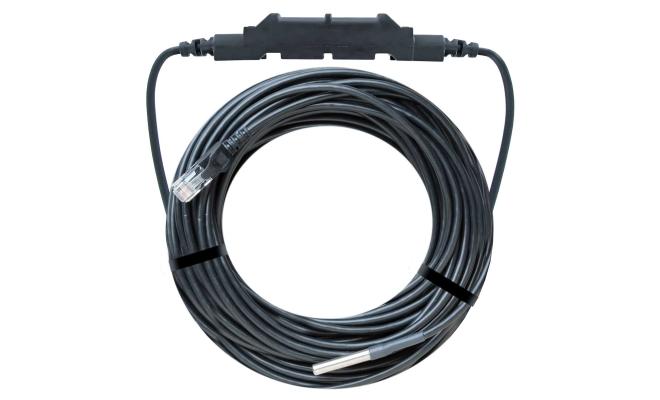

| Cable Lengths Available | - 2 m (6.6 ft) S-TMB-M002 |
| - 6 m (19.7 ft) S-TMB-M006 | |
| - 17 m (55.8 ft) S-TMB-M017 | |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) for all models |
