5-in-1 Compact Weather Sensor

Notice

As the product is nearing its EOL phase, we recommend considering the new version: S500-V2

What's the difference between SenseCAP ONE V2 and V1?

• Software function unchanged, V2 is fully compatible to replace V1.
• Partial performance optimization, such as wind measurement.
• The RS422/RS232 interface is deleted.

Today, data on localized weather, known as microclimates, is the new frontier for more precise and accurate weather forecasting. As a result, the collection of weather data is becoming increasingly smaller and gridded. In light of this, weather stations, which are the most convenient means of collecting weather data, are seeing a rise in demand.

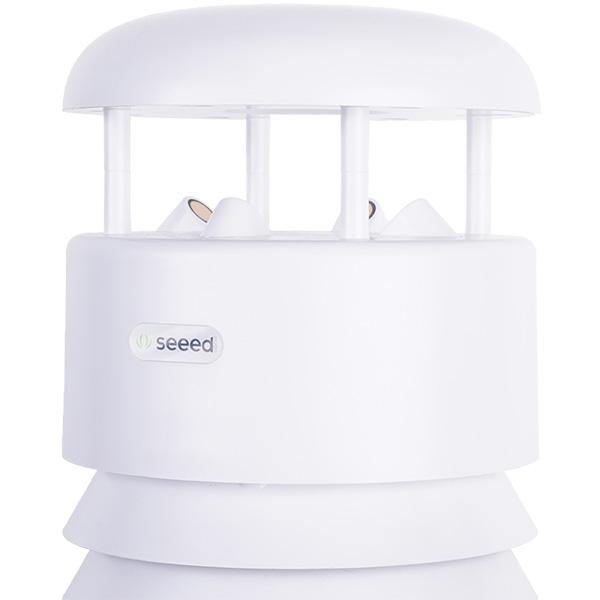

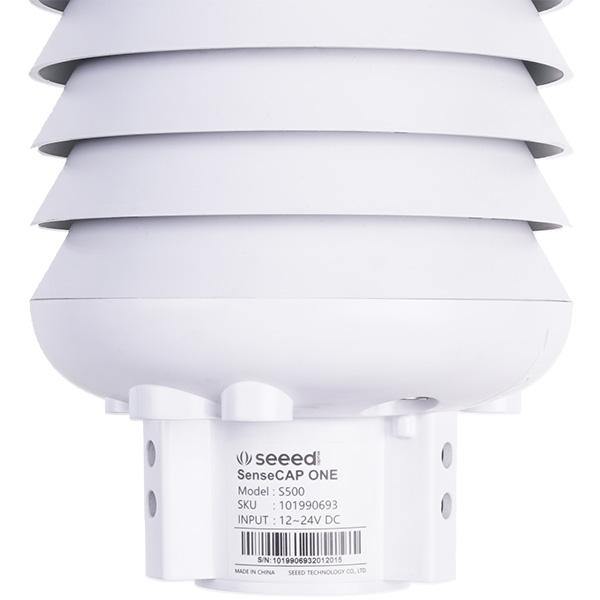

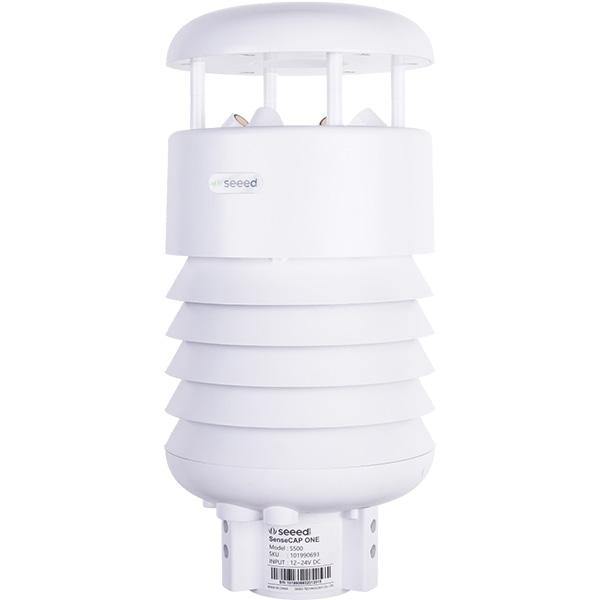

This SenseCAP ONE S500 5-in-1 Compact Weather Sensor can help you collect and monitor environmental and weather data, which are crucial in different application scenarios such as smart city projects and etc. The SenseCAP ONE S500 is equipped with sensors to measure the 5 parameters: air temperature, relative humidity, barometric pressure, wind speed, and wind direction.

SenseCAP ONE S500 is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.

The SenseCAP ONE series uses the RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12 communication protocol. Hence, the SenseCAP ONE compact weather sensor can be used with any data logger that supports RS 485 (MODBUS-RTU) / 232 / 422 (Modbus) / SDI-12.

We offer the SenseCAP S2100 LoRaWAN® Data Logger suitable for SenseCAP ONE series weather sensors. The data can be transmitted to the data logger and then to the public LoRaWAN® network server like Helium, TTN, etc.

We also provide the SenseCAP Sensor Hub 4G Data Logger (supporting solar power and DC wall power) that can be used with the SenseCAP ONE series weather sensor. The data can be transmitted to the Sensor Hub and then to the SenseCAP server or a private server. If you choose to use the SenseCAP server, we also provide an API for you to easily make your own applications.
