Onset
Air/Water/Soil Temp Sensor
ACCESSORIES ARE SOLD SEPARATELY.
NOT SURE WHAT TO ORDER? CONTACT US TODAY!
Select Cable Length:0.3 m
Quantity:
Pickup available at EUCA Head Office
Usually ready in 24 hours
Air/Water/Soil Temp Sensor
0.3 m
EUCA Head Office
Pickup available, usually ready in 24 hours
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

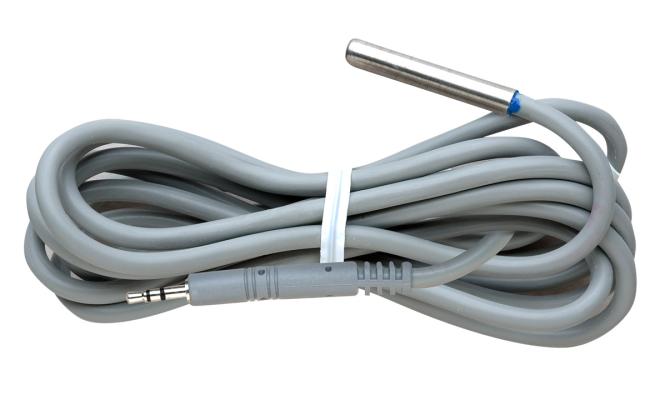

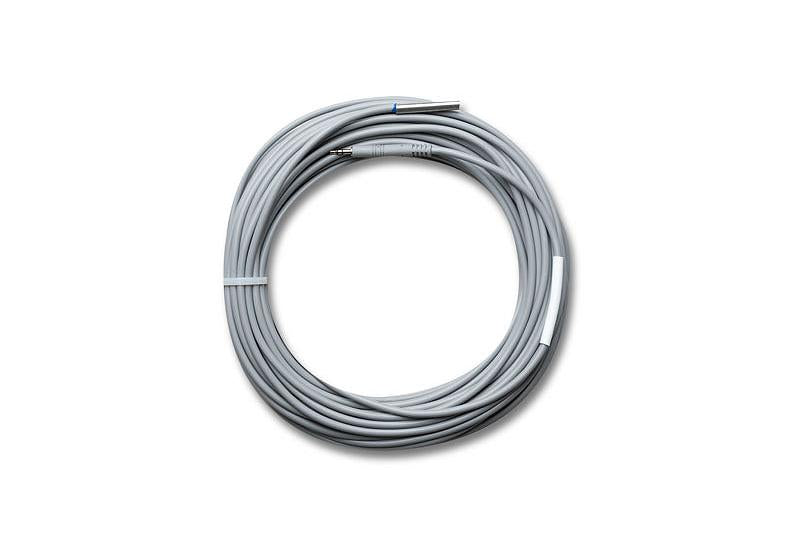

A temperature probe for use in air, soil, or water. Works with the HOBO UX120-006M, MX1100, ZW series, or U series data loggers. Probes are available in lengths of 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m (20 ft), and 15.2 m (50 ft).
Highlighted Features
- Accuracy and resolution vary according to the attached logger model
- Measurement range is -40° to 100°C (-40° to 212°F)
- Response time in the air: 2 min. typical to 90% in air moving 1 m/sec (2.2 mph)
- Response time in stirred water: 30 sec. typical to 90%
- The sensor is attached to a 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m (20 ft), or 15.2 m (50 ft) cable
Specifications
| Feature/Specification | Sensor Details |
|---|---|
| Measurement Range | -40° to 50°C (-40° to 122°F) in water -40° to 100°C (-40° to 212°F) in air |
| Accuracy |
|
| Resolution |
|
| Drift | <0.1°C (<0.2°F) per year |
| Response Time in Air | 2 min. typical to 90% in air moving 1 m/sec (2.2 mph) |
| Response Time in Stirred Water | 30 sec. typical to 90% |
| Operating Range | Sensor tip and cable immersion in fresh water up to +50°C (122°F) for 1 year |
| Housing | Copper-plated sensor tip |
| Dimensions | 5.1 x 33 mm (0.2 x 1.3 inches) |
Applications
In what environment does this sensor operate?
This sensor operates in indoor, outdoor, and underwater environments.
What measurements does this sensor support?
The TMC50-HD sensor supports the following measurements: Temperature and Water Temperature
