HOBOnet Manager Module
EUCA Head Office
Clearwater Office Park
Parkhaven, Block H Ground Floor
Boksburg
Gauteng
1459
South Africa

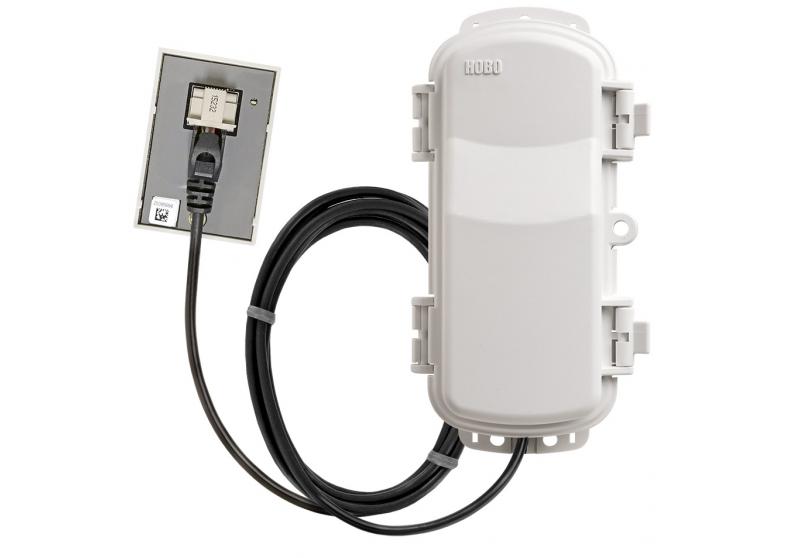

The HOBOnet Wireless Manager module is installed in an RX3000 station. Data is transmitted wirelessly from sensors across the network to the RX3000 station and then uploaded to HOBOlink, Onset’s innovative cloud-based software platform.
Highlighted Features
- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Plugs into RX3000 Flex Port
Applications
In what environment does this communication operate?- This communication operates in an outdoor environment.
Specifications
|
Operating Temperature Range |
-25° to 60°C (-13° to 140°F) |
|
Radio Power |
12.6 mW (+11 dBm) non-adjustable |
|
Transmission Range |
Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high |
|
Wireless Data Standard |
IEEE 802.15.4 |
|
Radio Operating Frequencies |
RXMOD-RXW-900: 904–924 MHz |
|
Modulation Employed |
OQPSK (Offset Quadrature Phase Shift Keying) |
|
Data Rate |
Up to 250 kbps, non-adjustable |
|
Duty Cycle |
<1% |
|
Maximum Number of Motes |
50 motes per one RX Wireless Sensor Network |
|
Power Source |
Powered by the RX3000 station |
|
Dimensions |

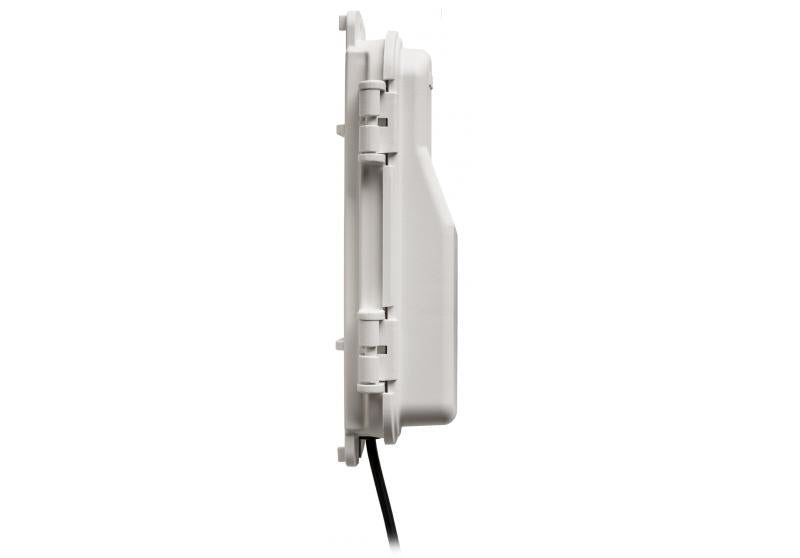

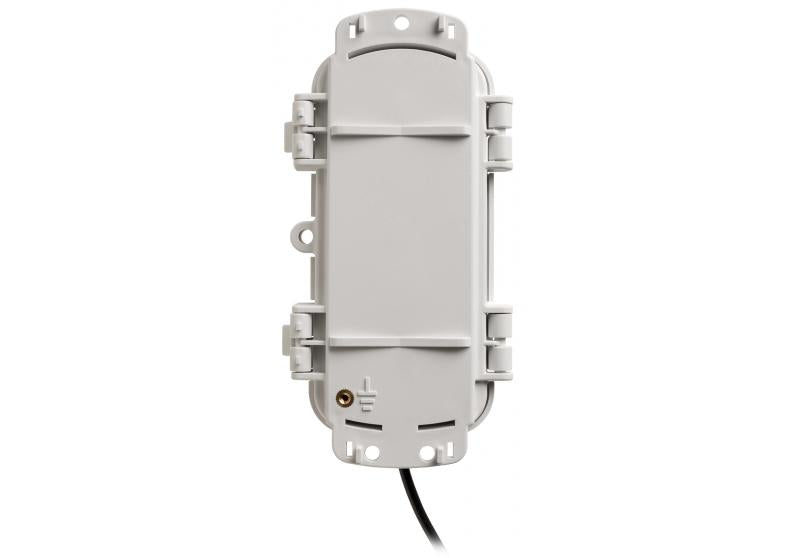

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches) |
|
Weight |
Mote: 159 g (5.62 oz) |
|
Materials |
Mote: PCPBT, silicone rubber seal |
|
Environmental Rating |
Mote: IP67, NEMA 6 |
Documentation
Quick Start GuideUser Manual
